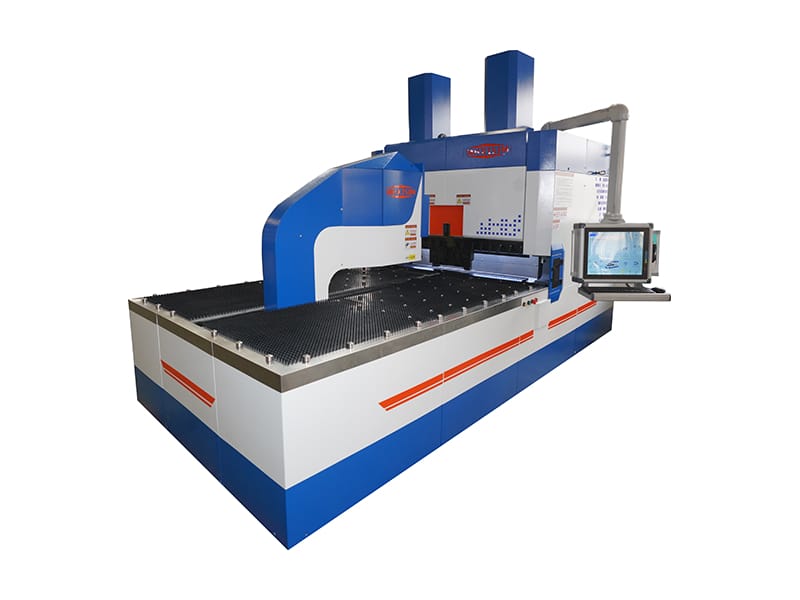

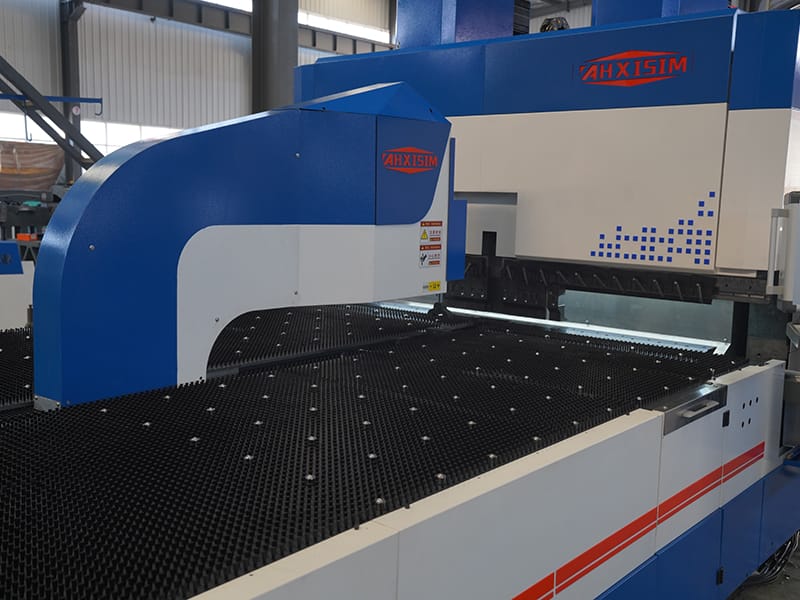

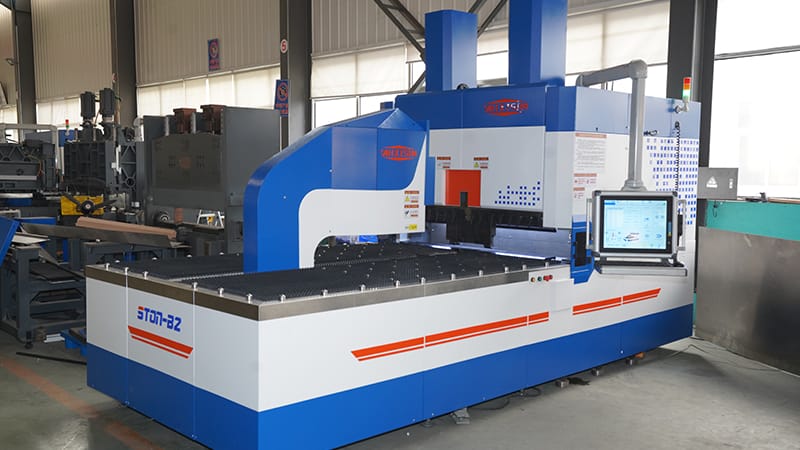

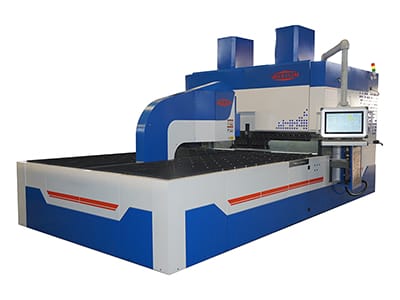

Fully Automatic Bending Center

The flexible bending center is designed to tackle complex sheet metal forming and bending challenges. Utilizing multi-axis parallel motion, it automates the entire bending process, eliminating reliance on manual labor and extensive tooling, significantly enhancing production efficiency while reducing costs.

This system easily handles curved, hemmed, and closed-shape bends, meeting the demands of intricate sheet metal applications.

The flexible bending center is widely used in industries such as steel cabinet enclosures (file cabinets, tool cabinets, protective covers, electrical cabinets, telecom enclosures, gas meter boxes, and water meter enclosures), kitchen appliances (refrigerators, air conditioners, stoves), furniture, ventilation, refrigeration, cleanroom doors, architectural doors, decorative materials (aluminum curtain walls), elevators, and other metal forming sectors.

Request a Quote PDF Download
Fully Automatic Bending Center
Bending Capabilities
Material Stainless steel, carbon steel, alloy steel, copper alloy, aluminum alloy
Length 100-3200
Width 10-1500
Thickness 0.5-20
Angle 0-180 degrees
Accuracy 0.1-0.3
Shapes complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds

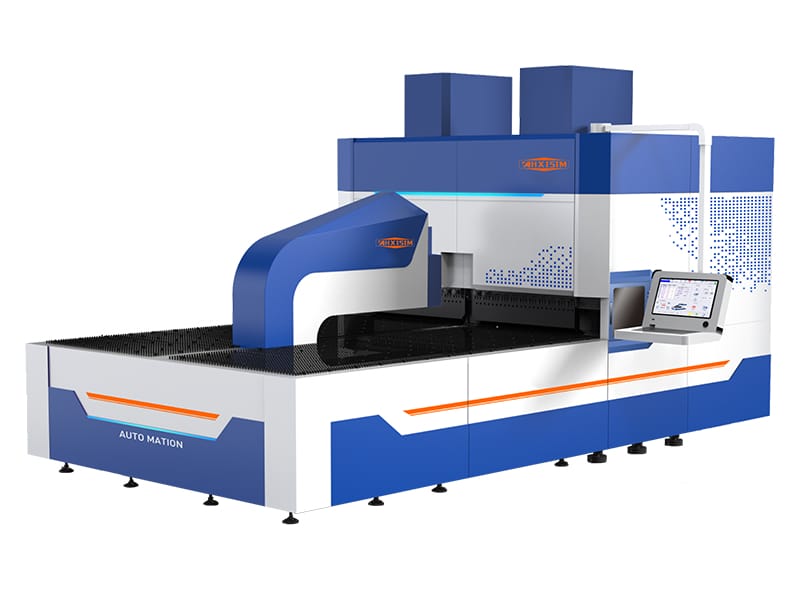

1.6m Bending Center
1.6m Bending Center

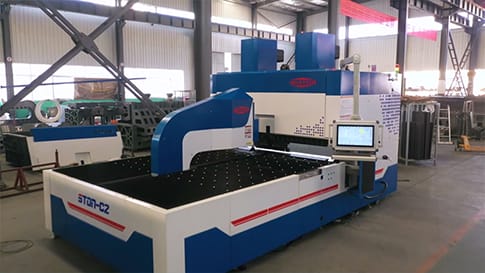

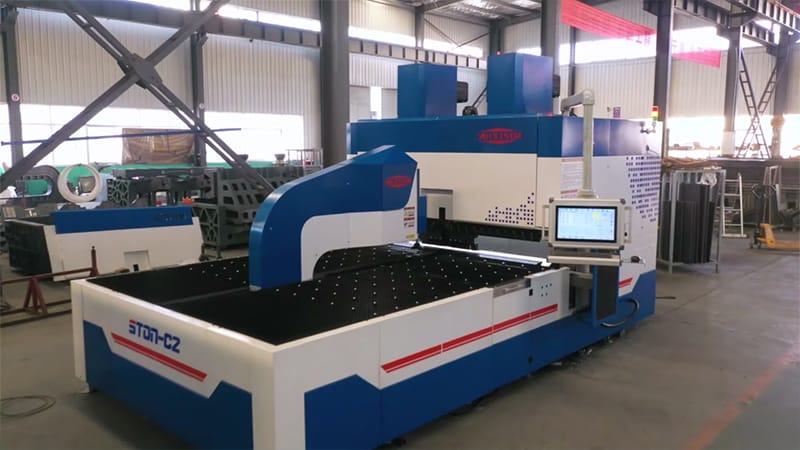

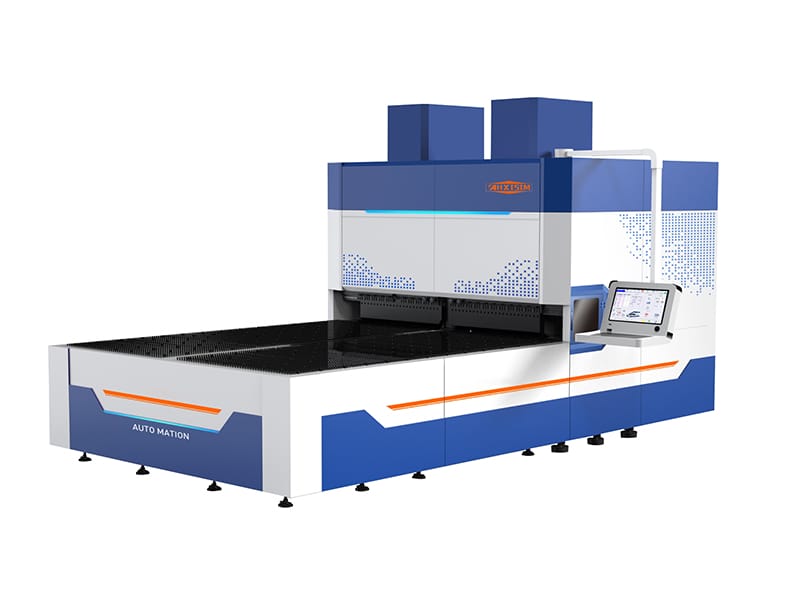

2m Bending Center
2m Bending Center

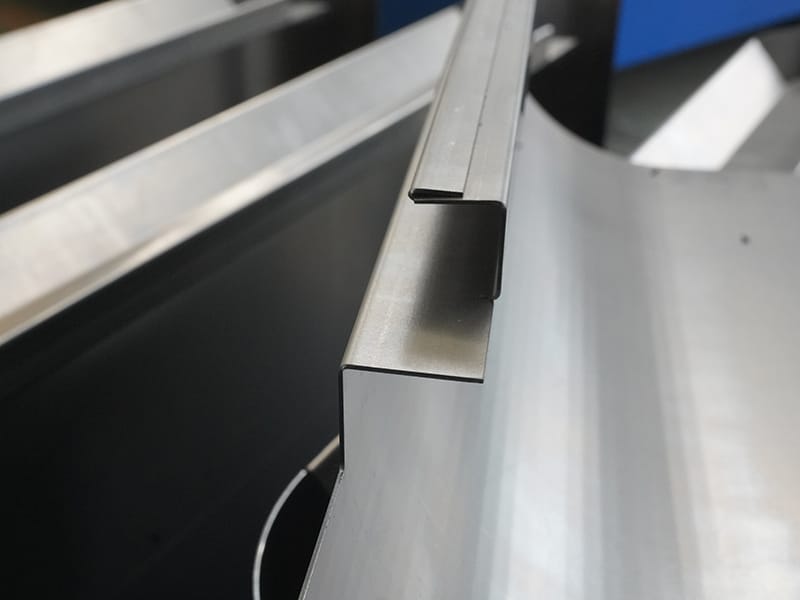

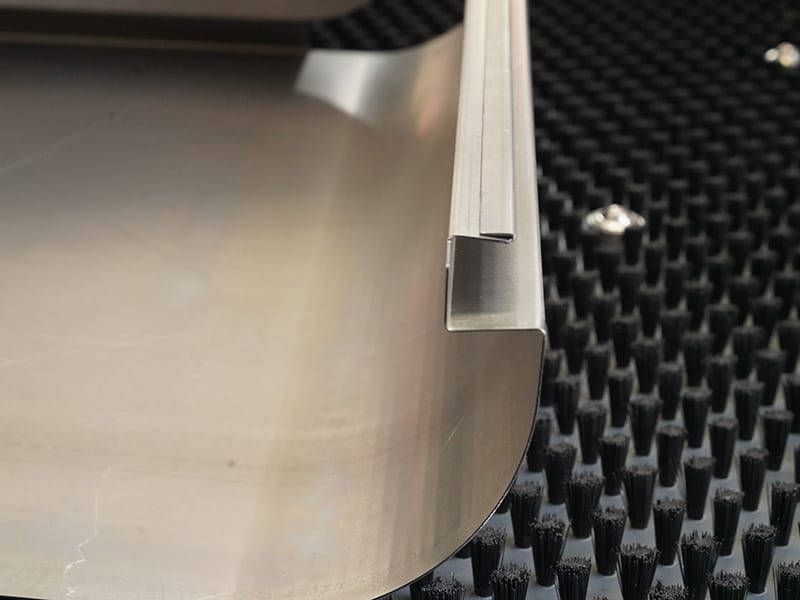

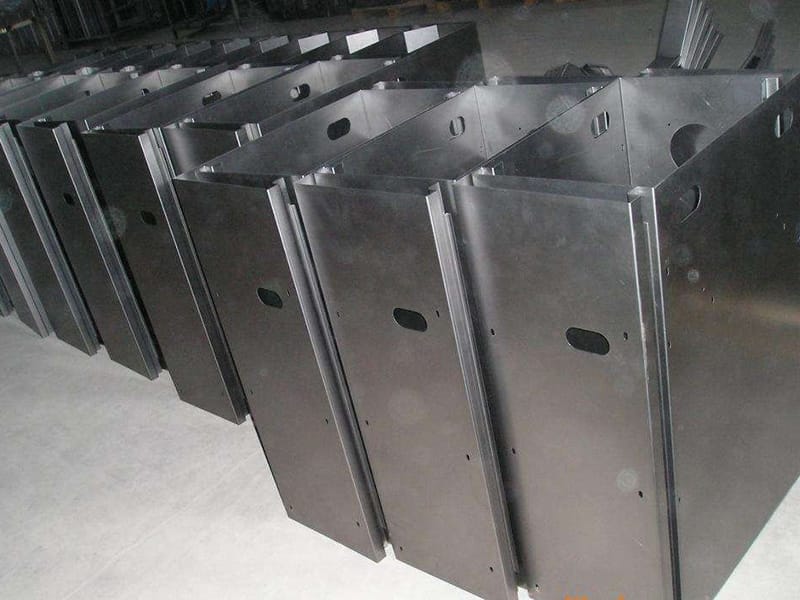

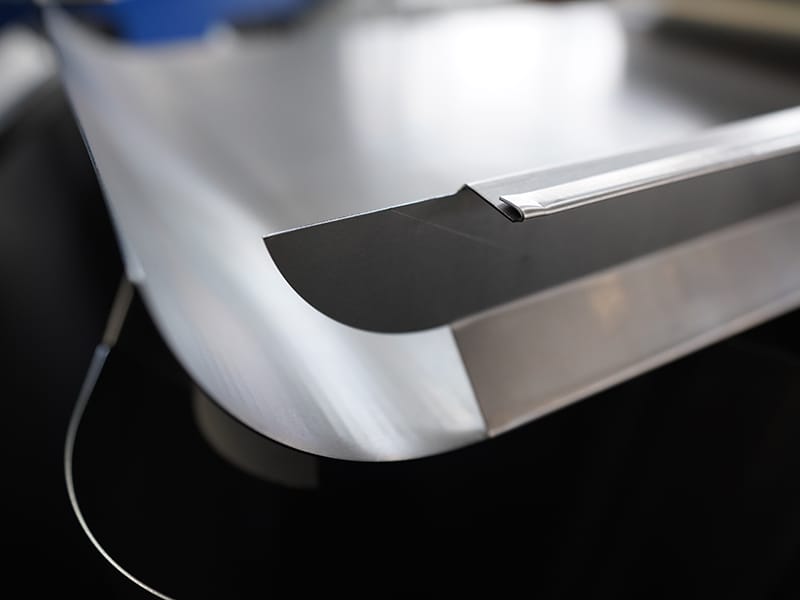

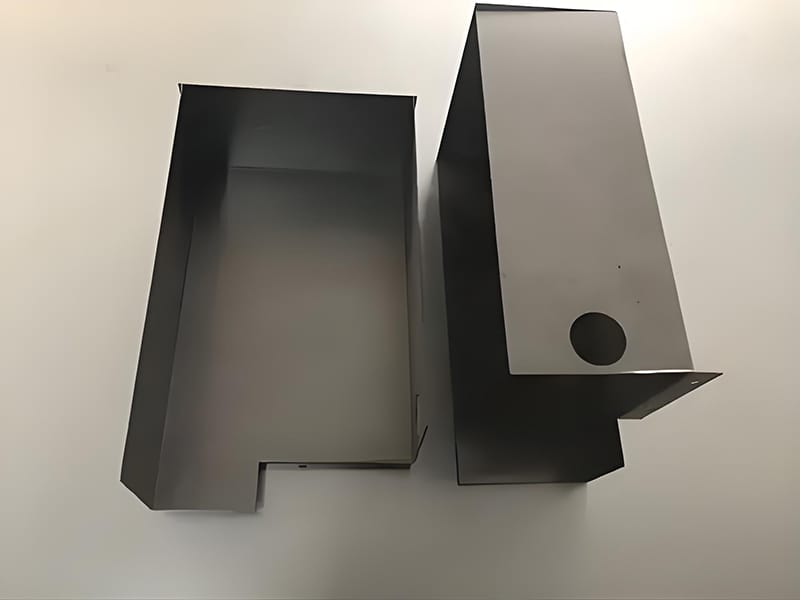

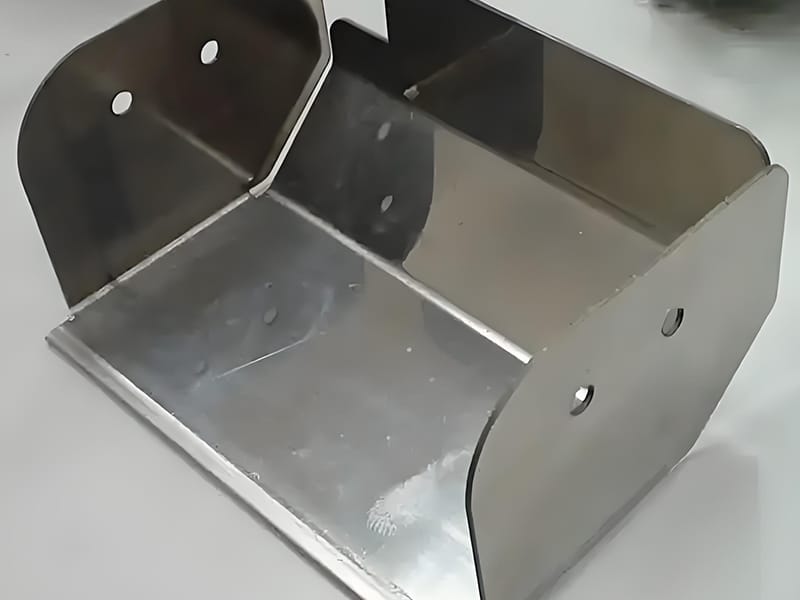

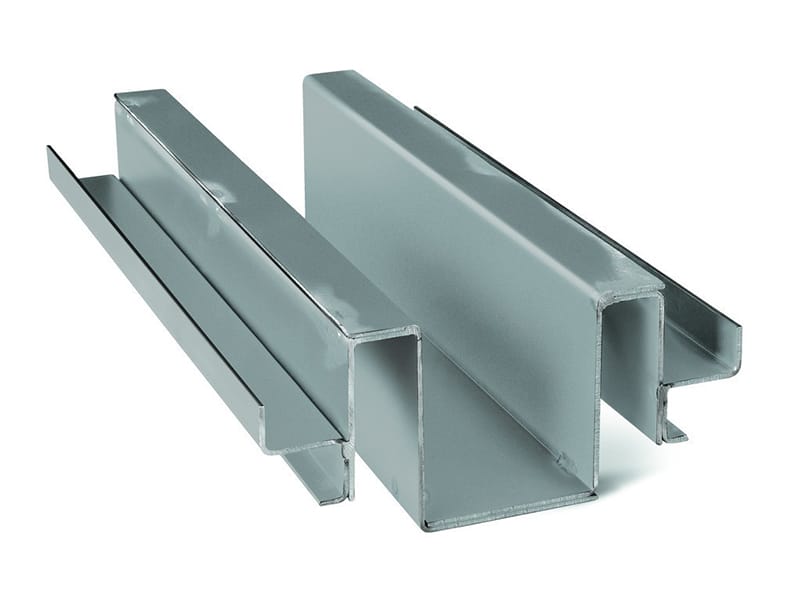

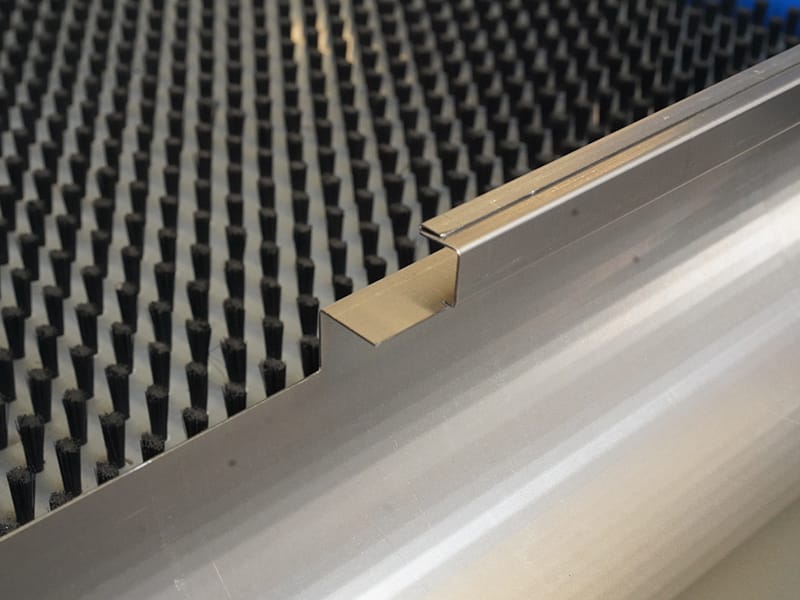

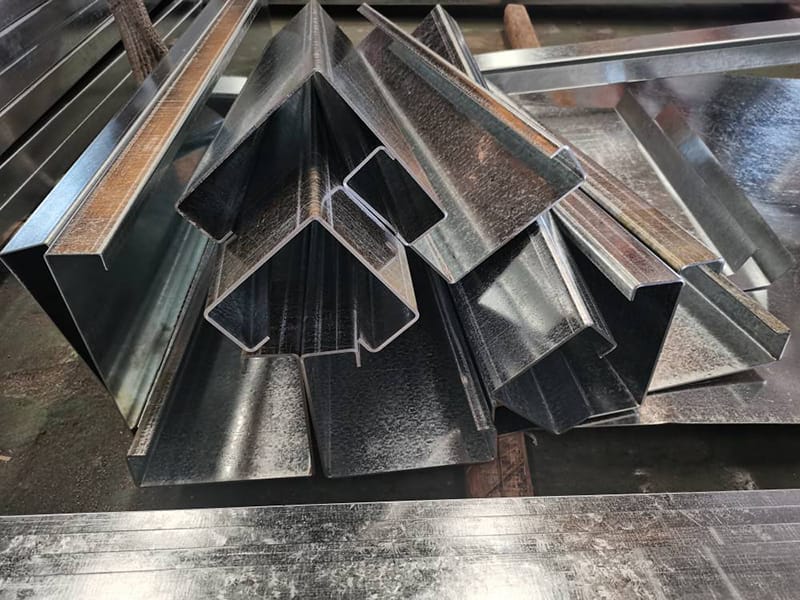

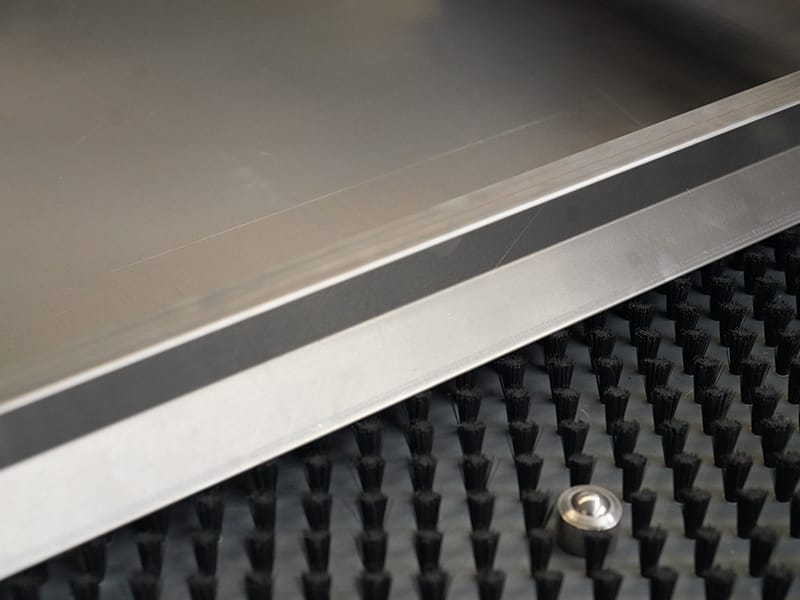

Bending Workpiece Display
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
Functions
  • Built on an Industry 4.0 architecture, the operating software enables seamless updates, ensuring fast processing, high workpiece consistency, low energy consumption, and minimal maintenance costs.
  • High automation level with a simple user interface, reducing dependency on operator skill level.
  • Eliminates the need for customized tooling like traditional press brakes by utilizing a universal mold system, allowing on-demand production of complex bends, including upward and downward right angles or non-standard angles.
  • Equipped with rich hardware and software interfaces, it seamlessly integrates with common industrial robotic arms, supporting various loading and unloading methods such as manual, gantry robots, and robotic arms.
  • The control system enables true 9-axis, 13-axis, or 15-axis simultaneous motion, ensuring smooth bending operations with high mechanical coordination.
  • Features off-center load detection, dynamic load balancing, and thick plate detection systems, protecting both the machine and workpieces while minimizing material waste.
  • A cloud-based remote maintenance system allows for real-time monitoring of machine operations.
  • For non-standard workpieces, it adjusts the positioning reference based on shape, effectively controlling sheet cutting deviations at the first bending edge, ensuring dimensional accuracy after forming.
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
Technical Parameters
Suction Cup Type Bending Center
Max. bending size (L*W) (cm) 100* 100 140* 125
Max. bending speed (s/bend) 0.2

0.2
Max. bending height (mm) 170/210 170/300
Min. bending thicess (mm) 0.15 0.15
Min. four-sided forming size (mm) 200*280 200*280
Single-sided forming (mm) 150 150
Rated voltage (V) 380 380
Max. bending thicess (mm) Stainless steel: 1.0
Carbon steel: 1.2
Aluminum: 1.5 		Stainless steel: 1.2
Carbon steel: 2.0
Aluminum: 2.5
Dimensions (L*W*H) (cm) 310* 150*280 350*200*280
Press Type Bending Center
Max. bending size (L*W) (cm) 100* 100 140* 125 160* 125 200* 150 250* 150 320* 150
Max. bending speed (s/bend) 0.2 0.2 0.2 0.3 0.5 0.6
Max. bending height (mm) 170/210 170/300 170/300 170/300 170/300 170/210
Min. bending thickness (mm) 0.15 0.15 0.15 0.15 0.15 0.15
Min. four-sided forming size (mm) 200*280 200*280 200*280 200*280 200*280 200*280
Single-sided forming (mm) 150 150 150 150 150 150
Rated voltage (V) 380 380 380 380 380 380
Max. bending thickness (mm) Stainless steel: 1.0
Carbon steel: 1.2 Aluminum: 1.5 		Stainless steel: 1.2 Carbon steel: 2.0 Aluminum: 2.5 Stainless steel: 1.2 Carbon steel: 2.0 Aluminum: 2.5 Stainless steel: 1.2 Carbon steel: 2.0 Aluminum: 2.5 Stainless steel: 1.2 Carbon steel: 2.0 Aluminum: 2.5 Stainless steel: 1.2 Carbon steel: 2.0 Aluminum: 2.5
Dimensions (L*W*H) (cm) 310* 150*280 450*200*280 450*250*280 510*270*280 570*310*280 700*380*280
Features
    • Fully Automatic Bending Center
      High Precision

      Achieves bending accuracy of up to 0.1° and bending length accuracy of 0.1mm, meeting high-end manufacturing requirements and improving product quality.

    • Fully Automatic Bending Center
      Strong Adaptability

      Capable of bending various materials and thicknesses, with adjustable depth and angle, allowing for customized processing needs.

    • Fully Automatic Bending Center
      Multi-Angle & Variable Curvature Bending

      The flexible bending center supports multi-angle and multi-curvature bending, accommodating complex shape requirements.

    • Fully Automatic Bending Center
      Easy Maintenance

      Features a modular design, making maintenance and servicing simple and cost-effective.

    • Fully Automatic Bending Center
      High Automation

      Equipped with automated feeding and unloading systems, reducing manual labor, minimizing workload, and improving production efficiency.

    • Fully Automatic Bending Center
      User-Friendly Interface

      Designed with an intuitive and easy-to-use control interface, simplifying operation and reducing the learning curve.

    • Fully Automatic Bending Center
      Customizable Solutions

      Offers tailor-made flexible bending centers and service solutions based on specific customer requirements.

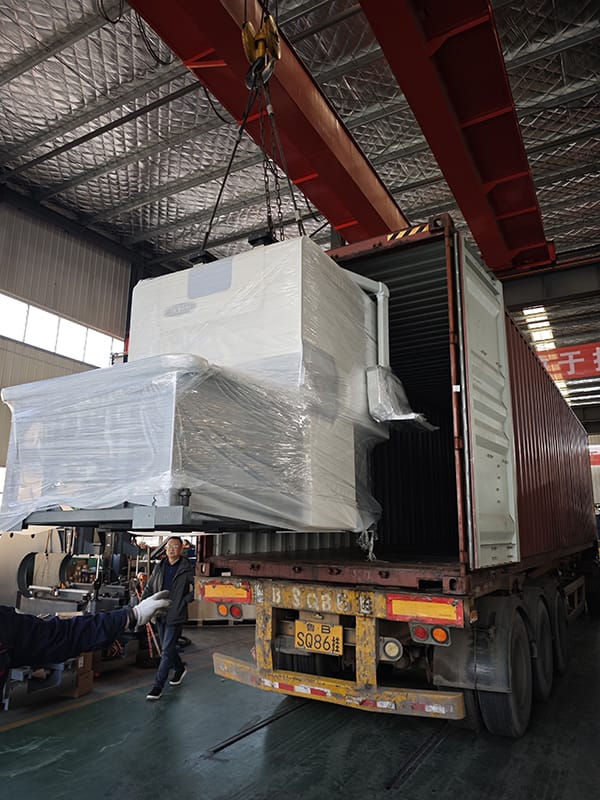

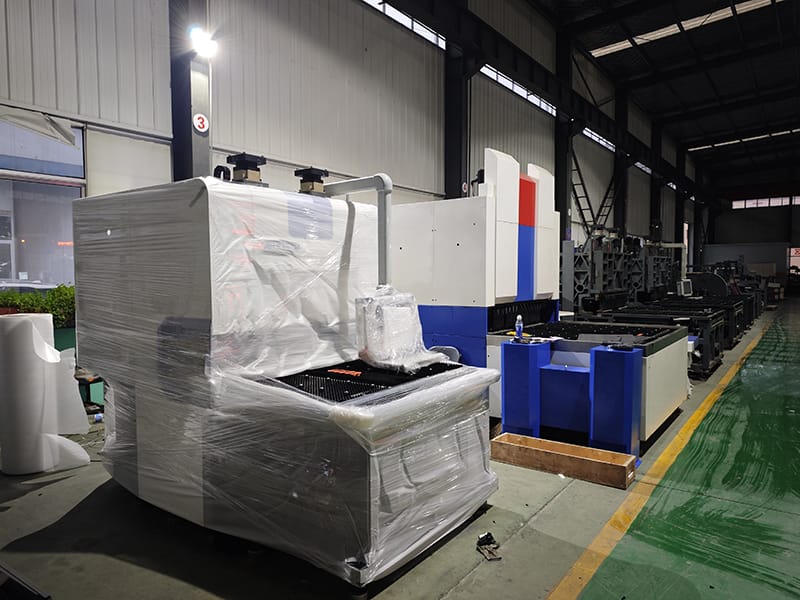

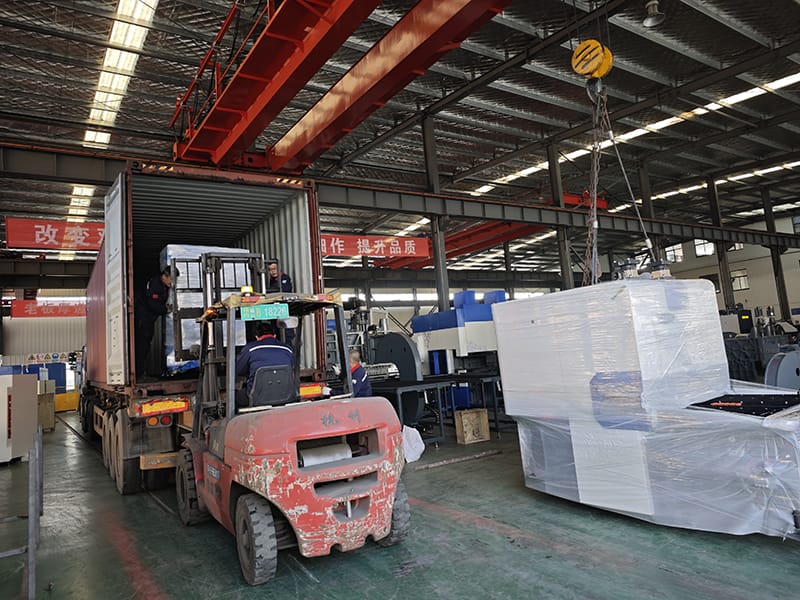

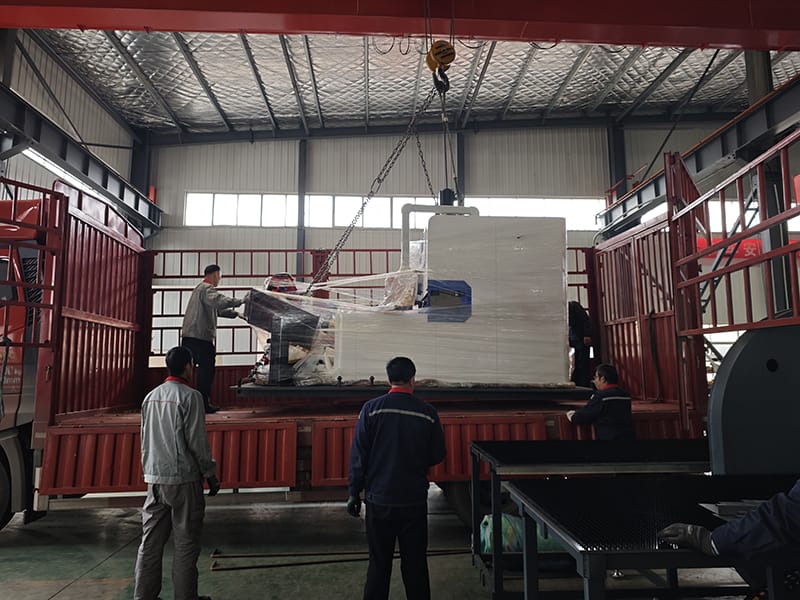

Delivery
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
  • Fully Automatic Bending Center
