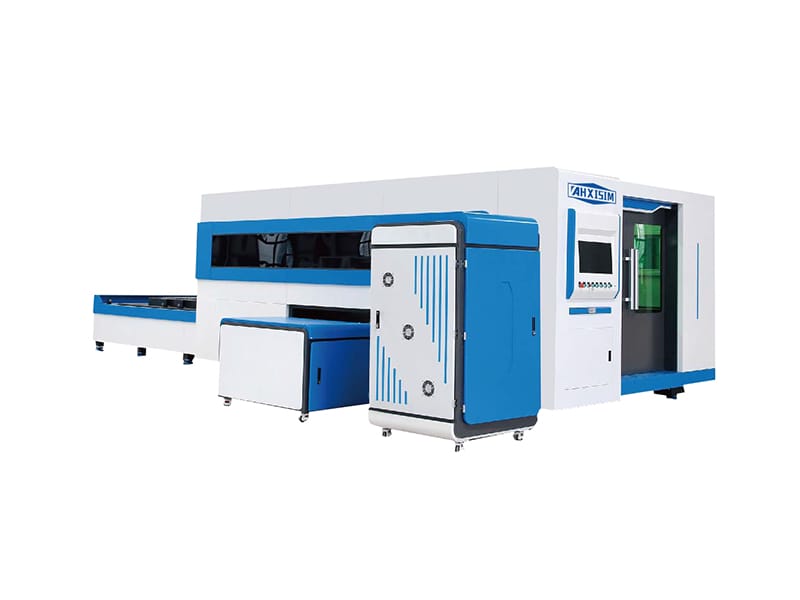

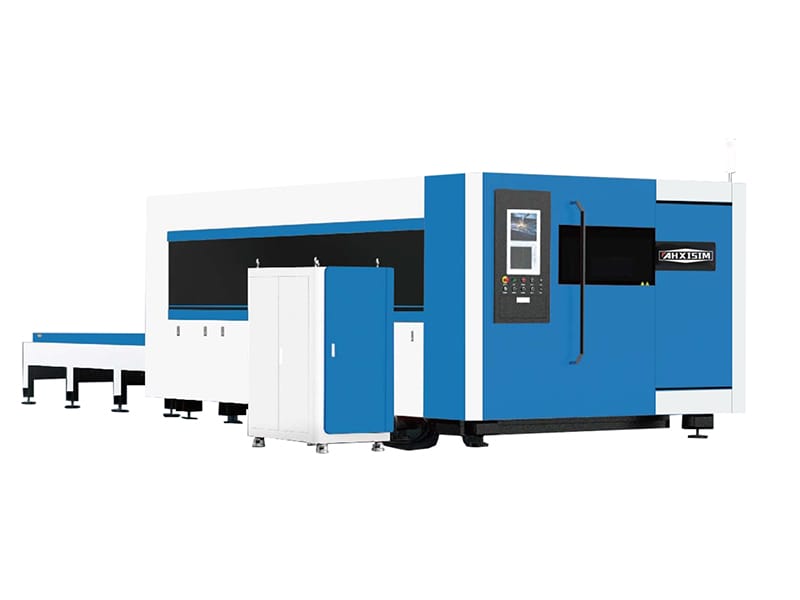

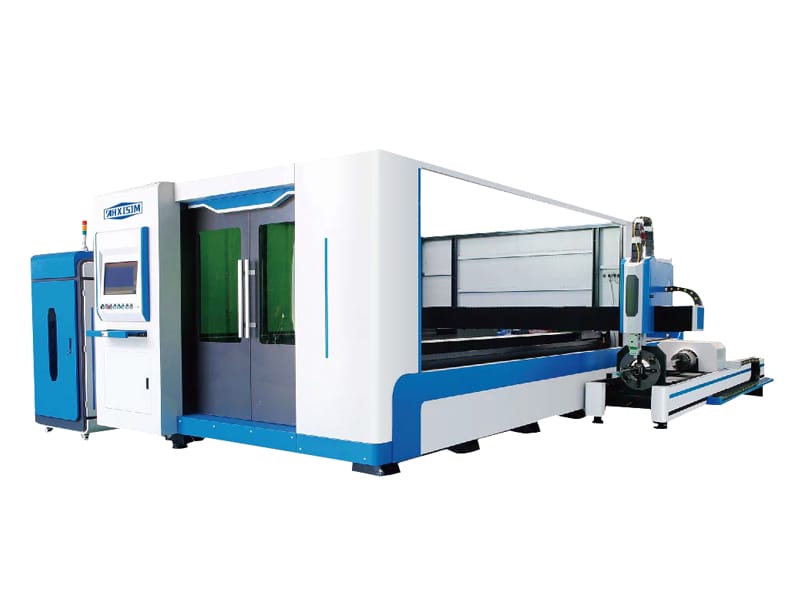

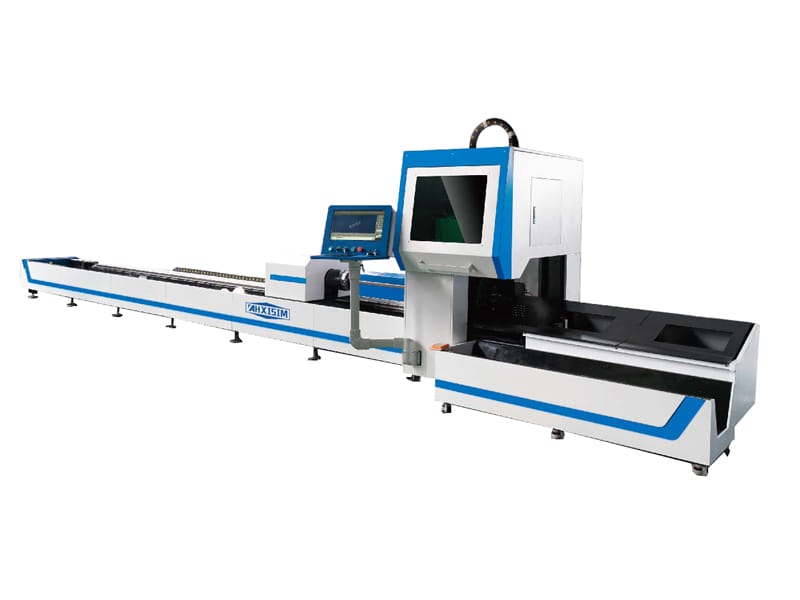

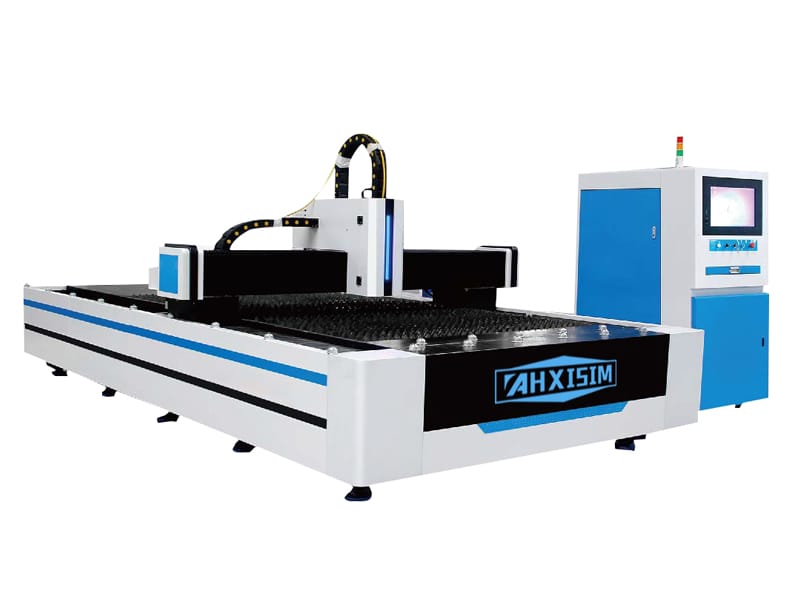

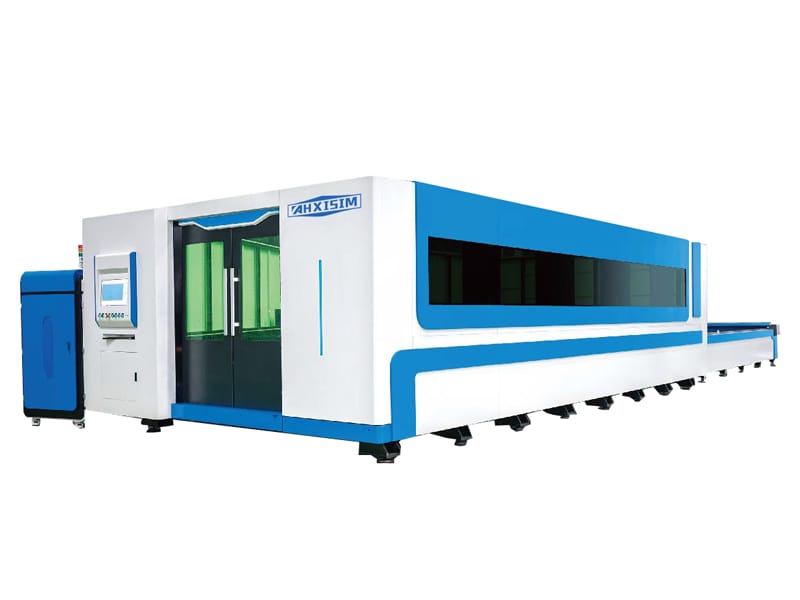

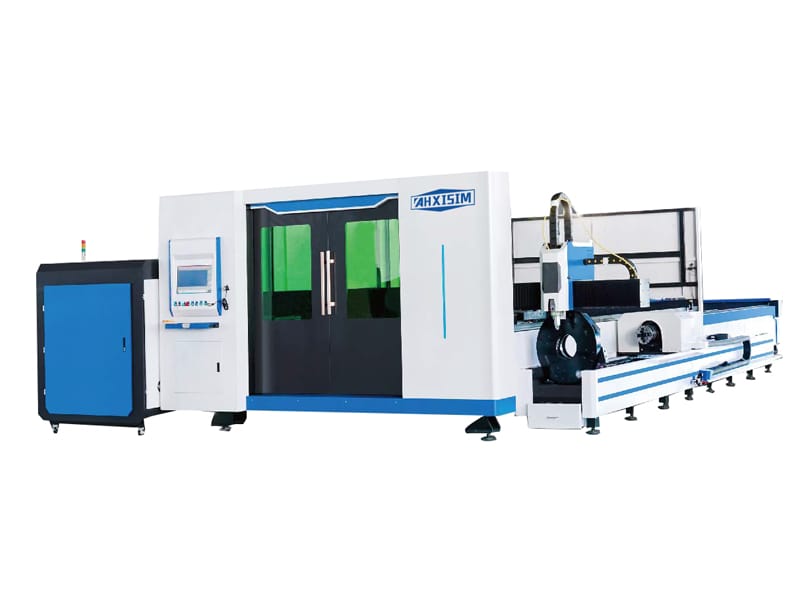

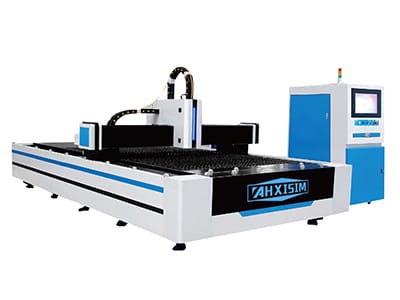

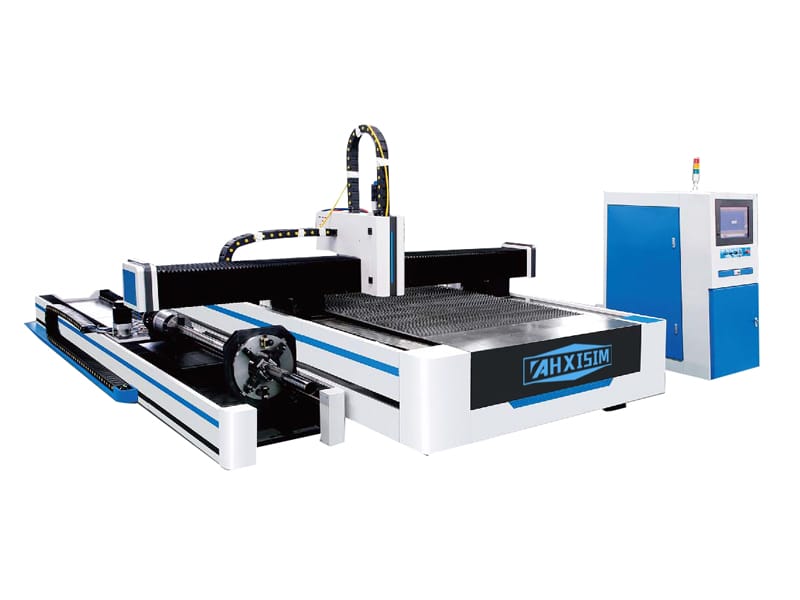

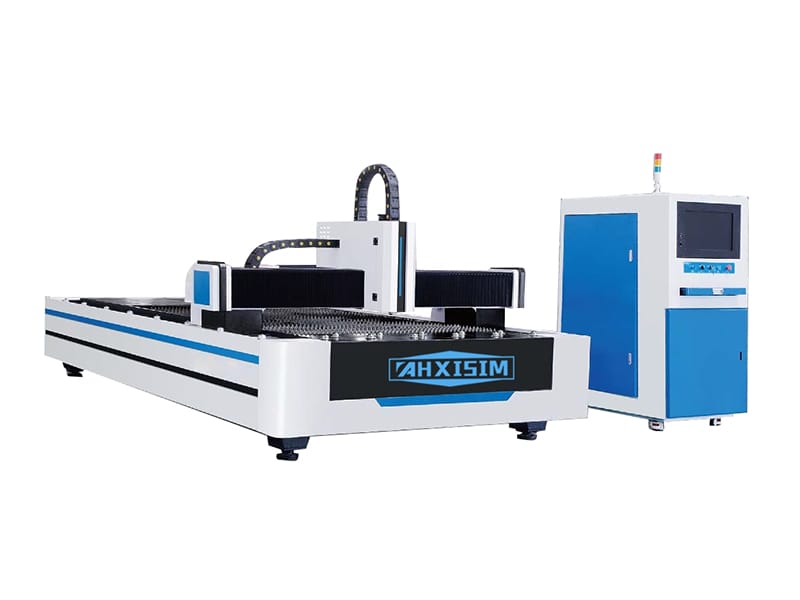

Laser Cutting Machine

Laser Cutting Machine

We offer a wide range of laser cutting machines, catering to diverse industries such as sheet metal manufacturing, automotive parts, hardware tools, sports equipment, advertising and decoration, medical devices, kitchen and bathroom fixtures, precision instruments, mobile and fiber-optic communications, aerospace components, craft and gift production, packaging and printing, and agricultural machinery.

Bending Capabilities

Structural steel, stainless steel, aluminum, titanium, copper and brass, composite materials

Request a Quote PDF Download

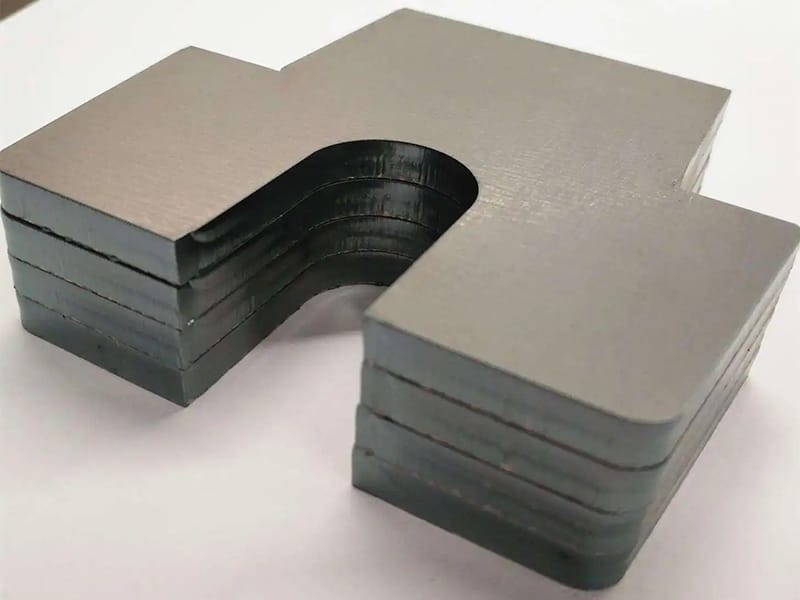

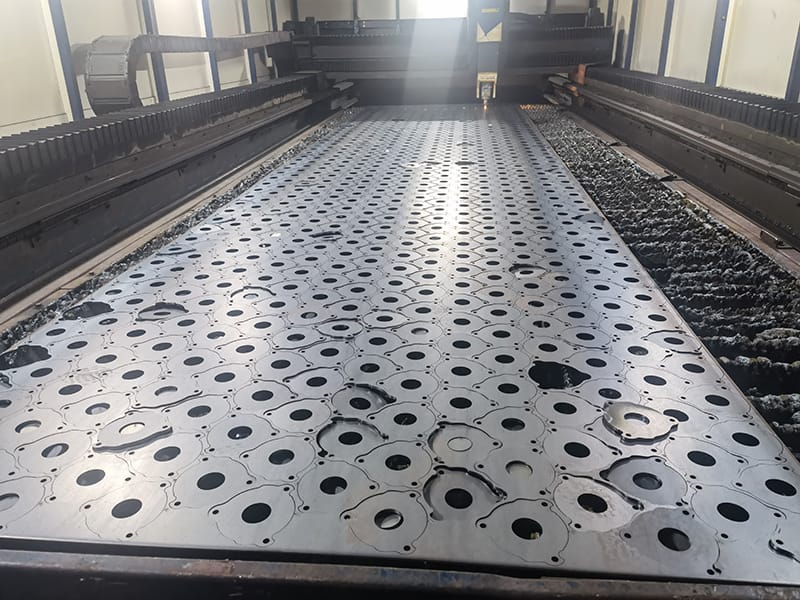

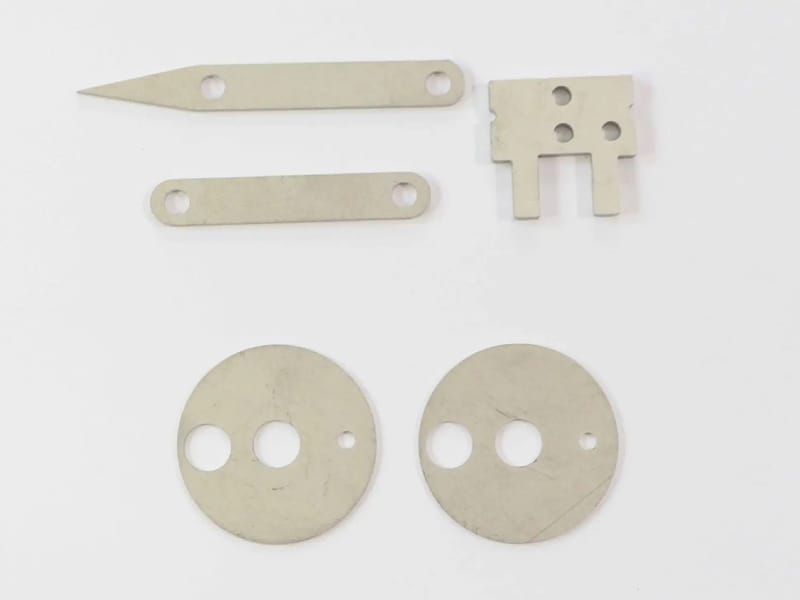

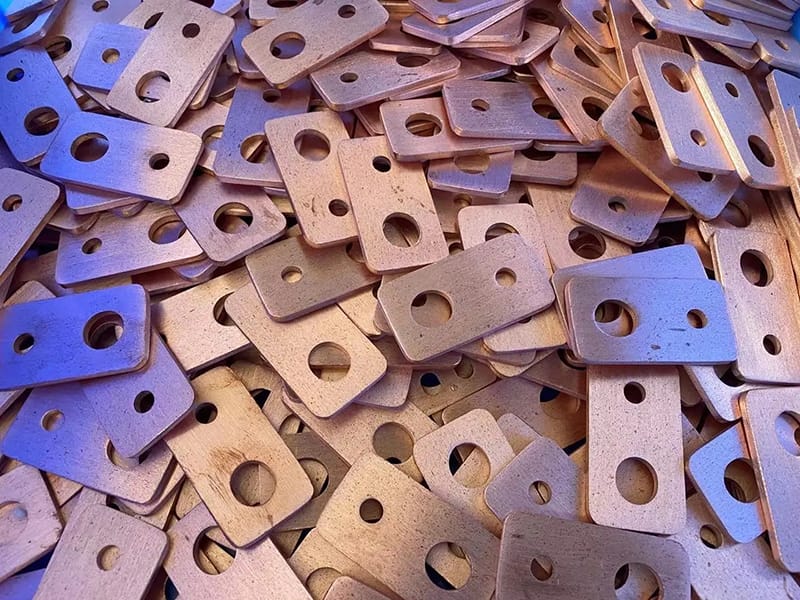

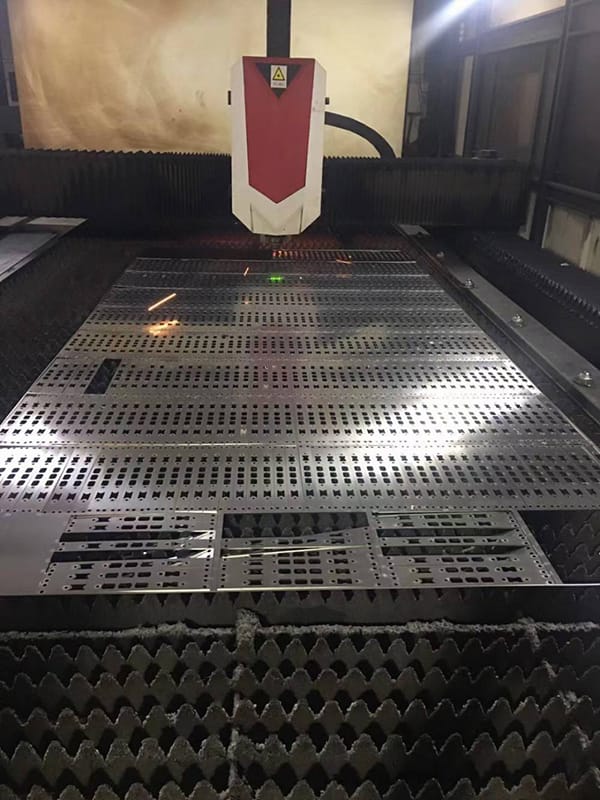

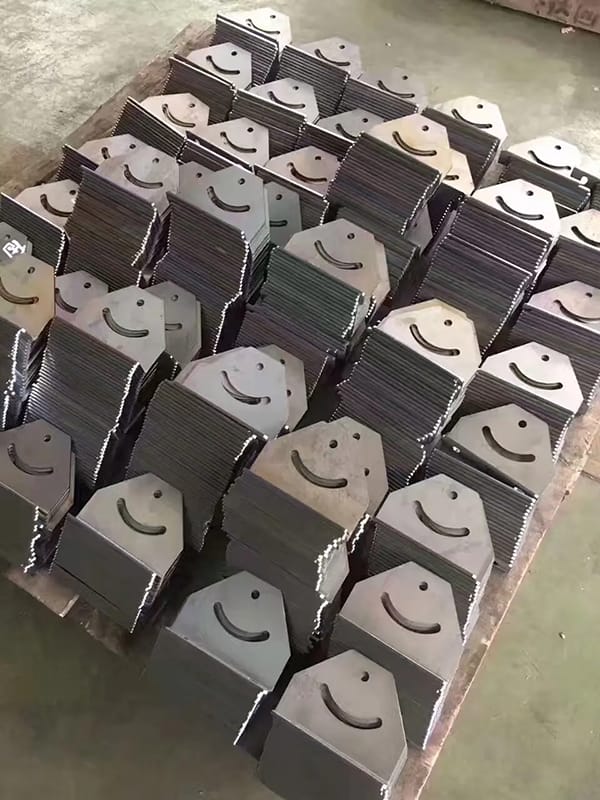

Examples of Our Processed Sheet Metal Products

Technical Parameters

1500W Laser Cutting Machine
Material	Thickness (mm)	Speed (m/ min)	Power (W)	Assist gas	Air pressure (bar)	Nozzle aperture (mm)	Focus position (mm)	Cutting height (mm)
Carbon steel	1	20	1500	N₂/ Air	10	1.5	0	1
	2	5	1500	O₂	2	1.2	+3	0.8
	3	3.6	1500	O₂	0.6	1.2	+3	0.8
	4	2.5	1500	O₂	0.6	1.2	+3	0.8
	5	1.8	1500	O₂	0.6	1.2	+3	0.8
	6	1.4	1500	O₂	0.6	1.5	+3	0.8
	8	1.2	1500	O₂	0.6	1.5	+3	0.8
	10	1	1500	O₂	0.6	2.0	+2.5	0.8
	12	0.8	1500	O₂	0.6	2.5	+2.5	0.8
	14	0.65	1500	O₂	0.6	3.0	+2.5	0.8
	16	0.5	1500	O₂	0.6	3.0	+2.5	0.8
Stainless steel	1	20	1500	N₂	10	1.5	0	0.8
	2	7	1500	N₂	12	2.0	-1	0.5
	3	4.5	1500	N₂	12	2.5	-1.5	0.5
	5	1.5	1500	N₂	14	3.0	-2.5	0.5
	6	0.8	1500	N₂	16	3.0	-3	0.5
Aluminum	1	18	1500	N₂	12	1.5	0	0.5
	2	6	1500	N₂	14	2.0	-1	0.5
	3	2.5	1500	N₂	14	2.5	-1.5	0.5
	4	0.8	1500	N₂	16	3.0	-2	0.5

2000W Laser Cutting Machine
Material	Thickness (mm)	Speed (m/min)	Power (W)	Assist Gas	Air Pressure (bar)	Nozzle Aperture (mm)	Focus Position (mm)	Cutting Height (mm)
Carbon steel	1	25	2000	N₂/	10	1.5	0	1
	2	9	2000	Air	10	2	-1	0.5
	2	5.2	2000	O₂	1.6	1	3	0.8
	3	4.2	2000	O₂	0.6	1	3	0.8
	4	3	2000	O₂	0.6	1	3	0.8
	5	2.2	2000	O₂	0.6	1.2	3	0.8
	6	1.8	2000	O₂	0.6	1.2	3	0.8
	8	1.3	2000	O₂	0.5	2	2.5	0.8
	10	1.1	2000	O₂	0.5	2	2.5	0.8
	12	0.9	2000	O₂	0.5	2.5	2.5	0.8
	14	0.8	2000	O₂	0.5	3	2.5	0.8
	16	0.7	2000	O₂	0.6	3.5	2.5	0.8
	18	0.5	2000	O₂	0.6	4	3	0.8
	20	0.4	2000	O₂	0.6	4	3	0.8
Stainless steel	1	28	2000	N₂	10	1.5	0	0.8
	2	10	2000	N₂	12	2	-1	0.5
	3	5	2000	N₂	12	2	-1.5	0.5
	4	3	2000	N₂	14	2.5	-2	0.5
	5	2	2000	N₂	14	3	-2.5	0.5
	6	1.5	2000	N₂	14	3	-3	0.5
	8	0.6	2000	N₂	16	3	-4	0.5
Aluminum	1	20	2000	N₂	12	1.5	0	0.8
	2	10	2000	N₂	12	2	-1	0.5
	3	4	2000	N₂	14	2	-1.5	0.5
	4	1.5	2000	N₂	14	2.5	-2	0.5
	5	0.9	2000	N₂	16	3	-2.5	0.5
	6	0.6	2000	N₂	16	3	-3	0.5

3000W Laser Cutting Machine
Material	Thickness (mm)	Speed (m/min)	Power (W)	Assist Gas	Air Pressure (bar)	Nozzle Aperture (mm)	Focus Position (mm)	Cutting Height (mm)
Carbon steel	1	35	3000	N₂/	10	1.5	0	1
	2	20	3000	Air	10	2	0	0.5
	2	5.5	1200	O₂	1.6	1	3	0.8
	3	4	2000	O₂	0.6	1	4	0.8
	4	3.5	2400	O₂	0.6	1	4	0.8
	5	3.2	2400	O₂	0.6	1.2	4	0.8
	6	2.7	3000	O₂	0.6	1.2	4	0.8
	8	2.2	3000	O₂	0.6	1.2	4	0.8
	10	1.5	3000	O₂	0.6	1.2	4	0.8
	12	1	2400	O₂	0.6	3	4	0.8
	14	0.9	2400	O₂	0.6	3	4	0.8
	16	0.75	2400	O₂	0.6	3.5	4	0.8
	18	0.65	2400	O₂	0.6	4	4	0.8
	20	0.6	2400	O₂	0.6	4	4	0.8
	22	0.55	2400	O₂	0.6	4	4	0.8
Stainless steel	1	45	3000	N₂	10	1.5	0	0.8
	2	24	3000	N₂	12	2	0	0.5
	3	10	3000	N₂	12	2.5	-0.5	0.5
	4	6.5	3000	N₂	14	2.5	-1.5	0.5
	5	3.6	3000	N₂	14	3	-2.5	0.5
	6	2.7	3000	N₂	14	3	-3	0.5
	8	1.2	3000	N₂	16	3.5	-4.5	0.5
	10	0.8	3000	N₂	16	4	-6	0.5
Aluminum	1	30	3000	N₂	12	1.5	0	0.8
	2	18	3000	N₂	12	2	0	0.5
	3	8	3000	N₂	14	2	-1	0.5
	4	6	3000	N₂	14	2.5	-2	0.5
	5	3.2	3000	N₂	16	3	-3	0.5
	6	2	3000	N₂	16	3	-3.5	0.5
	8	0.9	3000	N₂	16	3.5	-4	0.5

Features

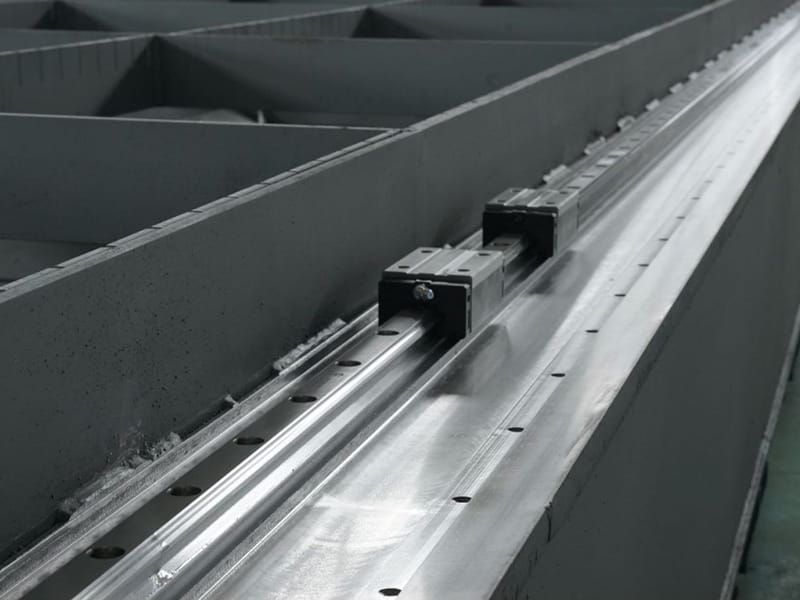

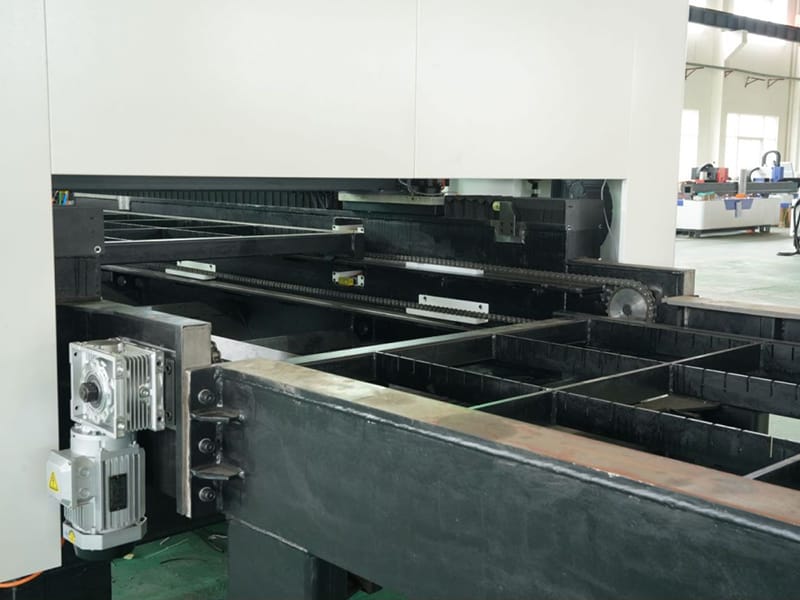

Machine Components
