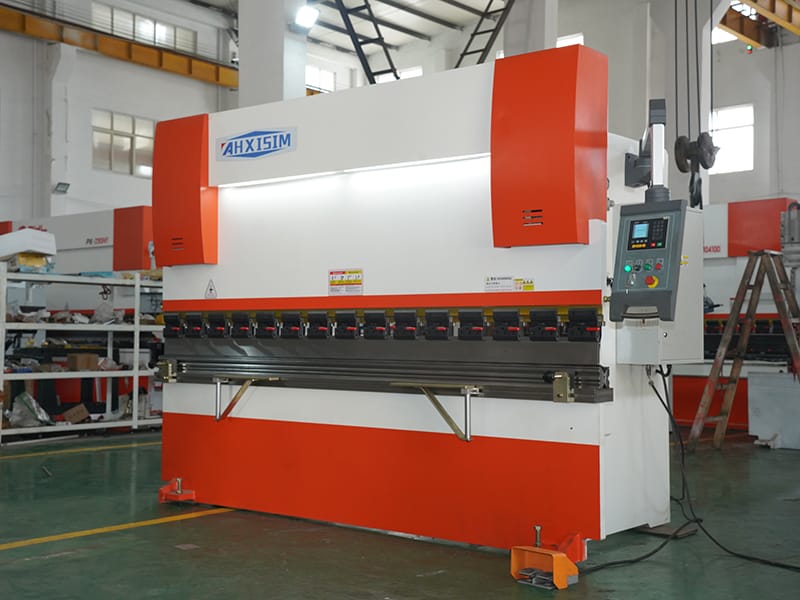

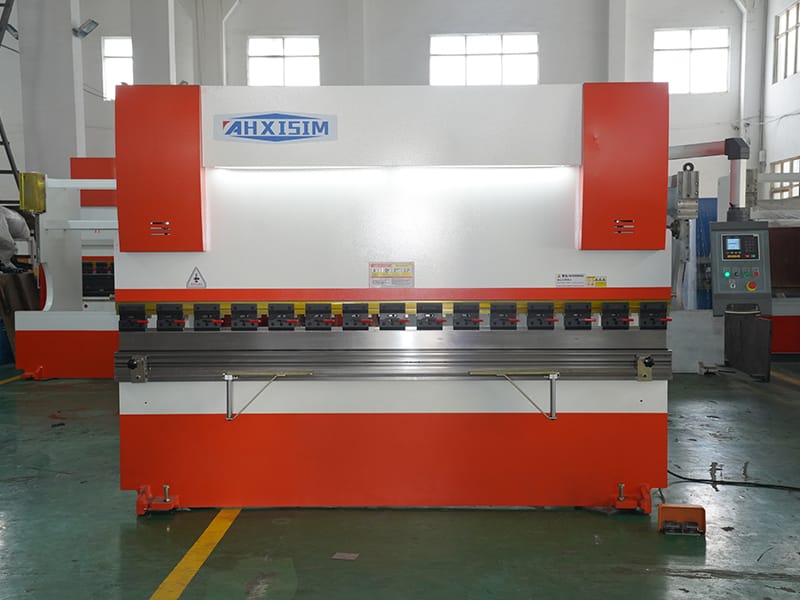

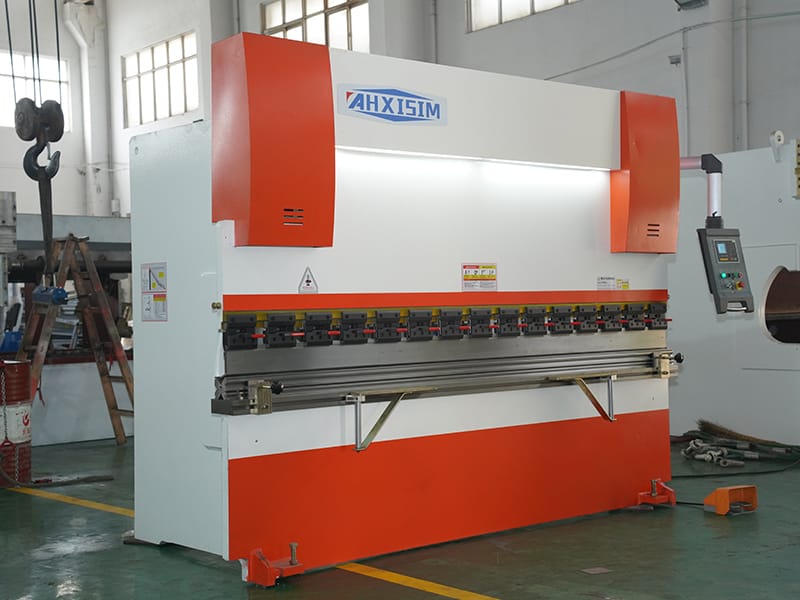

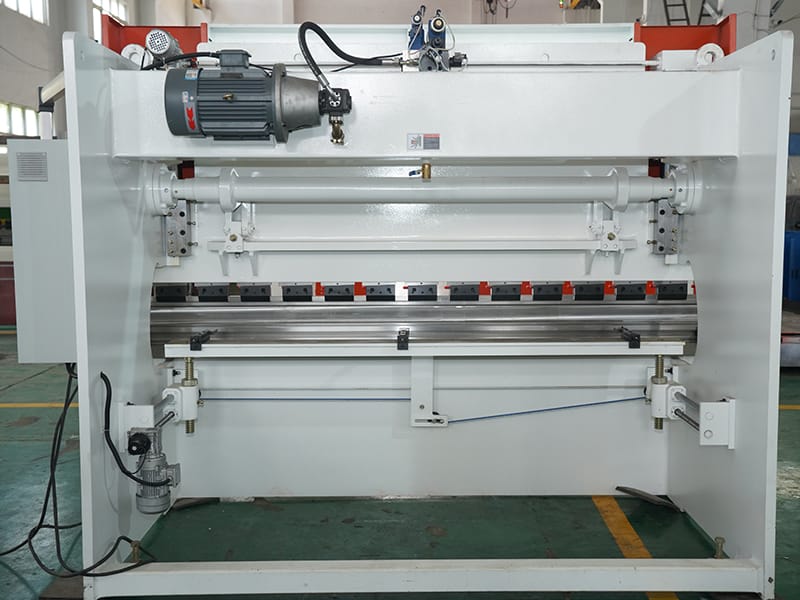

Torsion Bar Press Brake, E21

The NC press brake connects the left and right swing arms through the torsion axis to create a synchronized mechanism. This allows the oil cylinders on both sides to move up and down, which in turn makes the slider move in a synchronized way. The NC press brake has been used a lot in the metal processing industry because it's precise, stable, and cost-effective. It's also highly automated.

Bending Capabilities
Material Carbon steel, alloy steel, aluminum alloy, copper alloy, high-speed steel, carbide alloy
Length 10-6000
Width 10-1500
Thickness 0.5-20
Angle 0-180 degrees
Accuracy 0.1-0.3mm
Shapes V Shape, U Shape, Z Shape, L Shape
Request a Quote

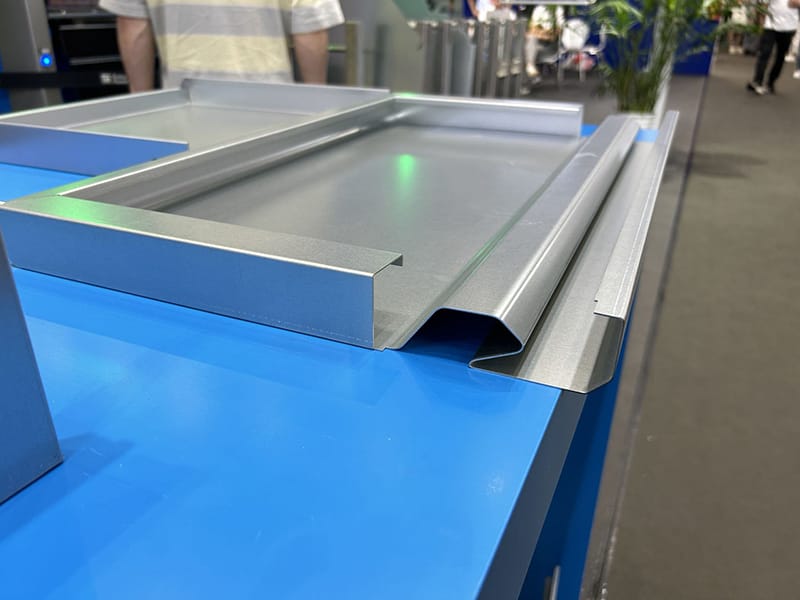

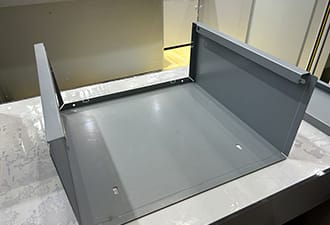

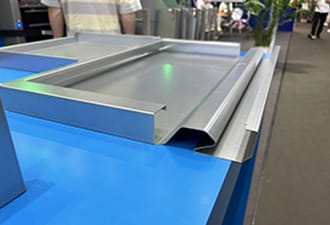

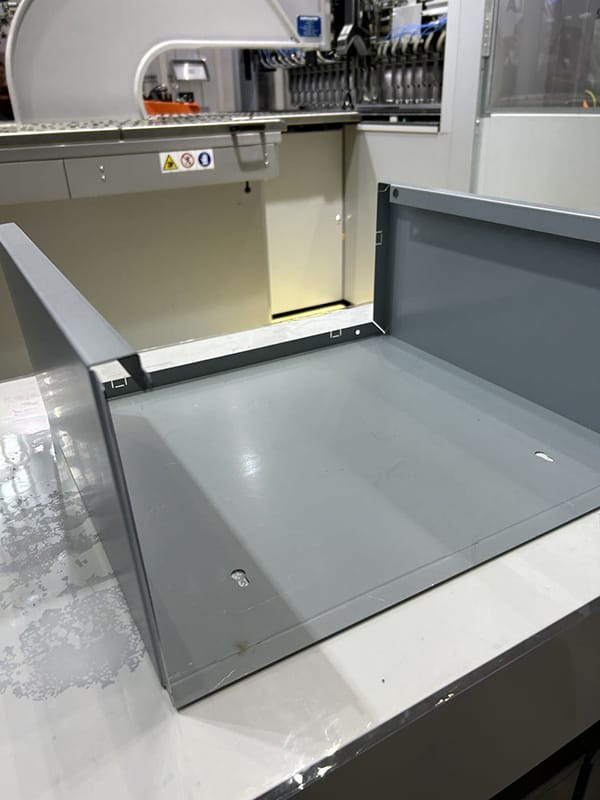

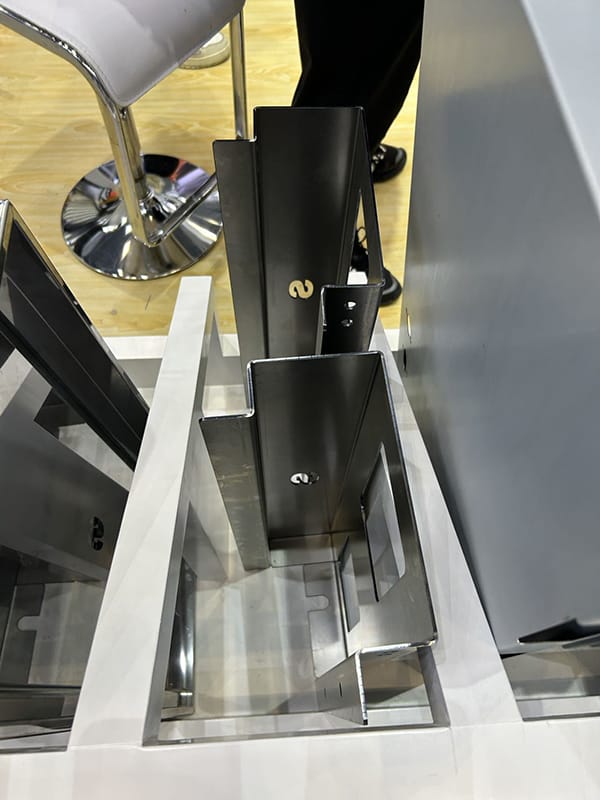

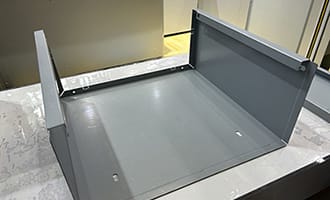

Examples of Our Processed Sheet Metal Products
  • Torsion Bar Press Brake, E21
  • Torsion Bar Press Brake, E21
  • Torsion Bar Press Brake, E21
  • Torsion Bar Press Brake, E21
Technical Parameters
Torsion Bar Press Brake, E21

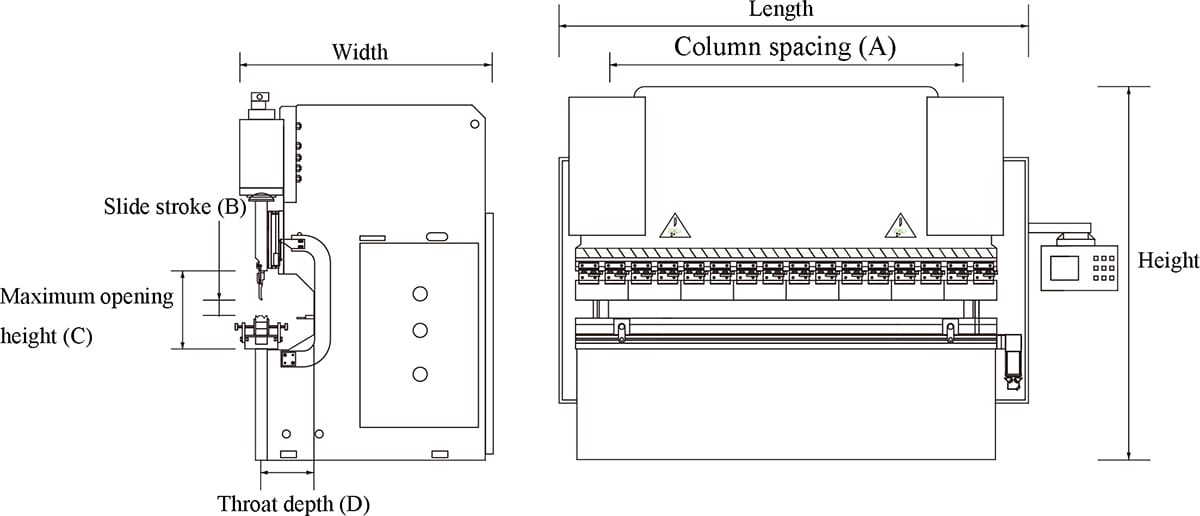

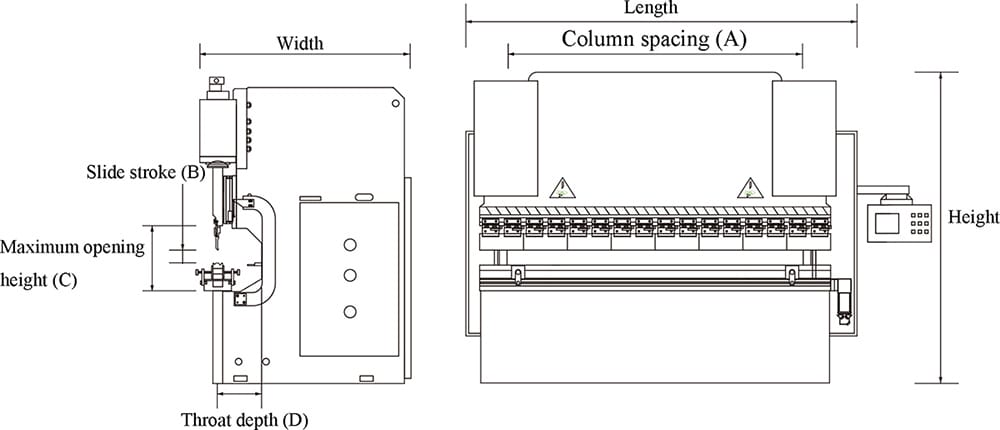

Length Width Column spacing(A) Slide stroke (B) Maximum opening height (C) Throat depth (D) Height
Model Nominal Pressure (kN)  Workbench Length (mm)  Throat Depth (mm)(D) Column Spacing (mm)(A) Slide Stroke (mm) (B) Max. Opening Height (mm) © Main Motor Power (kW)
XSM 63T/2500 630 2500 280 2050 120 350 5.5
XSM 80T/2500 800 2500 320 2050 120 370 7.5
XSM 100T/2500 1000 2500 400 2050 120 370 7.5
XSM 125T/2500 1250 2500 400 2050 140 40 7.5
XSM 100T/3200 1000 3200 400 2560 120 370 7.5
XSM 125T/3200 1250 3200 400 2560 140 370 7.5
XSM 160T/3200 1600 3200 400 2550 180 460 11
XSM 200T/3200 2000 3200 400 2500 200 470 11
XSM 250T/3200 2500 3200 400 2500 250 550 18.5
XSM 300T/3200 3000 3200 400 2500 250 560 22
XSM 100T/4000 1000 4000 400 3160 120 370 7.5
XSM 125T/4000 1250 4000 400 3150 140 370 7.5
XSM 160T/4000 1600 4000 400 3150 180 460 11
XSM 200t/4000 2000 4000 400 3100 200 470 11
XSM 250T/4000 2500 4000 400 3100 250 550 18.5
XSM 300T/4000 3000 4000 400 3100 250 560 22
XSM 400T/4000 4000 4000 400 3100 300 600 30

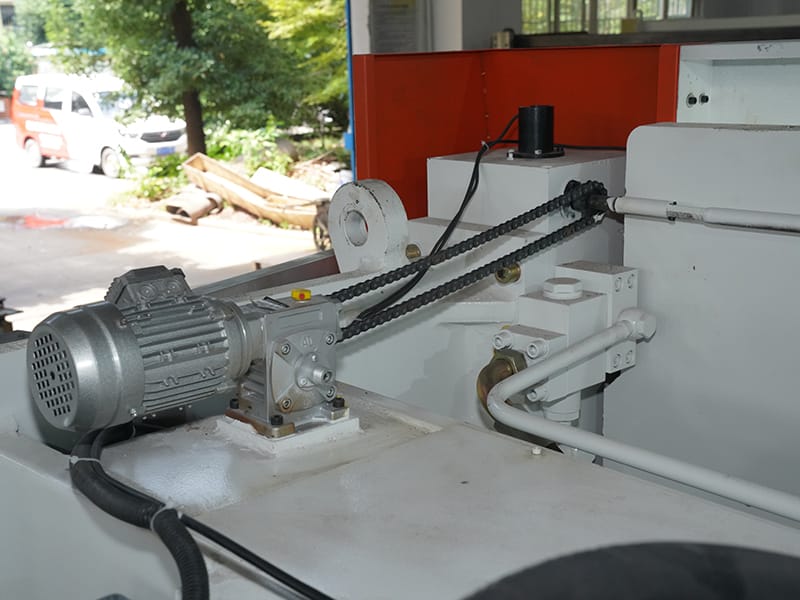

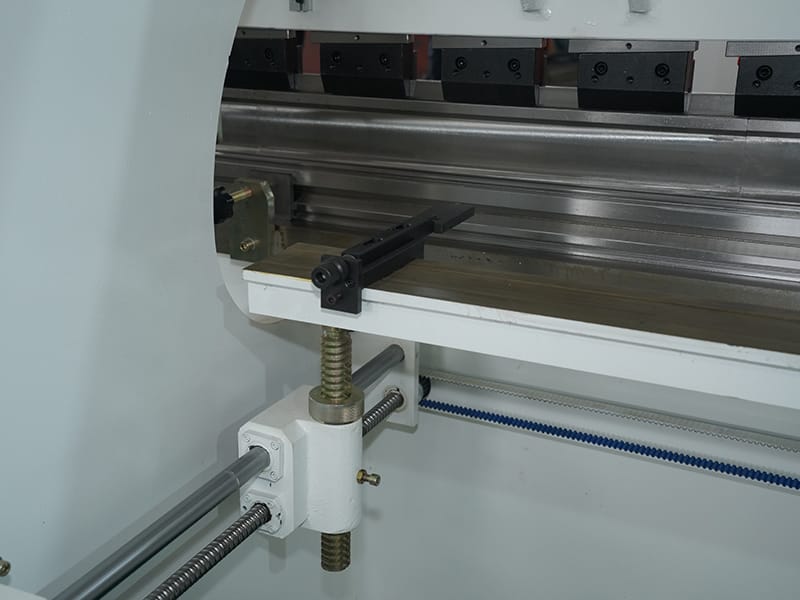

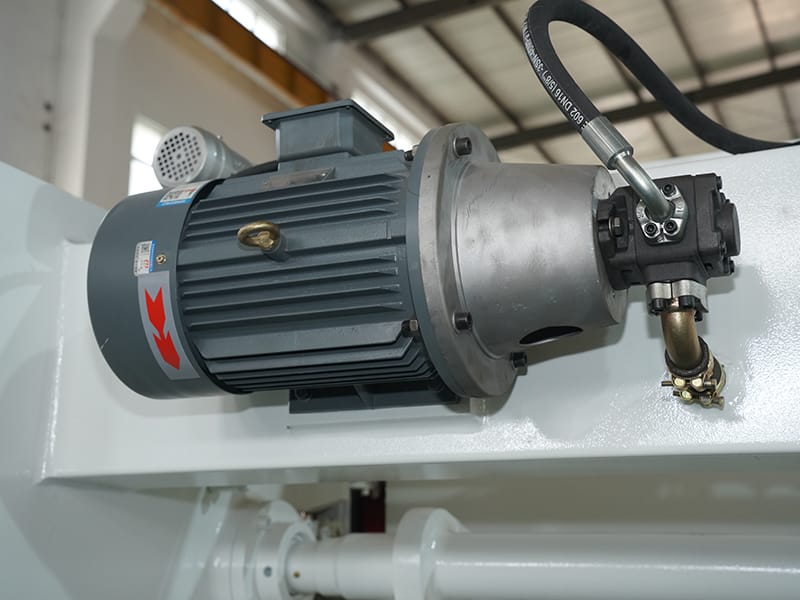

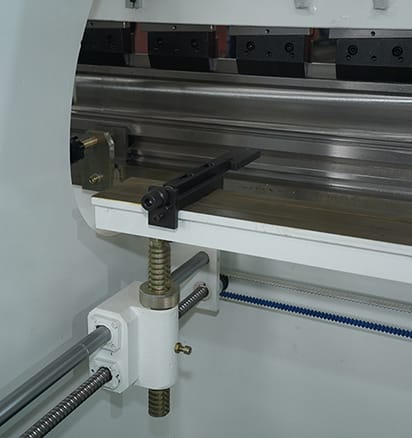

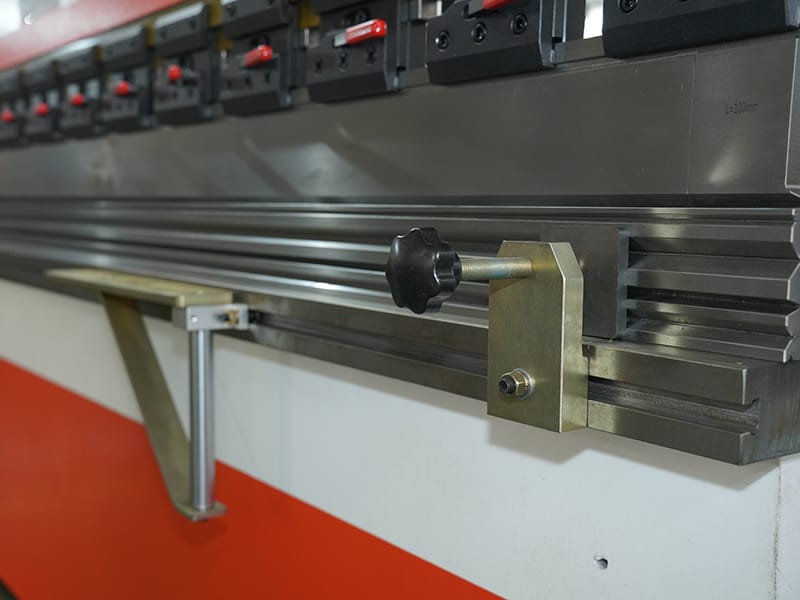

Machine Components

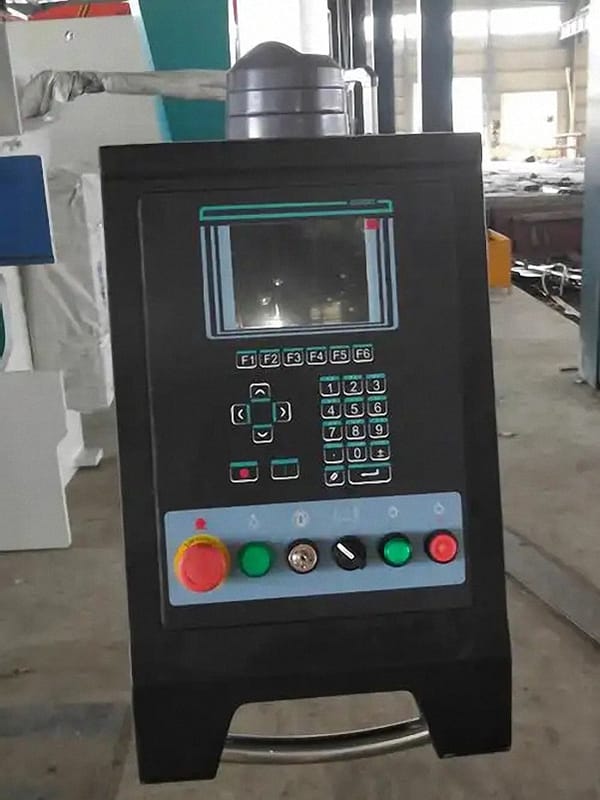

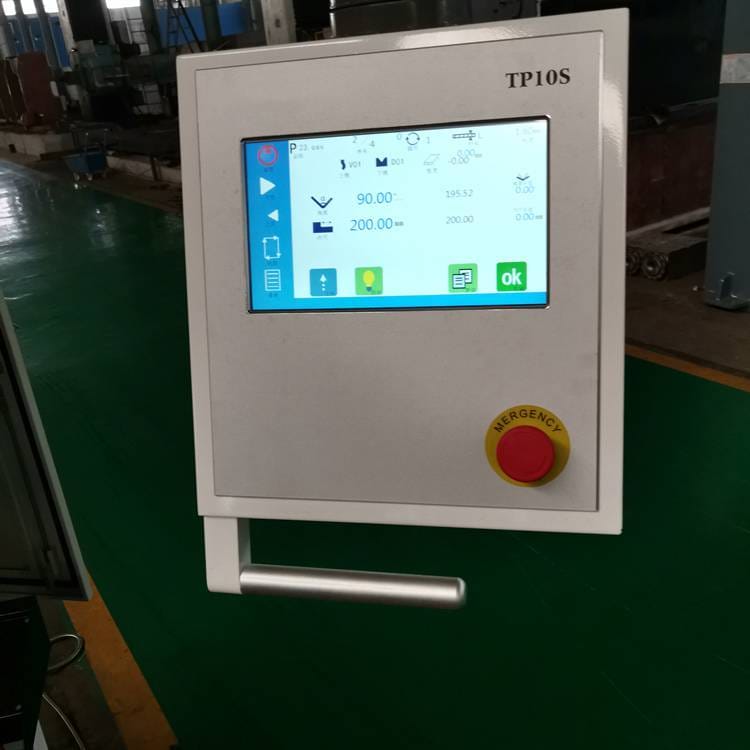

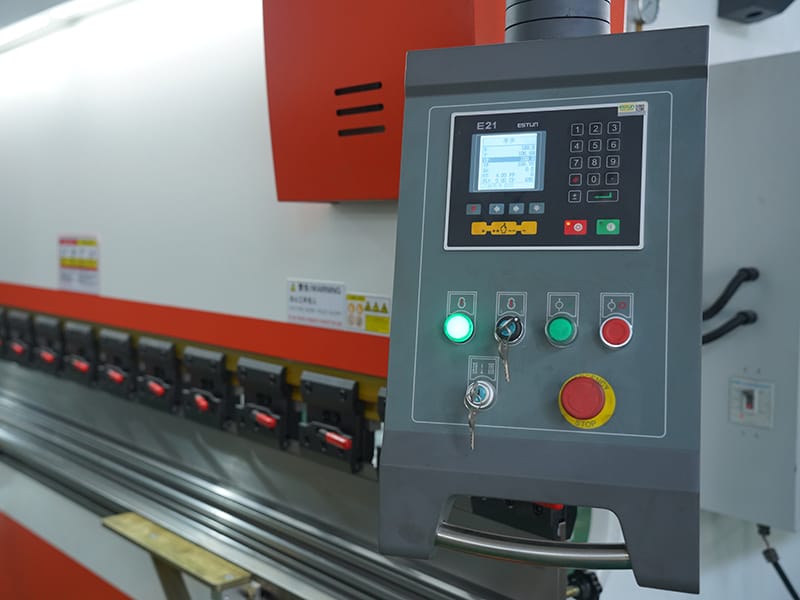

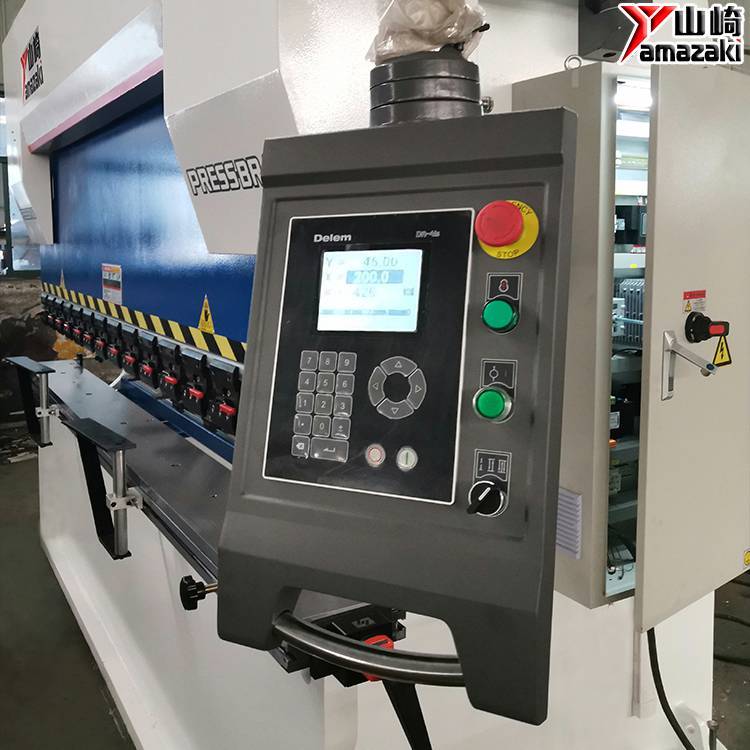

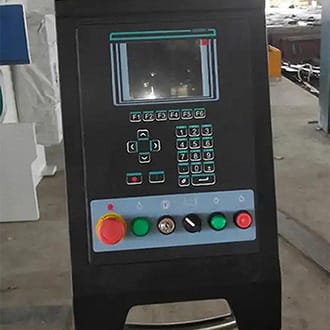

Optional Control System
