Channel forming die

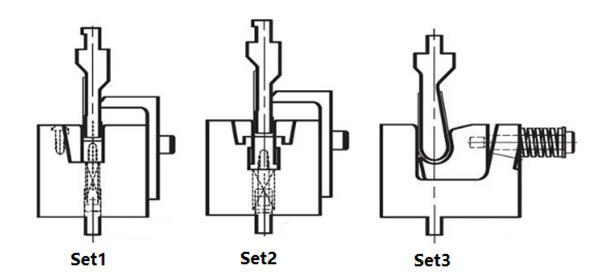

Channel forming die set 1 and set 2 are used to form channels with an inside web of 3/4“or less. Set 2 is suitable for sheets requiring a high flatness. Set 3 is used to create U-shaped channels.

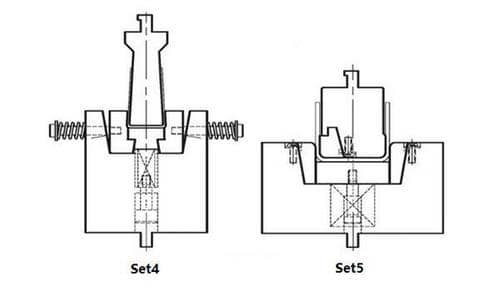

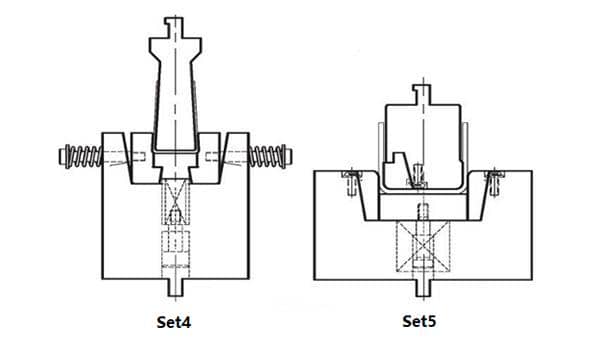

When the material thickness is 1-1/2 to 2 times or greater, the built in radius of the channel forming die set 4 may cause spring back, which will then form a channel.

Set 5 is applicable for channels where the inside web is greater than 3/4”. This die set features a pressure pad to ensure the flatness of the inside web.

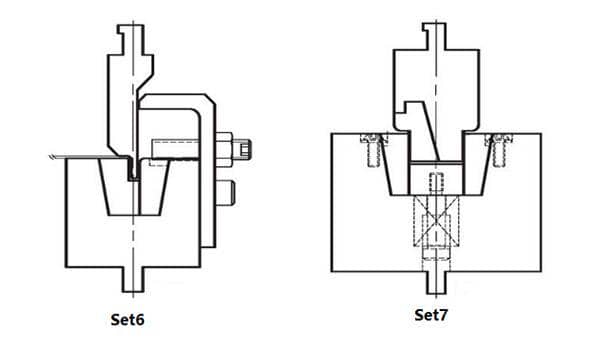

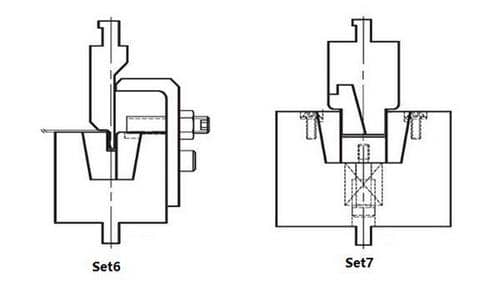

The die set 6 forms a semi hat channel at the edge of sheets, which consists of a release wedge and stripper to ensure easy part removal.

Die sets 7 and 8 are designed to form hat channels. Set 7 can form four 90 degree bends in one hit and set 8 can form an open hat channel in one hit.

As a press brake tooling solutions provider, Fangwei is committed to providing premium press brake toolings for sheet metal professionals all over the world. We offer an extensive selection of press brake toolings, shear blades, and other special tools used in press brakes and shears from major brands like LVD, Trumpf, Amada, Axial, Baykal, Boschert, Bystronic, Edward Pearson, Ermaksan, Femas, Fratelli Farina, GADE, Hammerle, Hesse, Hezinger, etc. As an experienced press brake tooling manufacturer, we can manufacture standard press brake toolings according to the relevant specifications of your press brake machines and shears. Upon request, custom production service is also available. Our advanced manufacturing equipment guarantees the preciseness of tools production processes from material feeding, forging, forming to polishing. Due to high quality, our products are highly praised by many sheet metal fabricators.
