78° Dies, H=90mm, Amada Press Brake Tooling

Inquiry

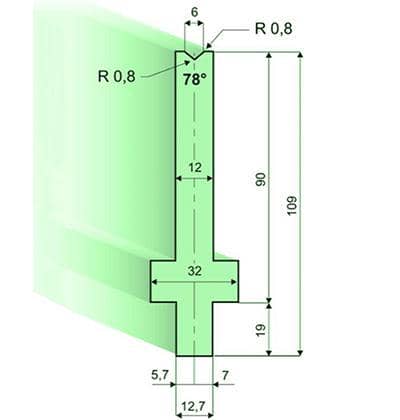

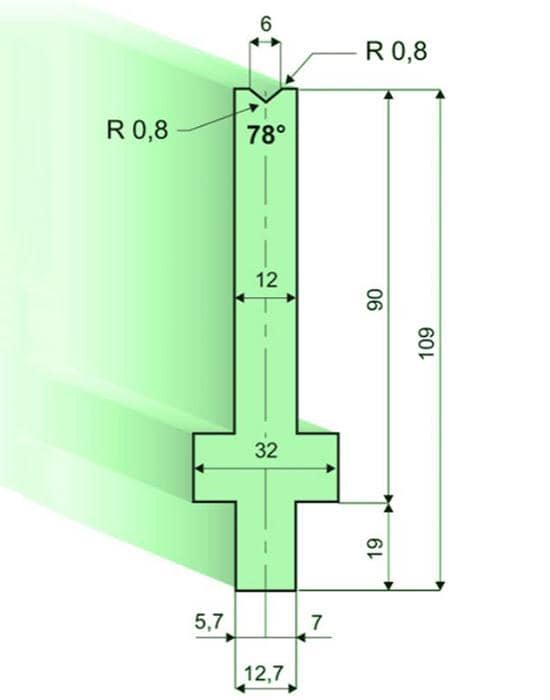

F 26.706 (400KN/m Max)
Length Weight
508mm 6.5KG
550mm sectionalized 7.0KG
Inquiry

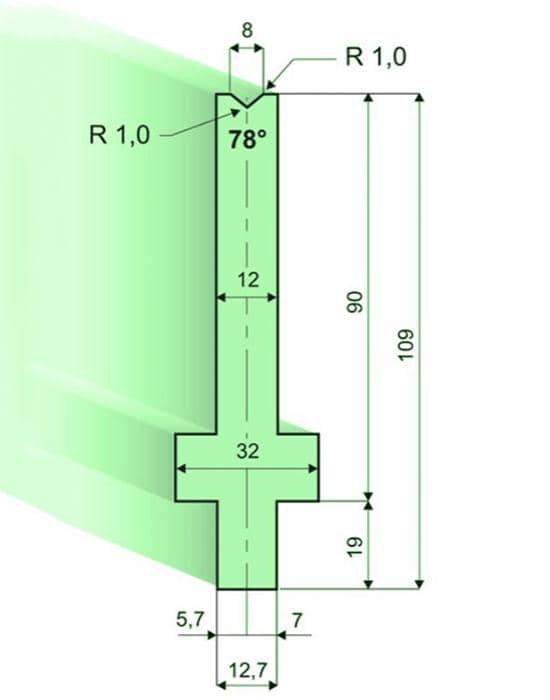

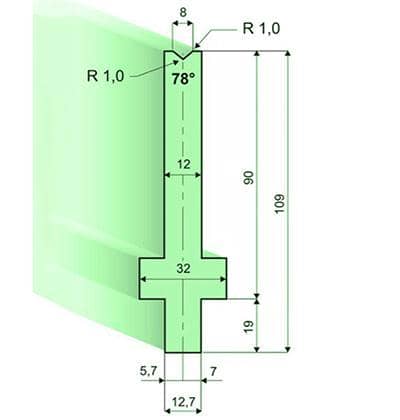

F 26.708 (400KN/m Max)
Length Weight
508mm 6.5KG
550mm sectionalized 7.0KG
Inquiry

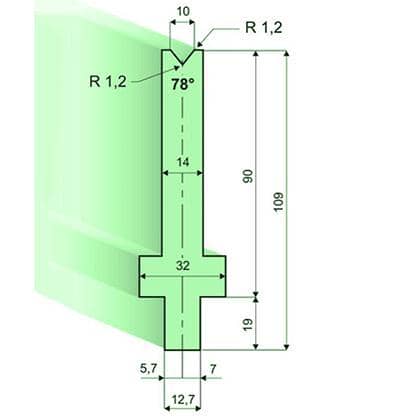

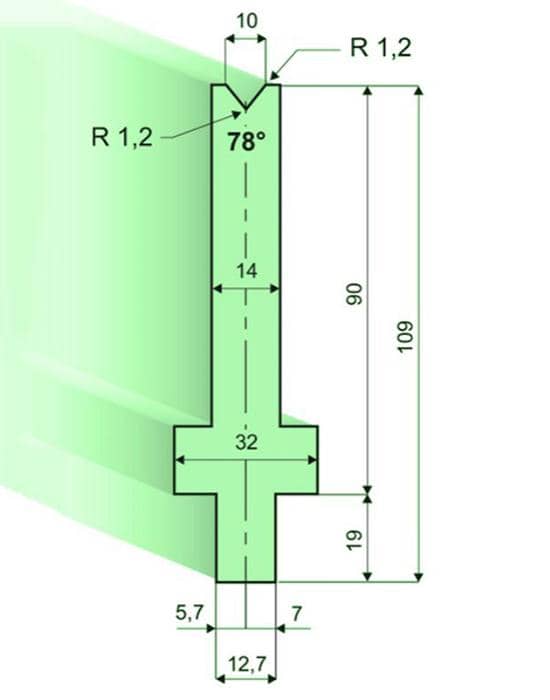

F 26.710 (500KN/m Max)
Length Weight
508mm 7.0KG
550mm sectionalized 7.6KG
Inquiry

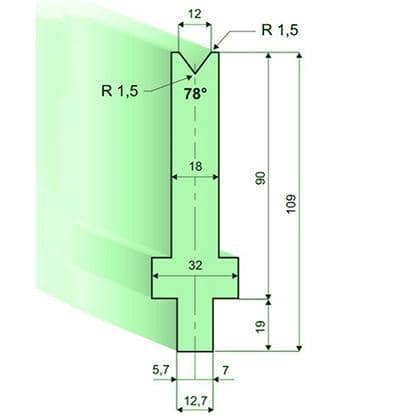

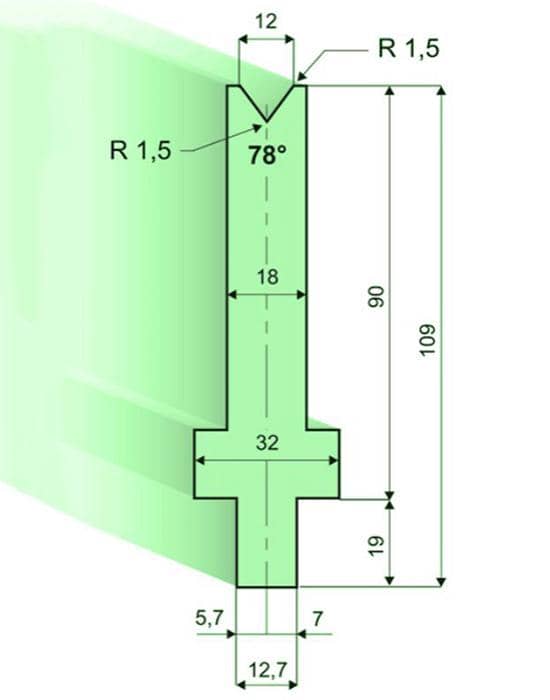

F 26.712 (600KN/m Max)
Length Weight
508mm 8.0KG
550mm sectionalized 8.7KG
Inquiry

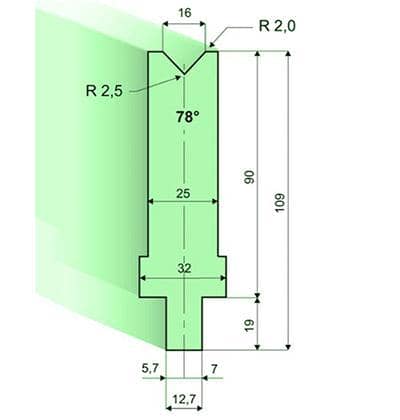

F 26.716 (800KN/m Max)
Length Weight
508mm 10.0KG
550mm sectionalized 10.8KG
Inquiry

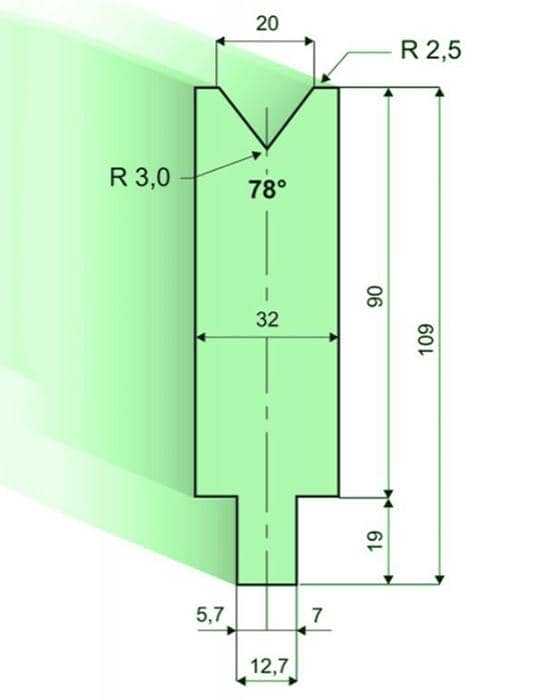

F 26.720 (800KN/m Max)
Length Weight
508mm 12.0KG
550mm sectionalized 13.0KG
Inquiry
F 26.724 (1000KN/m Max)
Length Weight
508mm 11.7KG
550mm sectionalized 12.7KG
Inquiry

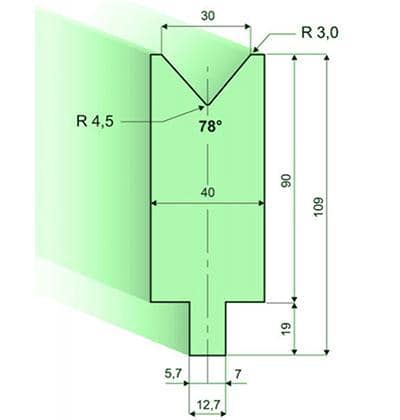

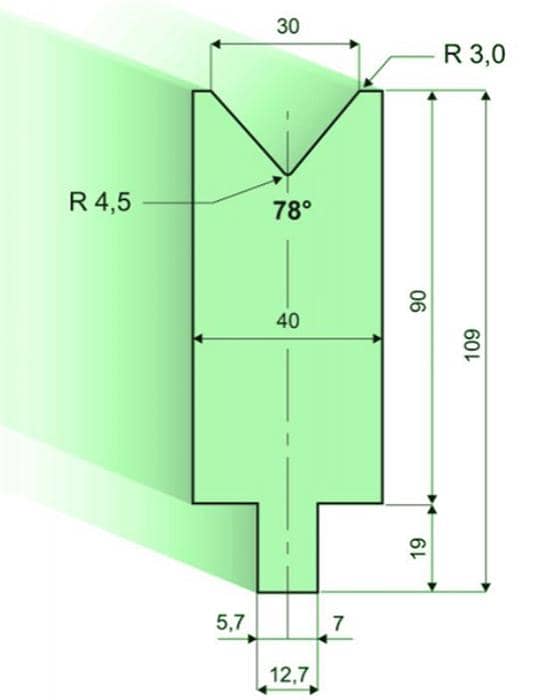

F 26.730 (1000KN/m Max)
Length Weight
508mm 14.2KG
550mm sectionalized 15.4KG
Inquiry

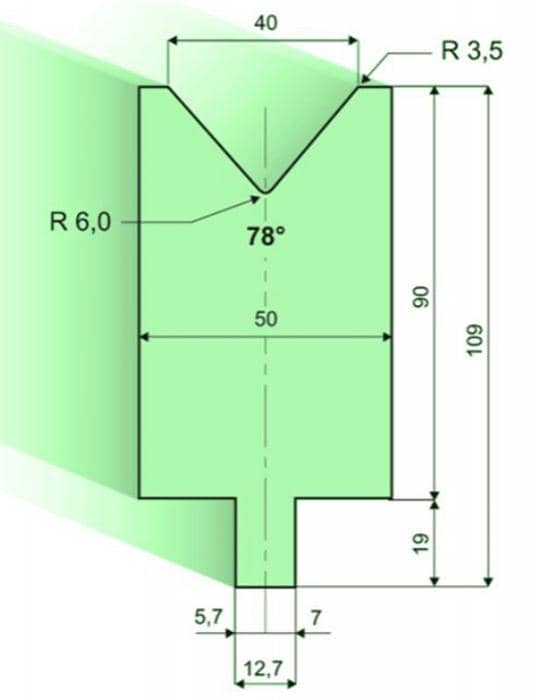

F 26.740 (1000KN/m Max)
Length Weight
508mm 17.3KG
550mm sectionalized 18.4KG
Inquiry

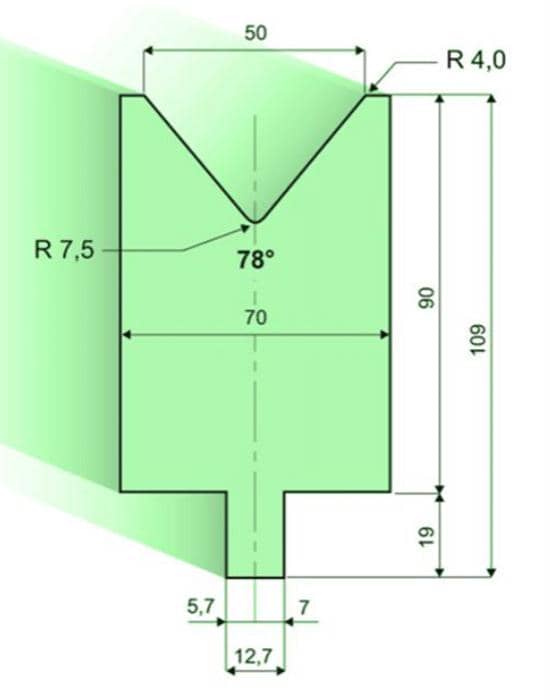

F 26.750 (1000KN/m Max)
Length Weight
508mm 23.0KG
550mm sectionalized 24.9KG
Inquiry

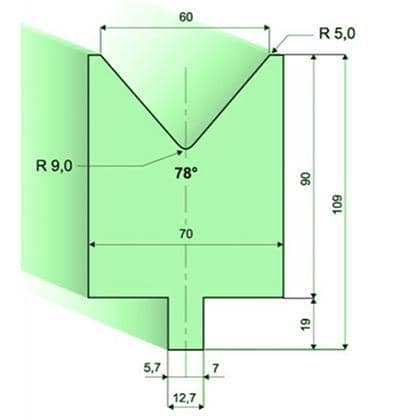

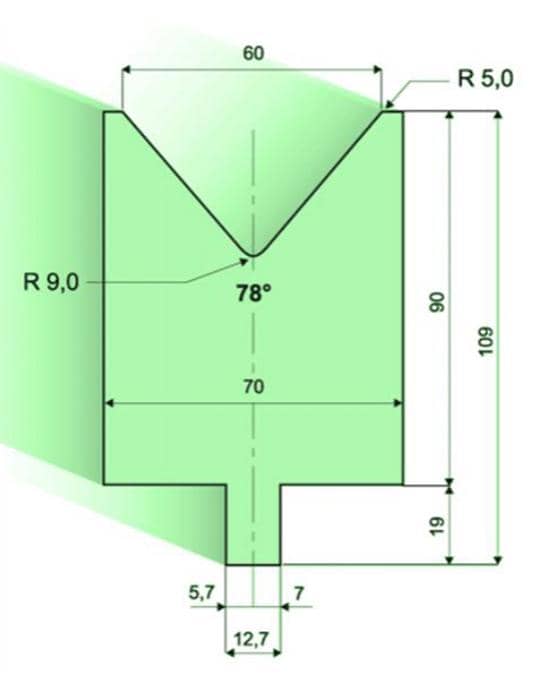

F 26.760 (1000KN/m Max)
Length Weight
508mm 21.5KG
550mm sectionalized 23.3KG
Inquiry

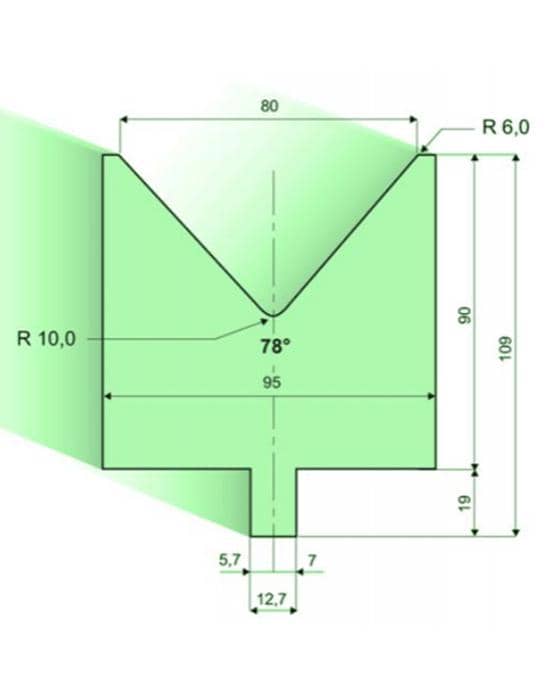

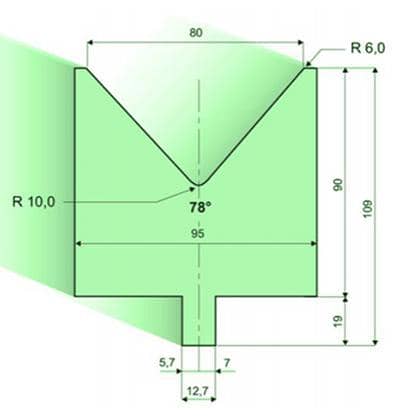

F 26.780 (1000KN/m Max)
Length Weight
508mm 27.0KG
550mm sectionalized 29.2KG
Inquiry
F 26.794 (1000KN/m Max)
Length Weight
508mm 31.5KG
550mm sectionalized 34.1KG
