Acute Forming Punches and Die Sets, Amada Press Brake Tooling

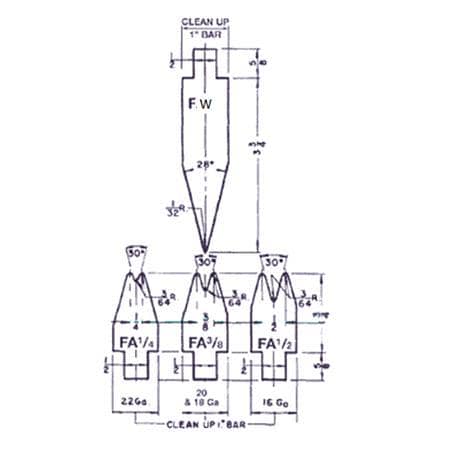

FW1
Inquiry
Specifications
Length Weight
Angle 28 º
Net Height3-3/4 ″
Radius 1/32″
Recommended Material Thickness 16GA to 22″
Clean Up Bar 1" Bar
FW2
Inquiry
Specifications
Length Weight
Angle 30º
Net Height3-3/4 ″
Radius 5/64″
Recommended Material Thickness 12GA
Clean Up 1-1/2" Bar

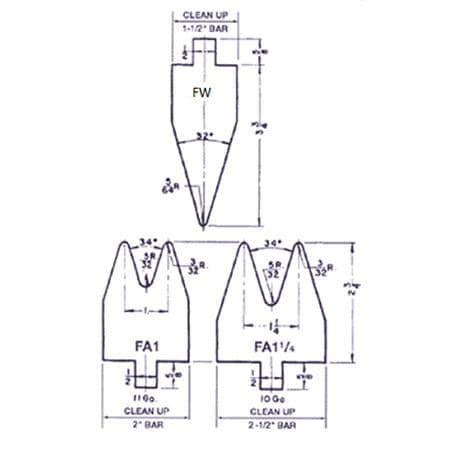

FW4
Inquiry
Specifications
Length Weight
Angle 32º
Net Height3-3/4 ″
Radius 5/64 ″
Recommended Material Thickness 11 GA to 10 ″
Clean Up Bar 1-1/2" Bar

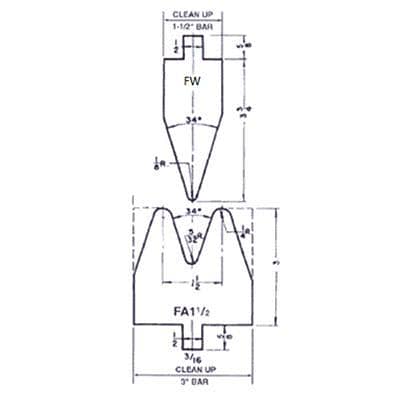

FW5
Inquiry
Specifications
Length Weight
Angle 34º
Net Height3-3/4 ″
Radius 1-1/4 ″
Recommended Material Thickness 3/16 ″
Clean Up Bar 1-1/2" Bar

As a press brake tooling solutions provider, Fangwei is committed to providing premium press brake toolings for sheet metal professionals all over the world. We offer an extensive selection of press brake toolings, shear blades, and other special tools used in press brakes and shears from major brands like LVD, Trumpf, Amada, Axial, Baykal, Boschert, Bystronic, Edward Pearson, Ermaksan, Femas, Fratelli Farina, GADE, Hammerle, Hesse, Hezinger, etc. As an experienced press brake tooling manufacturer, we can manufacture standard press brake toolings according to the relevant specifications of your press brake machines and shears. Upon request, custom production service is also available. Our advanced manufacturing equipment guarantees the preciseness of tools production processes from material feeding, forging, forming to polishing. Due to high quality, our products are highly praised by many sheet metal fabricators.
