Curling die, Amada Press Brake Tooling

Inquiry

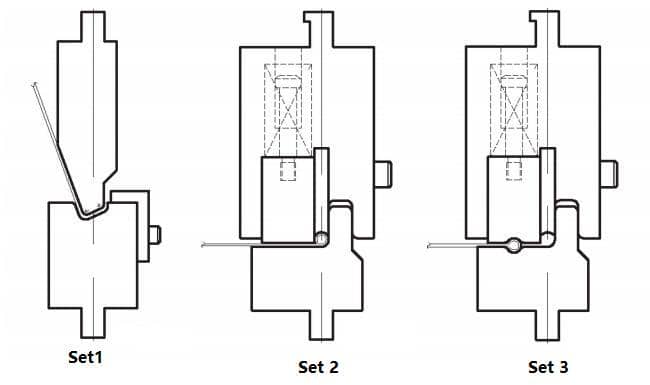

Die sets 1, 2 and 3 form the smallest curls in when the interior diameter is at least 3 times the material thickness. Die set 2 is used when an off center curl and two hits are required.

Set 3 is used to form an on center curl in three hits. When forming heavier gauge materials, tool steel inserts can be added to increase the strength.

Inquiry

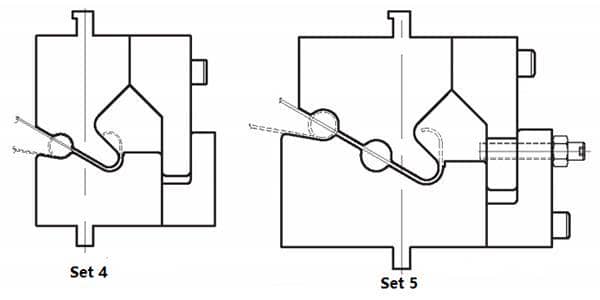

Die sets is designed to form an off center curl in three hits, and die set 5 forms an on center curl in four hits. Both sets accommodate material up to 16 GA and curls of inside meter between 1/4’’ and 3/4”.

As a press brake tooling solutions provider, Fangwei is committed to providing premium press brake toolings for sheet metal professionals all over the world. We offer an extensive selection of press brake toolings, shear blades, and other special tools used in press brakes and shears from major brands like LVD, Trumpf, Amada, Axial, Baykal, Boschert, Bystronic, Edward Pearson, Ermaksan, Femas, Fratelli Farina, GADE, Hammerle, Hesse, Hezinger, etc. As an experienced press brake tooling manufacturer, we can manufacture standard press brake toolings according to the relevant specifications of your press brake machines and shears. Upon request, custom production service is also available. Our advanced manufacturing equipment guarantees the preciseness of tools production processes from material feeding, forging, forming to polishing. Due to high quality, our products are highly praised by many sheet metal fabricators.
