Shear Blades, Amada Press Brake Tooling

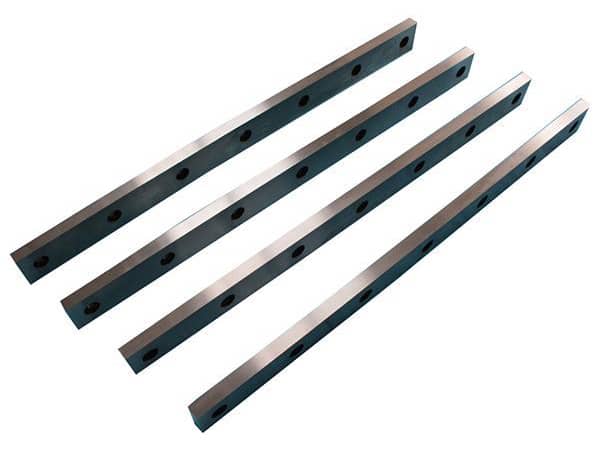

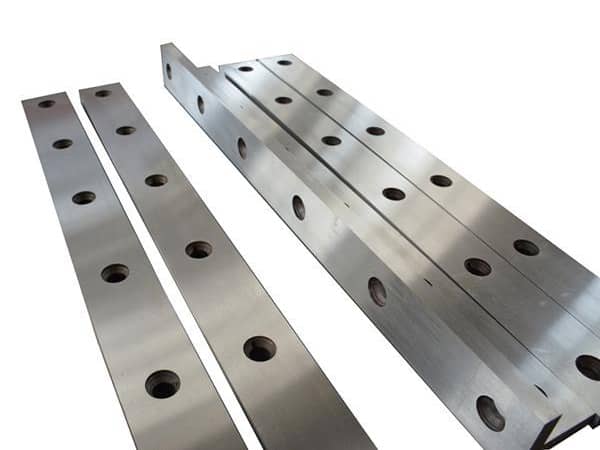

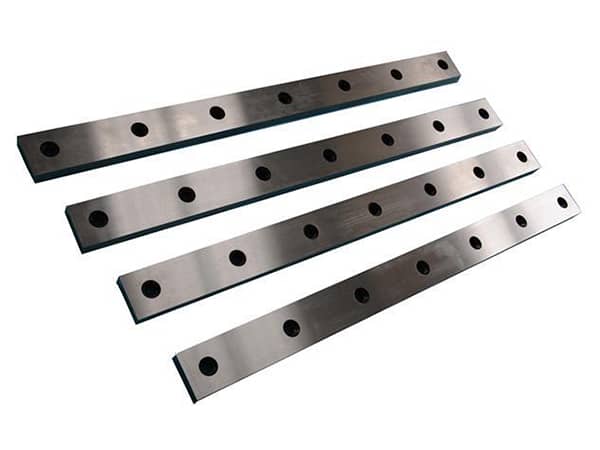

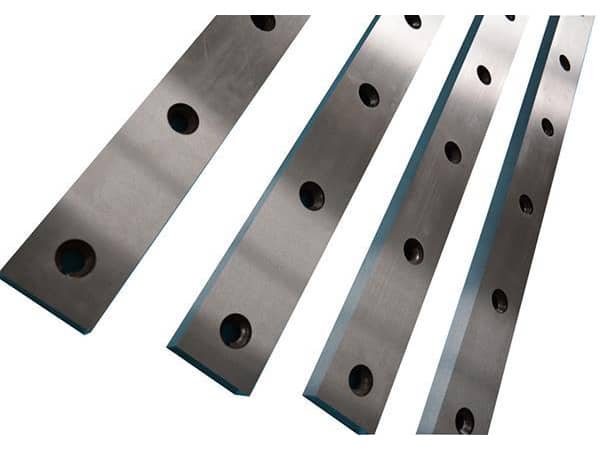

Shear blades are used to apply shear force to metal sheets in a variety of sizes, so that sheets are cut to the required size. Our shear blades are used for handling stainless steel, aluminum, carbon steel, high manganese steel and metal sheets.

Shear blades should match the specific shearing machine model, and here at Fangwei, we offer customers high quality shear blades to fit a variety of shear machine specifications. Customization services are also available.

• Blades up to 4100mm in one piece
• Compatible with a variety of guillotine shears and swing beam shears. Our shear blades feature double sided countersink or threaded hole, including 4, 2, or 1 cutting edge with threaded hole.
• Whole blades quenched and tempered, significantly increasing the hardness to HRC58°-64° and extending the working life.
• High alloy materials available: 5WSiCr, 9CrSi, 6W2SiCr, Cr12MoV, H13, H13K, LD, W18Cr4V.
• Custom service based on your specifications: center to center distance of holes, hole diameter, length, width, height, etc.

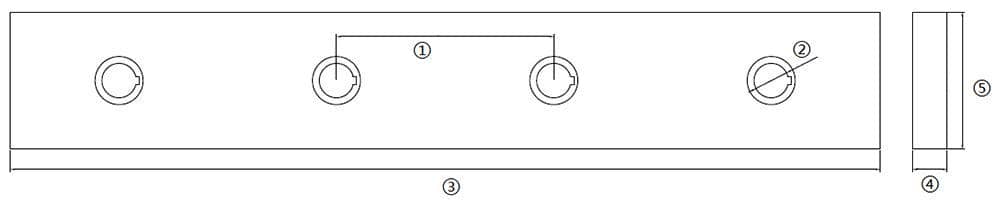

① center to center distance of holes; ② hole diameter; ③ length; ④ width; ⑤ height

If you are not sure what specifications will meet your needs, send us a sample, and we will provide a design drawing, and upon confirmation, will begin production.

Fangwei has a significant inventory of common shear blade types. By using preprocessing on semi-finished blades, the process cycle has been shortened by 30%, allowing us to guarantee delivery within 48 hours.
