The LVD precision press brake tooling is American style tooling and it is compatible with any type of LVD style press brake.
Fangwei has a huge inventory of LVD press brake tooling to fit your press brakes. The following are common types of LVD precision press brake tooling. If you don’t find the press brake tools you need, welcome to contact us for custom service.

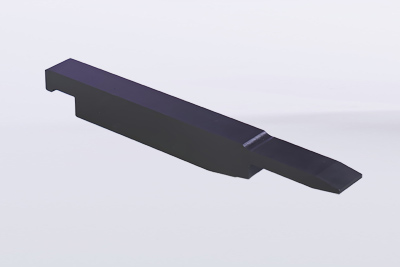

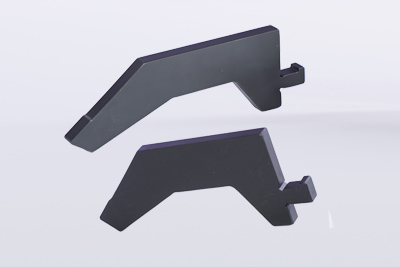

Punches

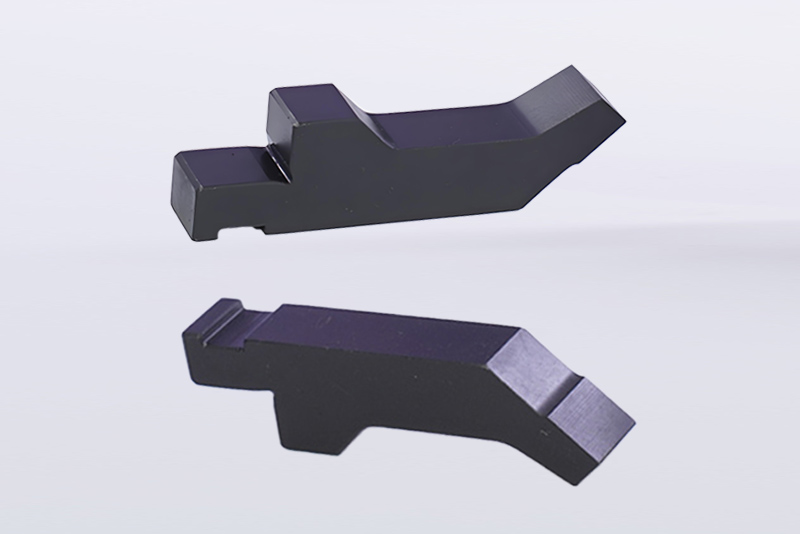

Punches/Top toolsFangwei can provide customers with a complete set of press brake tooling. Currently, we have abundant inventories of punches for LVD press brake tooling.
According to our rich experience in press brake tooling production, the following three optimum materials are recommended to satisfy your high quality requirements. Other required materials can also be customized to fit your specific needs.
42CrMo4, tempered to 1100 - 1200 N / mm2
1.2312, tempered to 950 - 1100 N / mm2
C45, tempered to 800 - 850 N / mm2
The hardness of the bending radius and intake radius can reach 45-50RC.
The LVD press brake tooling features high universality. After the length or bend angle is being adjusted or in conjunction with the adapters, the LVD press brake tooling are applicable on any other press brake machines.
Tool lengths
Punches/top-tools

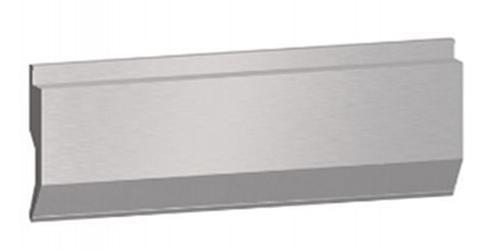

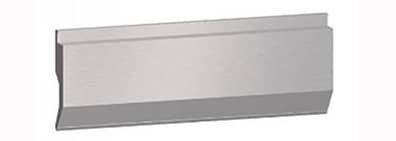

Length 508 mm
Length 550 mm sectionalized

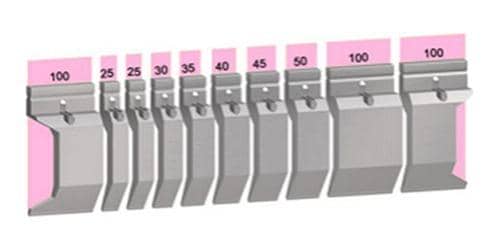

Sectionalized die is delivered as a complete set 10 Segments (100 Horn left 25, 25, 30, 35, 40, 45, 50, 100, 100 Horn right)

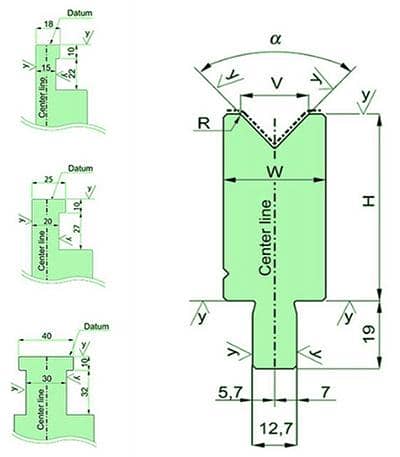

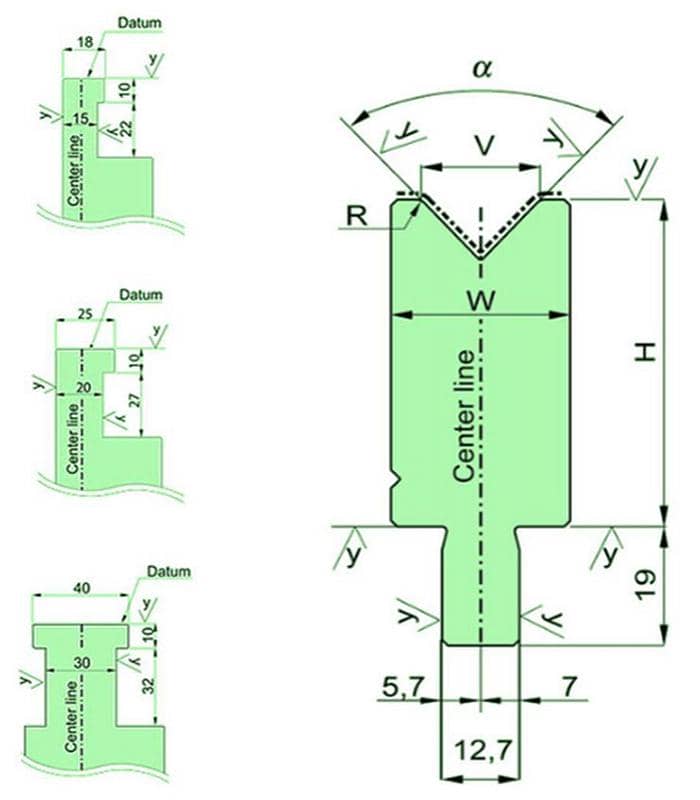

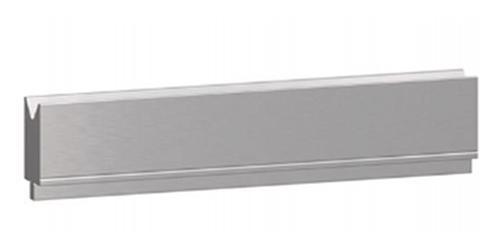

Dies

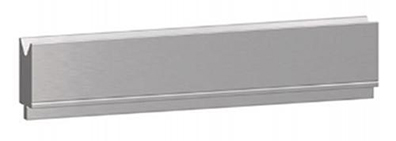

Length 508 mm
Length 550 mm sectionalized

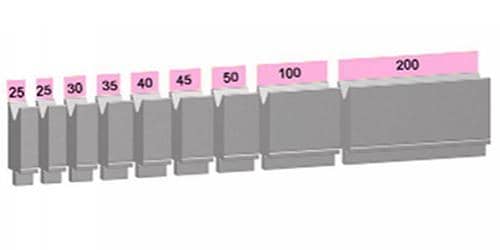

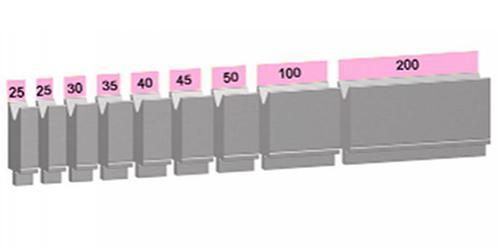

Sectionalized die is delivered as a complete set 9 Segments (25, 25, 30, 35, 40, 45, 50, 100, 200)
