90 Degree Punch, Top Tools | Press Brake Tooling

90°Punches/top-tools, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

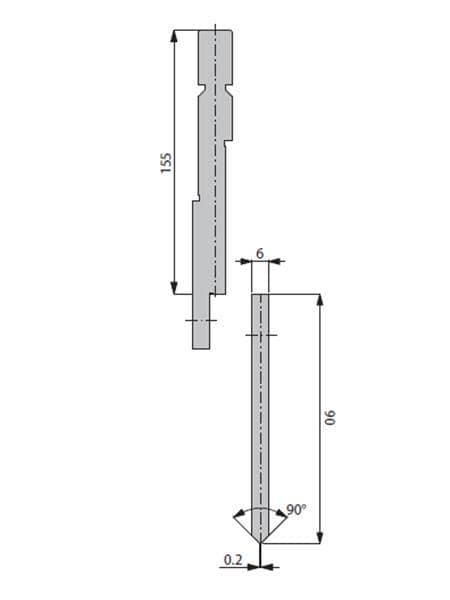

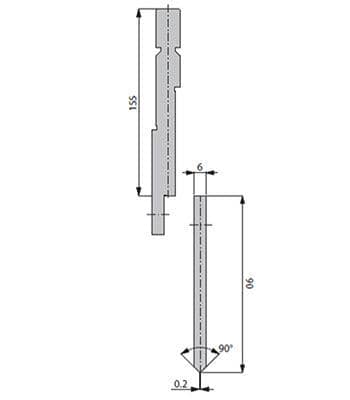

F 11.005 (1000KN/m Max,H=90mm)
Length	Weight
100mm	0.42KG
200mm	0.84KG

Inquiry

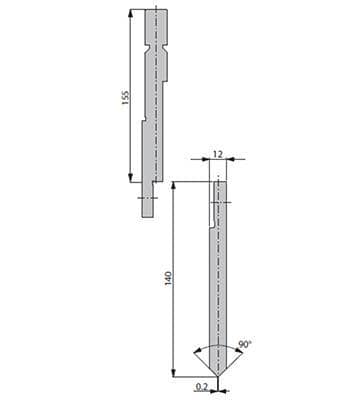

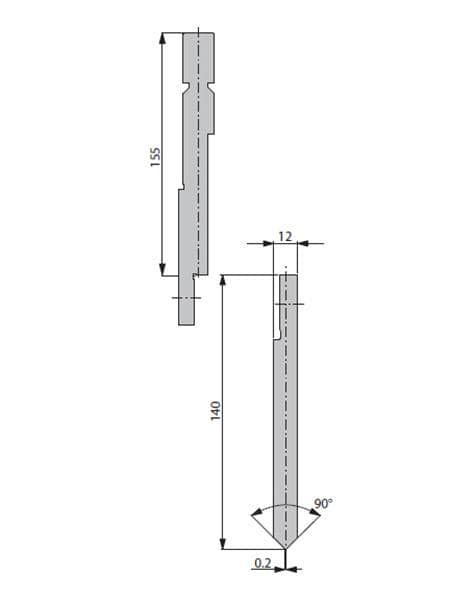

F 11.009 (1000KN/m Max,H=140mm)
Length	Weight
100mm	1.20KG
200mm	2.40KG

Inquiry

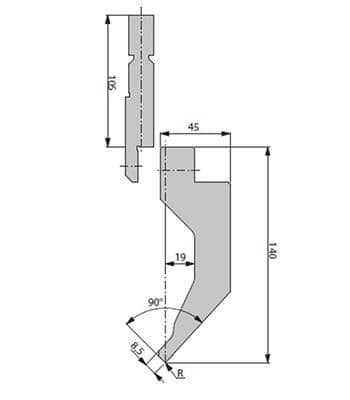

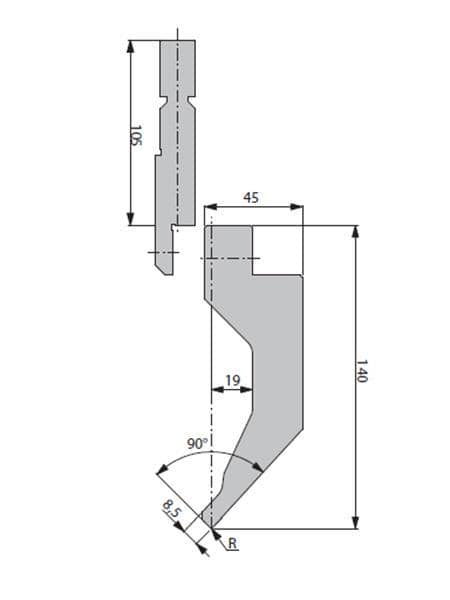

F12.019 (975KN/m Max, Radius=1mm, H=140mm)
Length	Weight
100mm	2.60KG
200mm	5.20KG

Inquiry

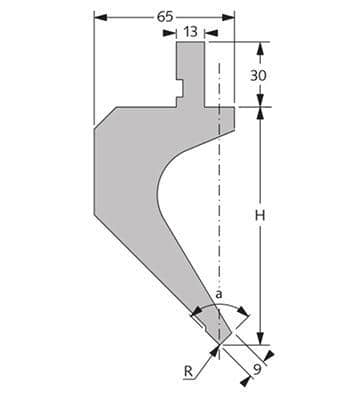

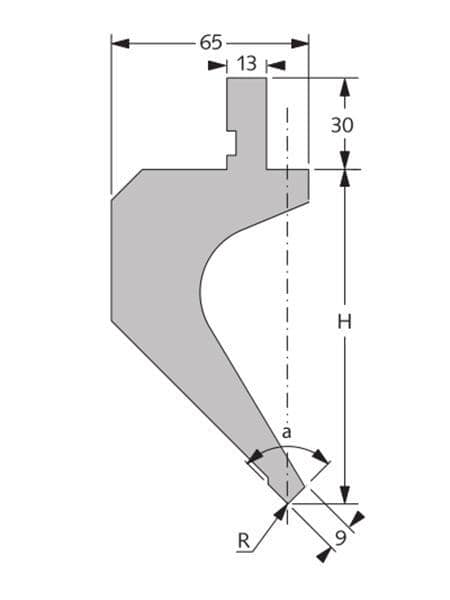

F 10.048(F=500KN/m Max)
Radius	0.2mm
Length	Weight
Width	65mm
Standard Length415mm	13.07KG
Standard Length835mm	26.30KG

Inquiry

F 10.048(F=500KN/m Max)
Radius	0.2mm
Length	Weight
Width	65mm
Standard Length415mm	13.07KG
Standard Length835mm	26.30KG

Inquiry

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
