85 Degree Punch, Top Tools | Press Brake Tooling

85°Punches/top-tools, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

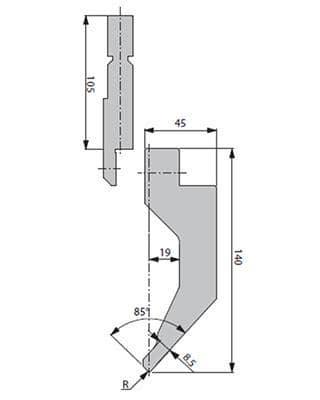

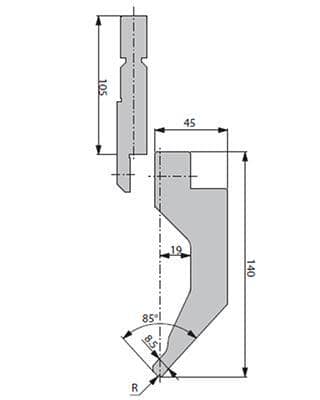

F12.014 (975KN/m Max, Radius=1mm, H=140mm)
Length	Weight
100mm	3.358KG
200mm	6.716KG

Inquiry

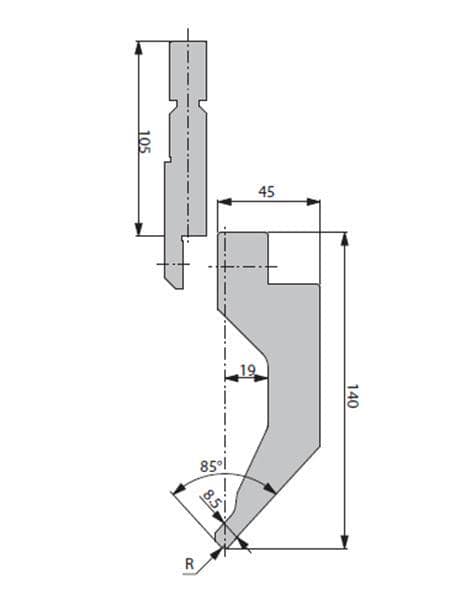

F 12.015 (975KN/m Max, Radius=1mm, H=140mm)
Length	Weight
100mm	2.620KG
200mm	5.24KG

Inquiry

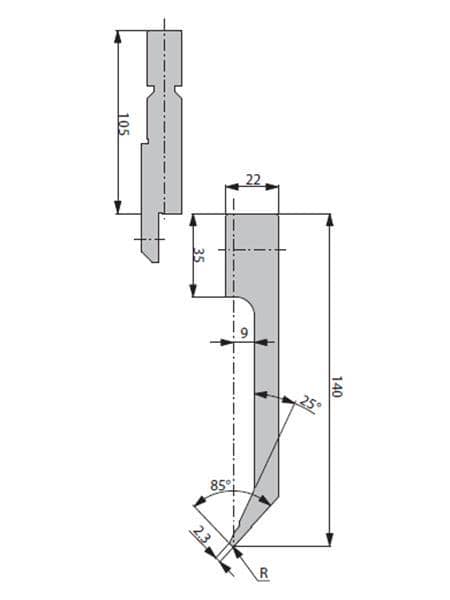

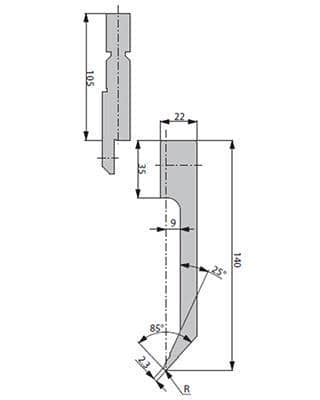

F 12.025 (250KN/m Max, Radius=1mm, H=140mm)
100mm	1.354KG
200mm	2.708KG

Inquiry

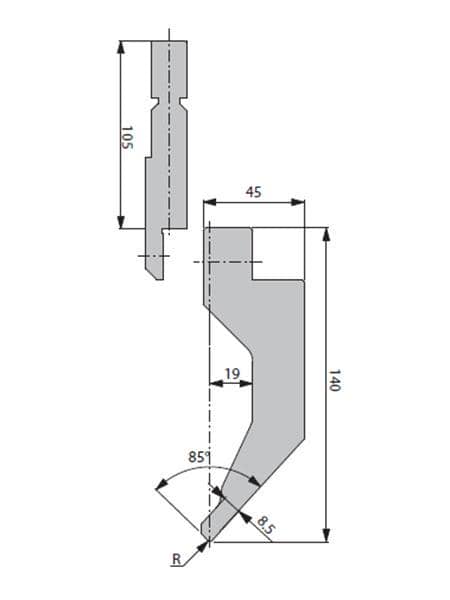

F 12.052 (975KN/m Max, Radius=2mm, H=140mm)
Radius	0.2/0.8mm
100mm	2.622KG
200mm	5.244KG

Inquiry

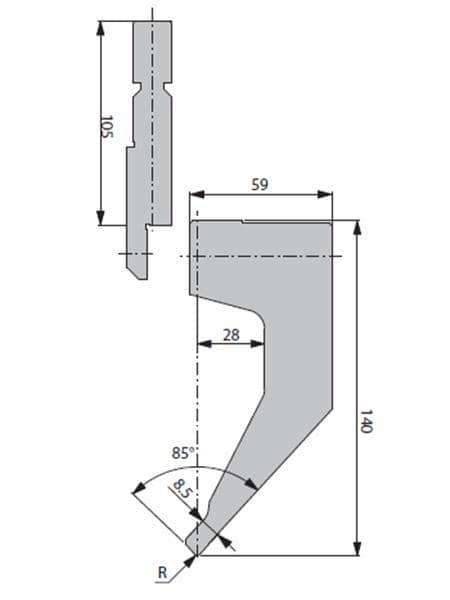

F 12.053 (975KN/m Max, Radius=3mm, H=140mm)
100mm	2.644KG
200mm	5.288KG

Inquiry

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
