88 Degree T-Dies, 120mm | Press Brake Tooling

88° T-dies, H=120mm, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

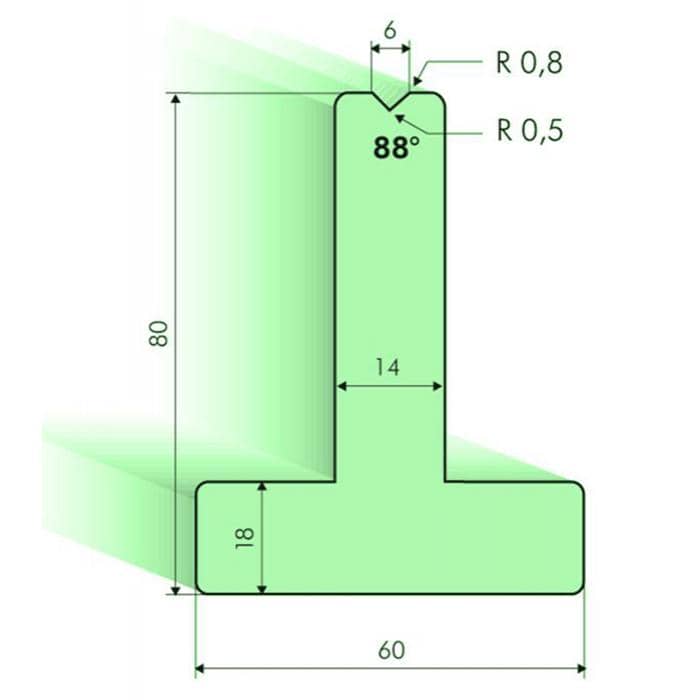

F 20.806(1000KN/m Max)
Length	Weight
835mm	12.6KG
415mm	6.3KG
835mm sectionalized	12.6KG

Inquiry

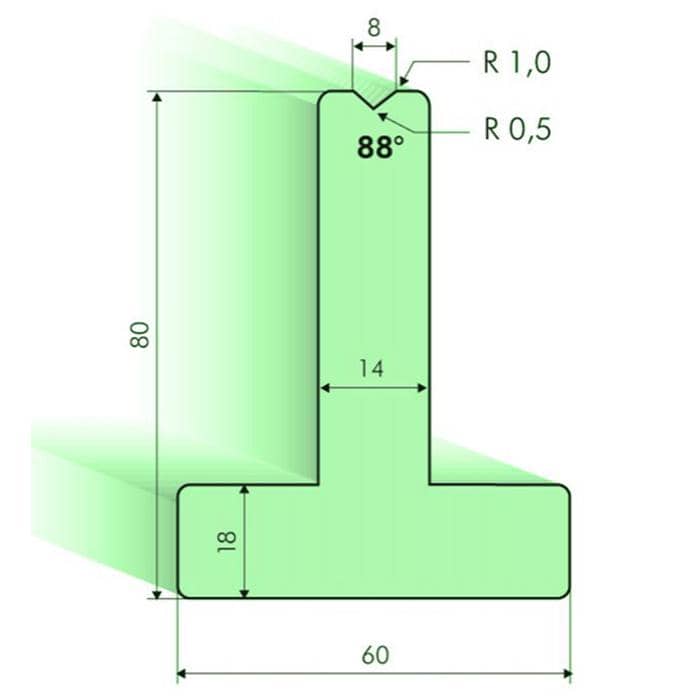

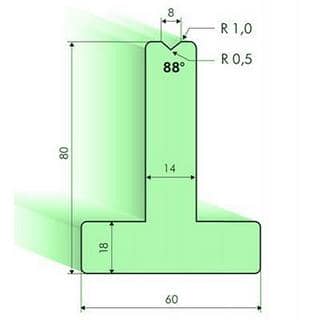

F 20.808(1000KN/m Max)
Length	Weight
835mm	12.6KG
415mm	6.3KG
835mm sectionalized	12.6KG

Inquiry

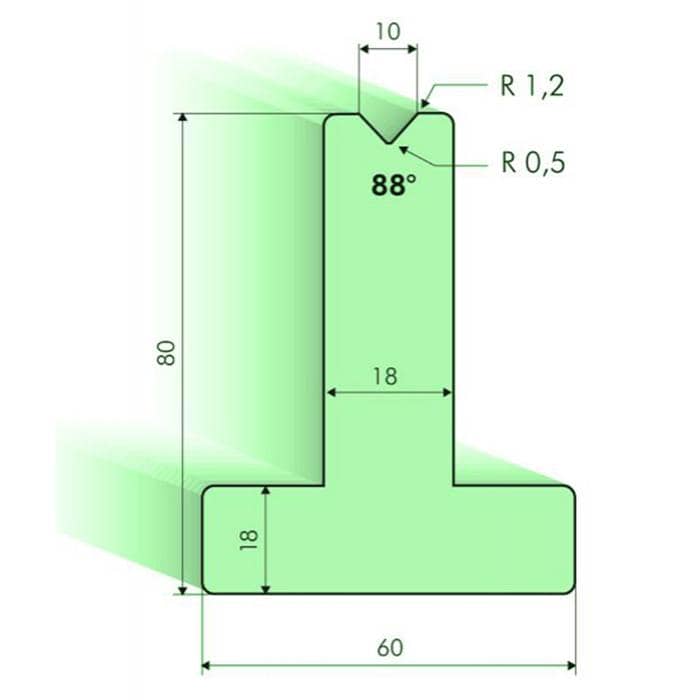

F 20.810(1000KN/m Max)
Length	Weight
835mm	14.2KG
415mm	7.1KG
835mm sectionalized	14.2KG

Inquiry

F 20.371(1000KN/m Max)
Length	Weight
835mm	14.1KG
415mm	7.0KG
835mm sectionalized	14.1KG

Inquiry

F 20.327 (1000KN/m Max)
Length	Weight
835mm	16.4KG
415mm	8.2KG
835mm sectionalized	16.4KG

Inquiry

F 20.310 (1000KN/m Max)
Length	Weight
835mm	18.6KG
415mm	9.3KG
835mm sectionalized	18.6KG

Inquiry

F 20.309 (1000KN/m Max)
Length	Weight
835mm	20.2KG
415mm	10.1KG
835mm sectionalized	20.2KG

Inquiry

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
