85 Degree T-Dies, 120mm | Press Brake Tooling

85° T-dies, H=120mm, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

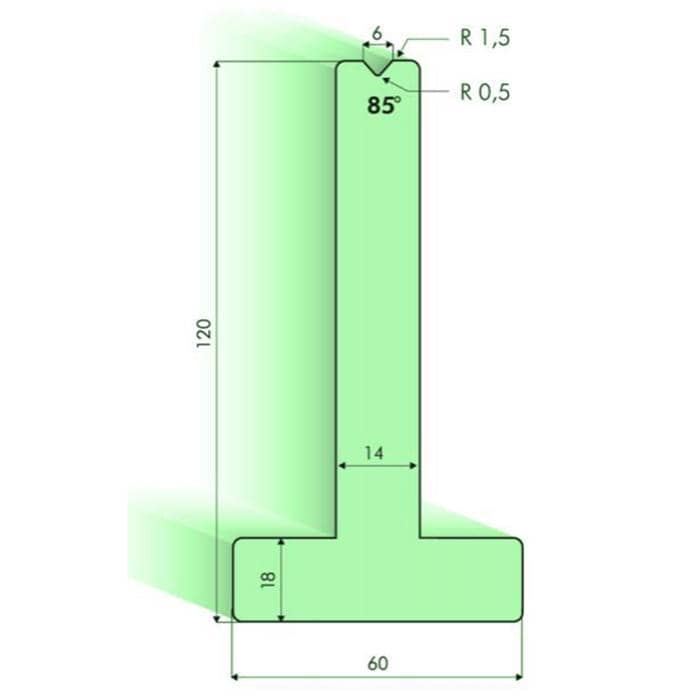

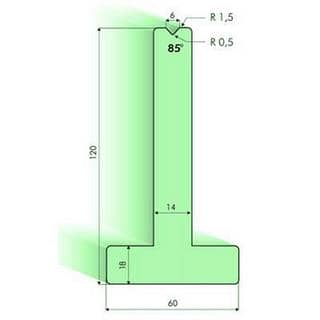

F 21.506(1000KN/m Max)
Length	Weight
835mm	16.5KG
415mm	8.2KG
835mm sectionalized	16.5KG

Inquiry

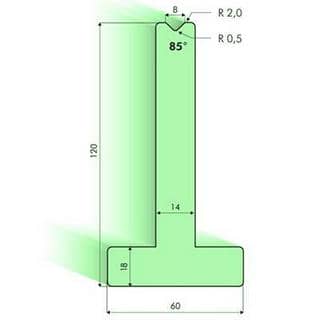

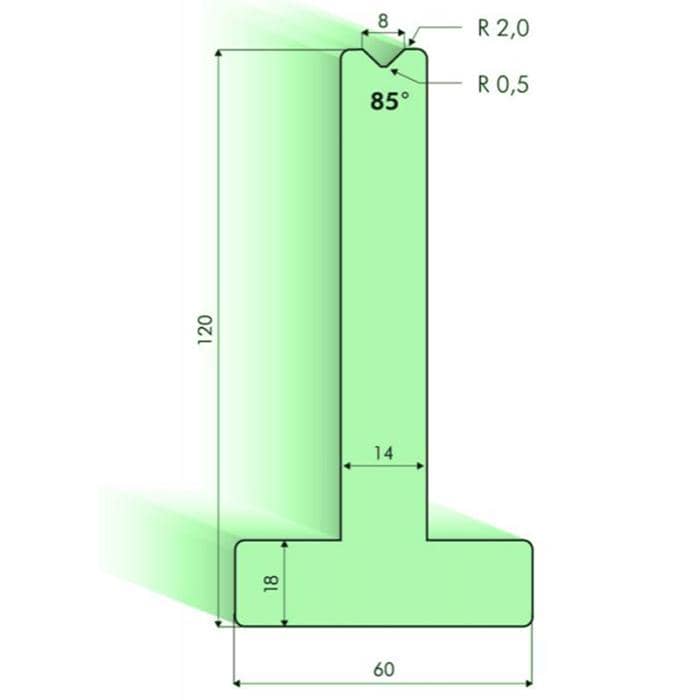

F 21.508(1000KN/m Max)
Length	Weight
835mm	16.5KG
415mm	8.2KG
835mm sectionalized	16.5KG

Inquiry

F 21.510(1000KN/m Max)
Length	Weight
835mm	19.0KG
415mm	9.5KG
835mm sectionalized	19.0KG

Inquiry

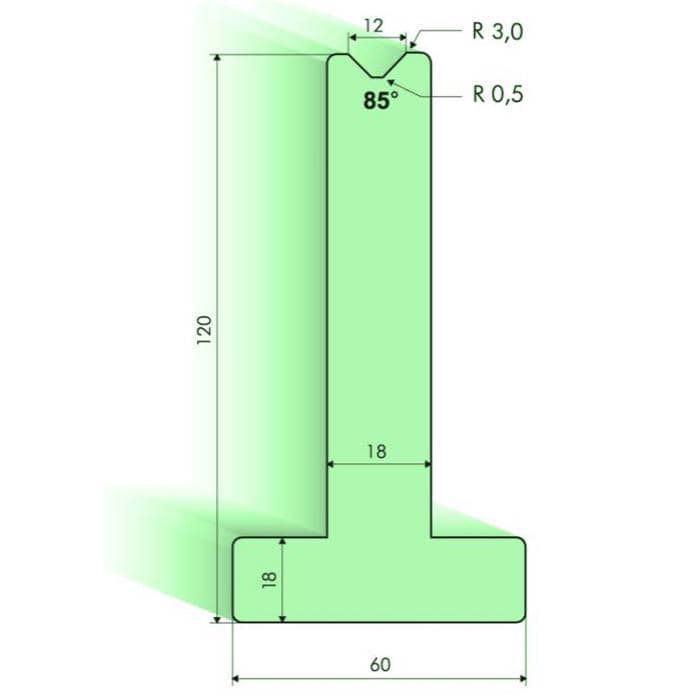

F 21.512(1000KN/m Max)
Length	Weight
835mm	18.8KG
415mm	9.4KG
835mm sectionalized	18.8KG

Inquiry

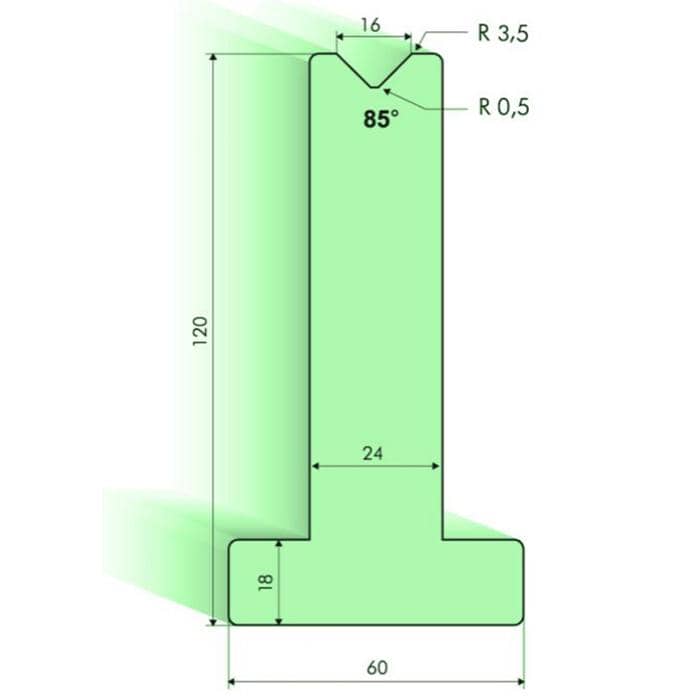

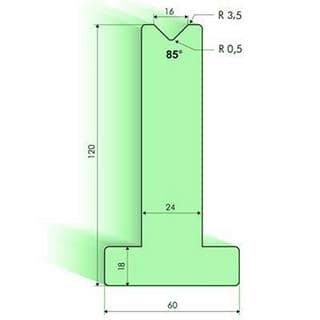

F 21.516 (1000KN/m Max)
Length	Weight
835mm	22.7KG
415mm	11.3KG
835mm sectionalized	22.7KG

Inquiry

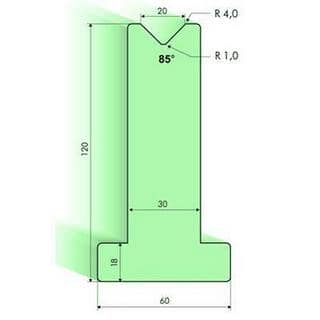

F 21.520 (1000KN/m Max)
Length	Weight
835mm	26.4KG
415mm	13.2KG
835mm sectionalized	26.4KG

Inquiry

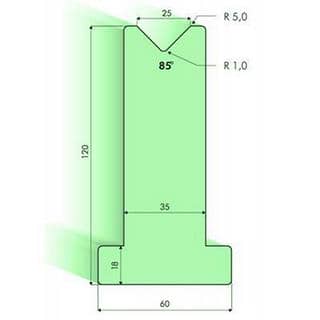

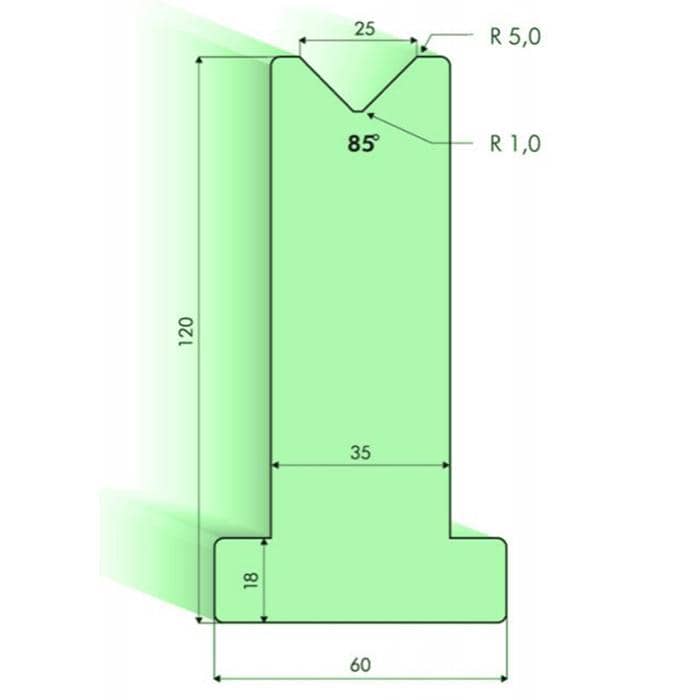

F 21.525 (1000KN/m Max)
Length	Weight
835mm	29.4KG
415mm	14.7KG
835mm sectionalized	29.4KG

Inquiry

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
