88 Degree Dies, 80mm | Press Brake Tooling

88/90° Dies, H=80mm, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

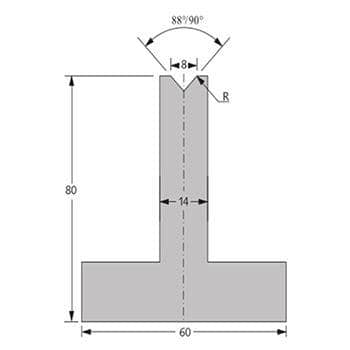

F 20.41/88/90(F=500KN/m Max)
Radius	0.5/0.4mm
Length	Weight
Width	60mm
Standard Length415mm	6.31KG
Standard Length835mm	12.69KG

Inquiry

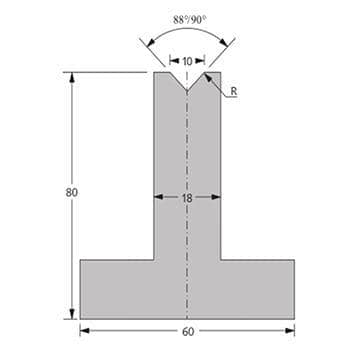

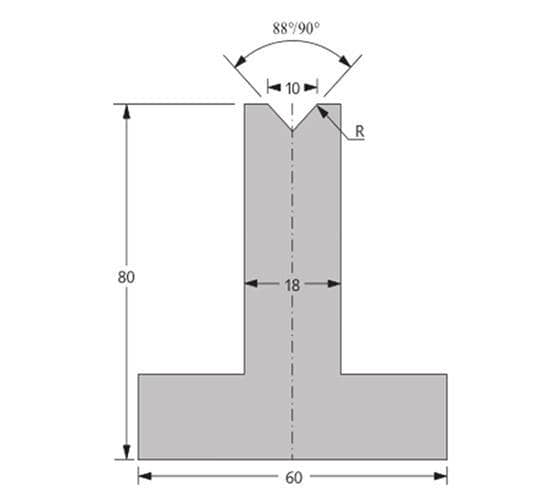

F 20.42/88/90(F=500KN/m Max)
Radius	0.5mm
Length	Weight
Width	60mm
Standard Length415mm	6.27KG
Standard Length835mm	12.61KG

Inquiry

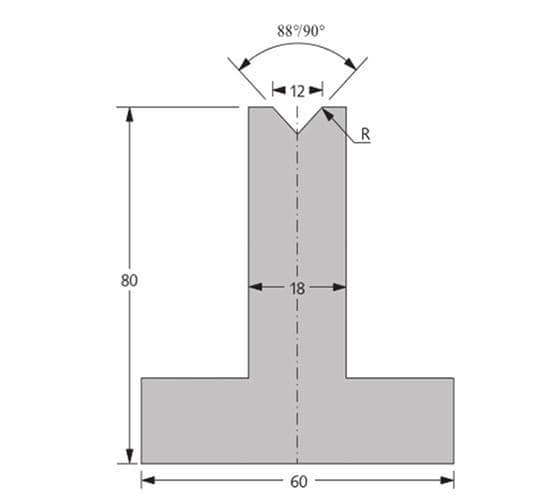

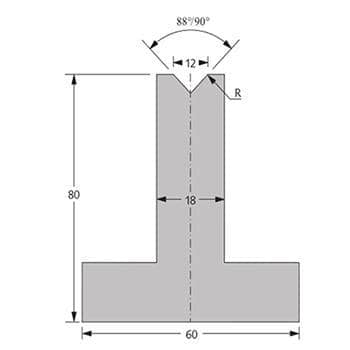

F 20.43/88/90(F=500KN/m Max)
Radius	0.6mm
Length	Weight
Width	60mm
Standard Length415mm	7.06KG
Standard Length835mm	14.20KG

Inquiry

F 20.44/88/90(F=500KN/m Max)
Radius	0.8mm
Length	Weight
Width	60mm
Standard Length415mm	7.01KG
Standard Length835mm	14.11KG

Inquiry

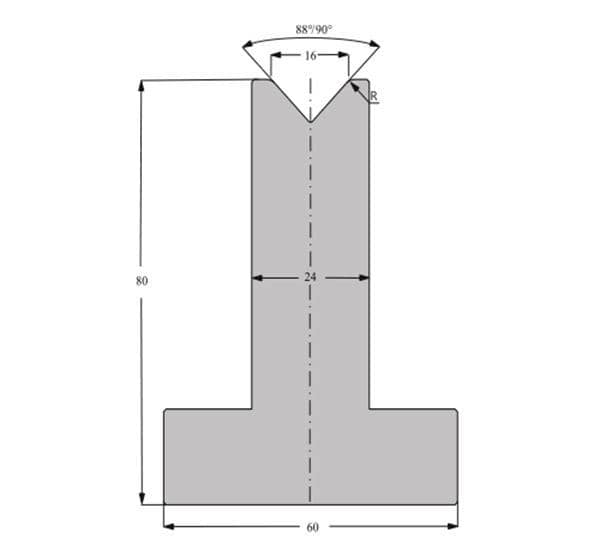

F 20.45/88/90(F=500KN/m Max)
Radius	2.5mm
Length	Weight
Width	60mm
Standard Length415mm	8.13KG
Standard Length835mm	16.37KG

Inquiry

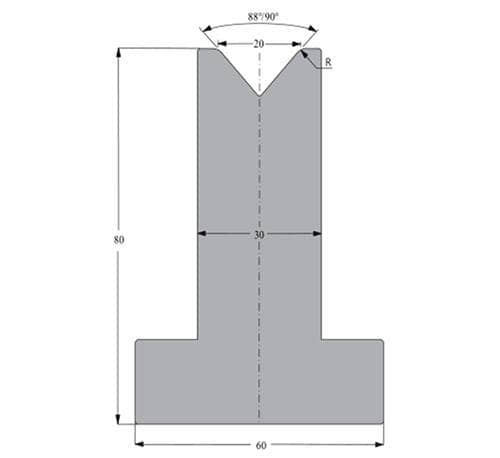

F 20.46/88/90(F=800KN/m Max)
Radius	3mm
Length	Weight
Width	60mm
Standard Length415mm	9.21KG
Standard Length835mm	18.54KG

Inquiry

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
