60 Degree Dies, 80mm | Press Brake Tooling

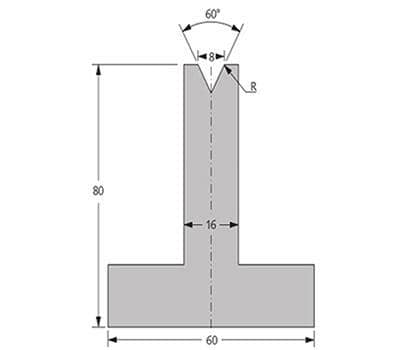

60° Dies, H=80mm, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

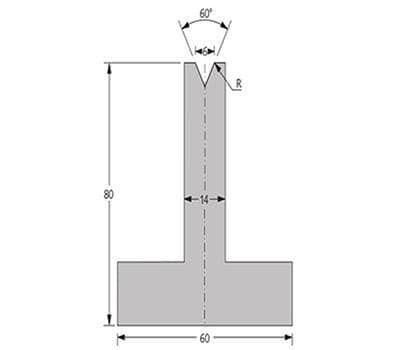

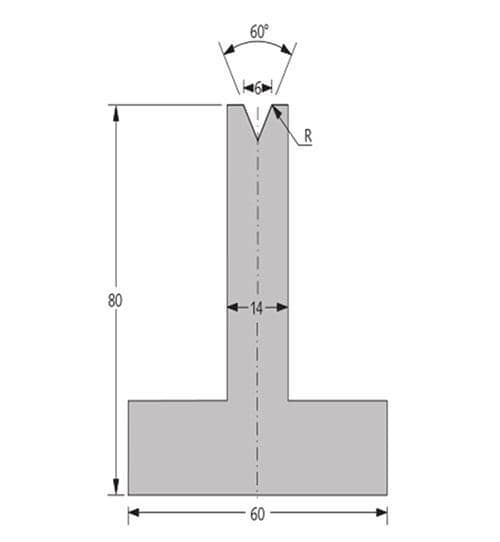

F 20.41/60(F=500KN/m Max)
Radius	0.5mm
Length	Weight
Width	60mm
Standard Length415mm	6.23KG
Standard Length835mm	12.53KG

Inquiry

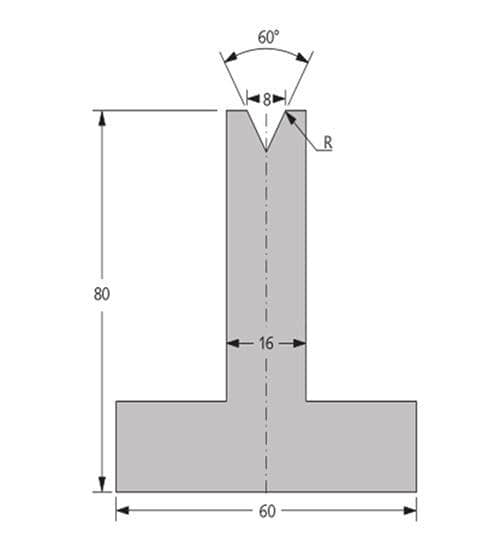

F 20.42/60(F=400KN/m Max)
Radius	0.8mm
Length	Weight
Width	60mm
Standard Length415mm	6.64KG
Standard Length835mm	13.36KG

Inquiry

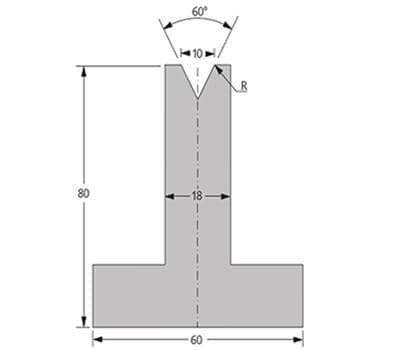

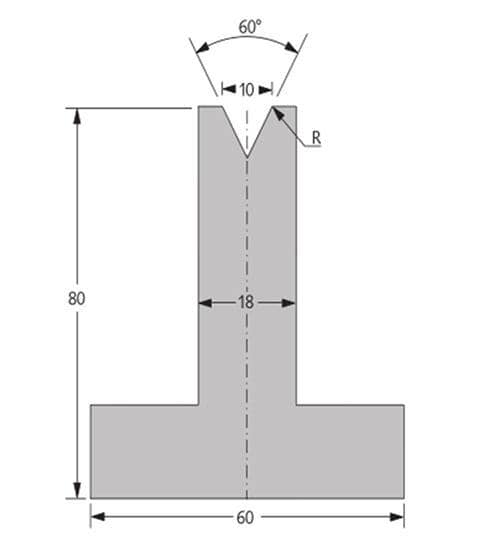

F 20.43/60(F=450KN/m Max)
Radius	1mm
Length	Weight
Width	60mm
Standard Length415mm	6.97KG
Standard Length835mm	14.03KG

Inquiry

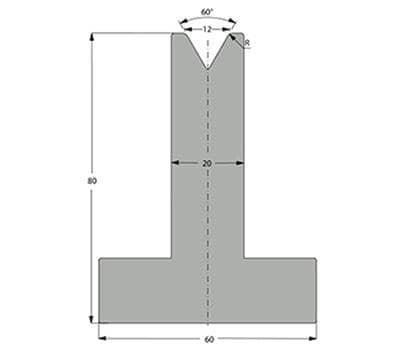

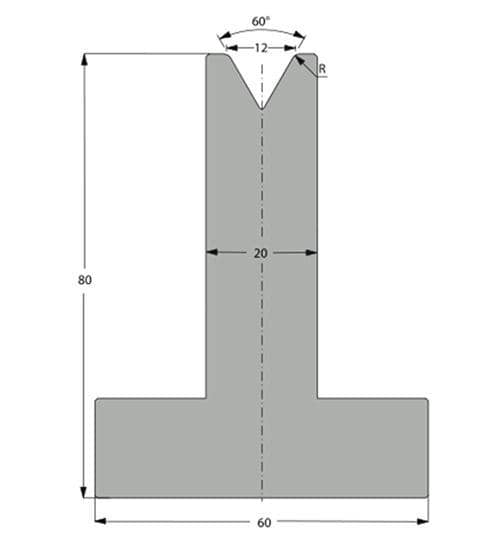

F 20.44/60(F=450KN/m Max)
Radius	1.5mm
Length	Weight
Width	60mm
Standard Length415mm	6.93KG
Standard Length835mm	13.94KG

Inquiry

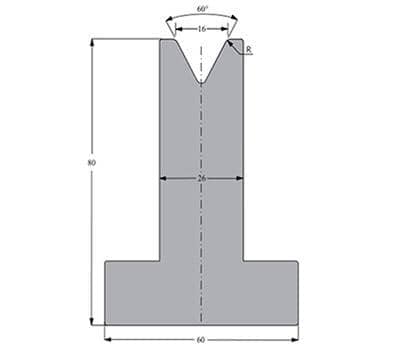

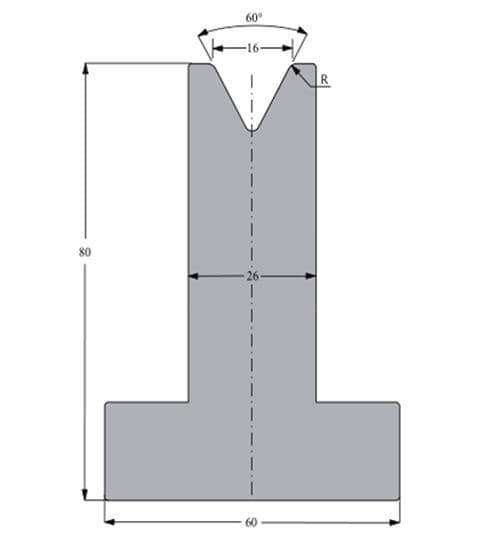

F 20.45/60(F=500KN/m Max)
Radius	2mm
Length	Weight
Width	60mm
Standard Length415mm	8.38KG
Standard Length835mm	16.87KG

Inquiry

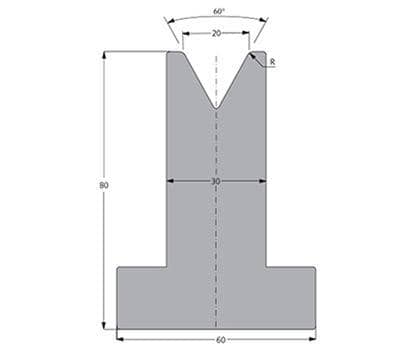

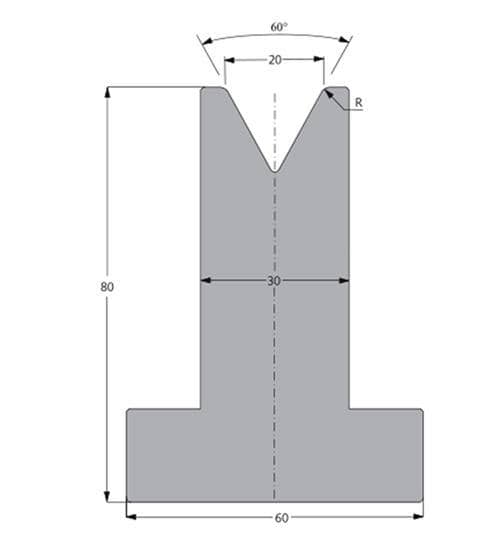

F 20.46/60(F=800KN/m Max)
Radius	2mm
Length	Weight
Width	60mm
Standard Length415mm	8.96KG
Standard Length835mm	18.04KG

Inquiry

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
