30 Degree Dies, 86mm | Press Brake Tooling

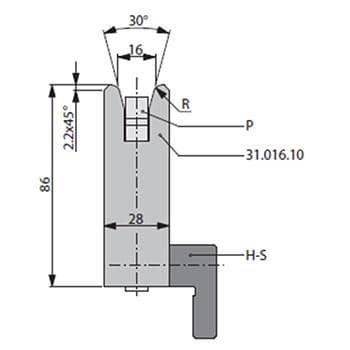

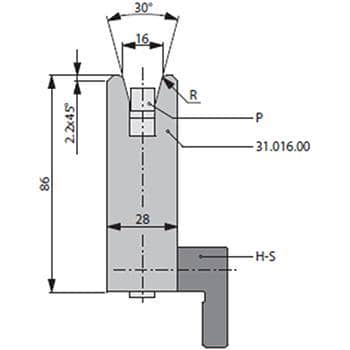

30° Dies, H=86mm, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

F 31.016(F=500KN/m Max)
Radius	2mm
Length	Weight
Width	28mm
Material Thickness	1.5mm-4.0mm
Standard Length100mm	2.14KG
Standard Length500mm	10.70KG

Inquiry
