30° Dies, H=90mm, Amada Press Brake Tooling

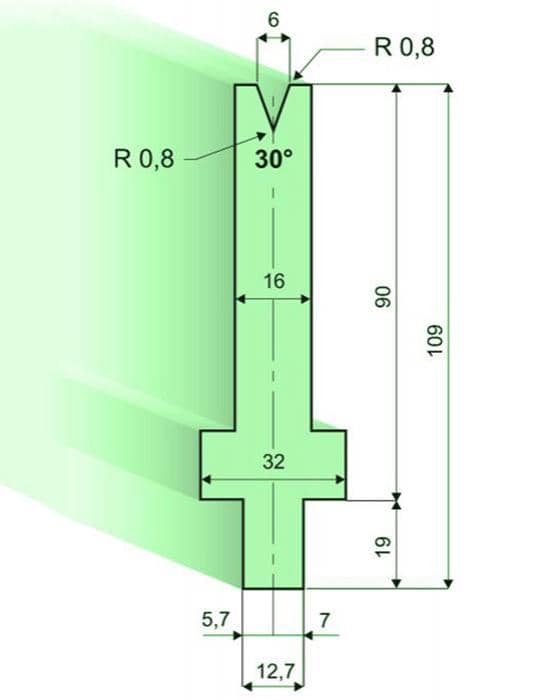

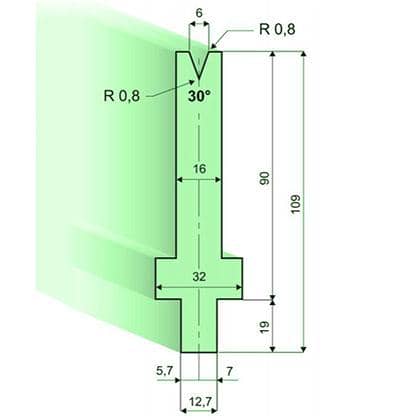

| F 26.306 (350KN/m Max) |
| 508mm | 8.0KG |
| Length | Weight |
| 550mm sectionalized | 8.7KG |

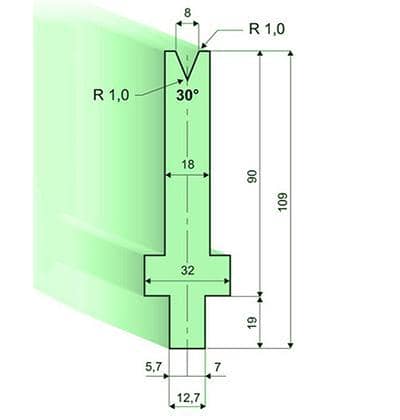

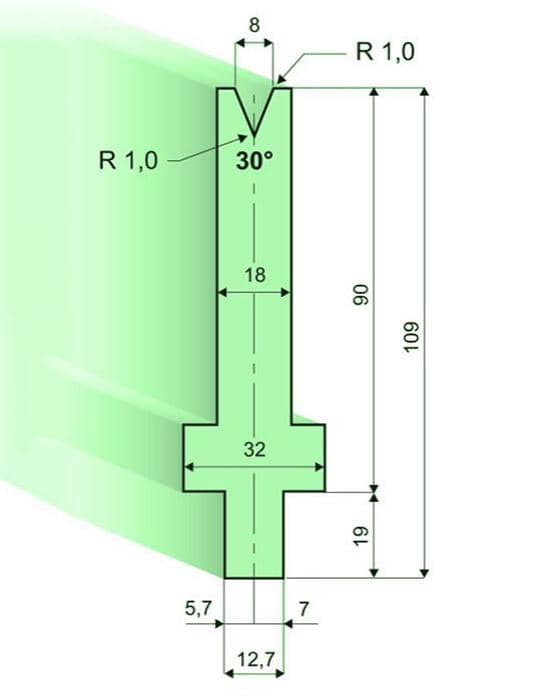

| F 26.308 (400KN/m Max) |
| 508mm | 9.5KG |
| Length | Weight |
| 550mm sectionalized | 10.3KG |

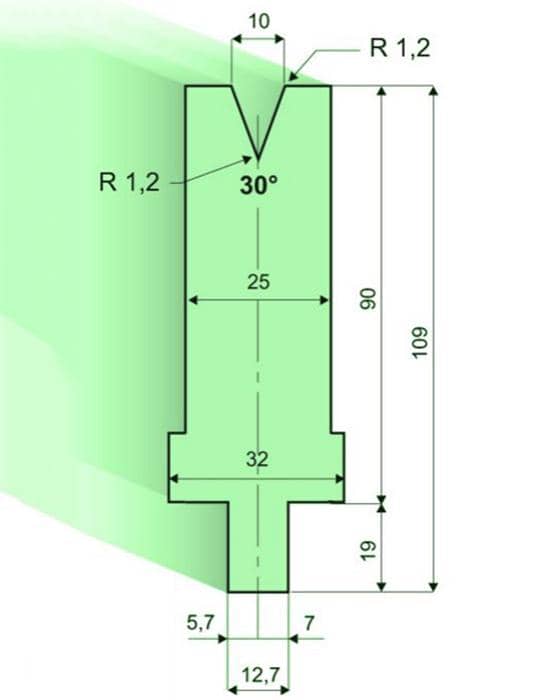

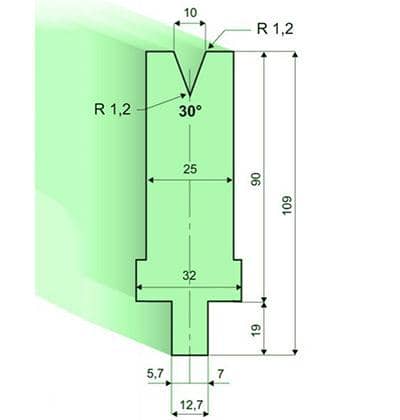

| F 26.310 (400KN/m Max) |
| 508mm | 10.0KG |
| Length | Weight |
| 550mm sectionalized | 10.8KG |

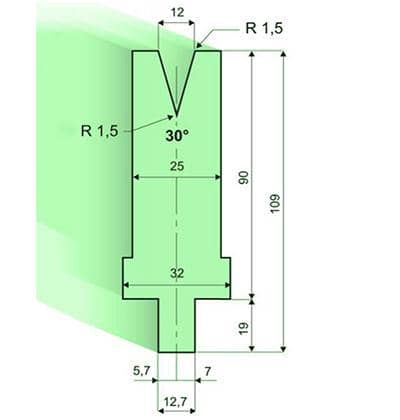

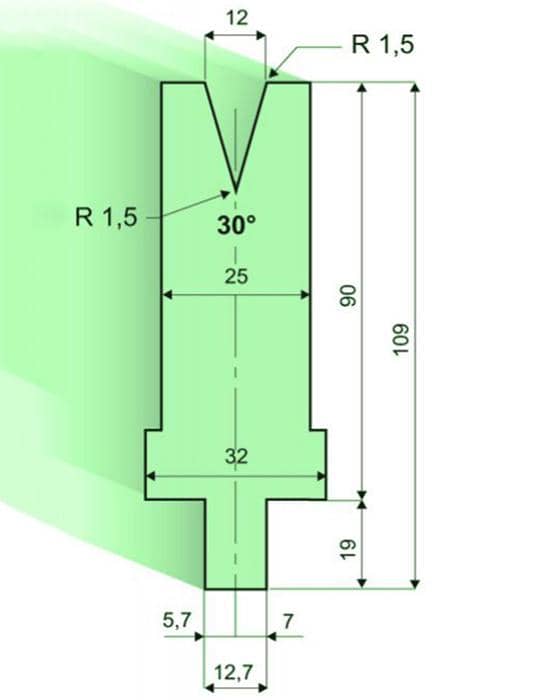

| F 26.312 (400KN/m Max) |
| 508mm | 9.5KG |
| Length | Weight |
| 550mm sectionalized | 10.3KG |

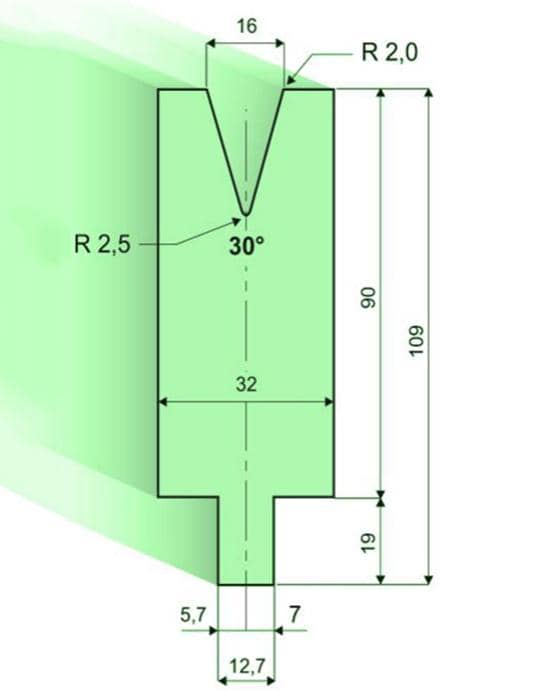

| F 26.316 (500KN/m Max) |
| 508mm | 14.3KG |
| Length | Weight |
| 550mm sectionalized | 15.5KG |

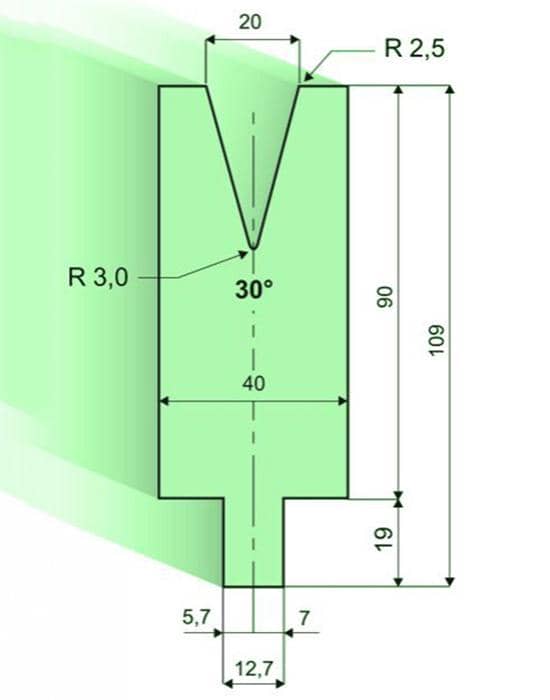

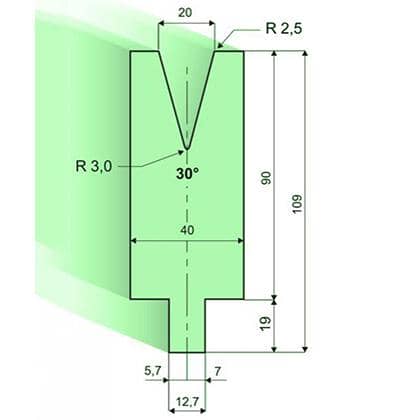

| F 26.320 (600KN/m Max) |
| 508mm | 12.0KG |
| Length | Weight |
| 550mm sectionalized | 13.0KG |

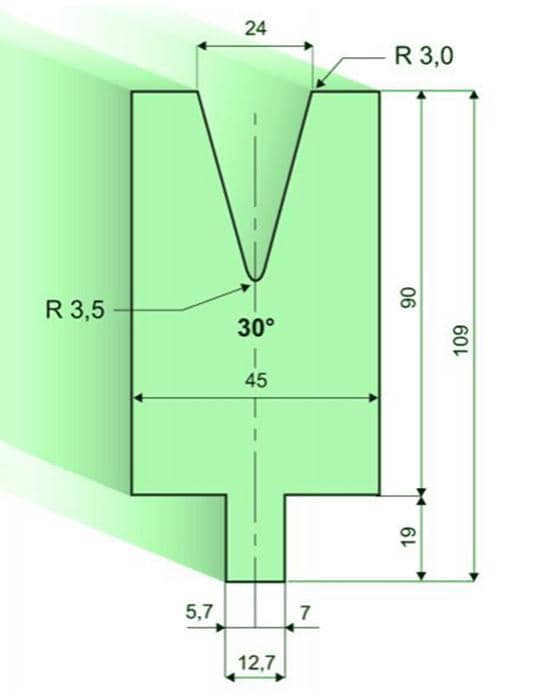

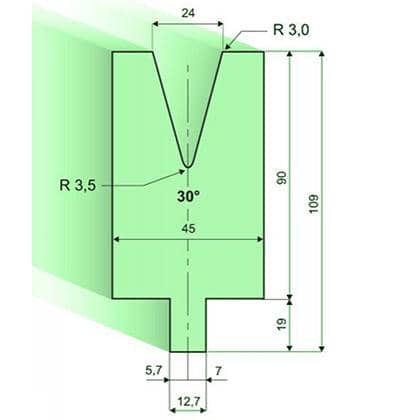

| F 26.324 (600KN/m Max) |
| 508mm | 15.0KG |
| Length | Weight |
| 550mm sectionalized | 16.2KG |
