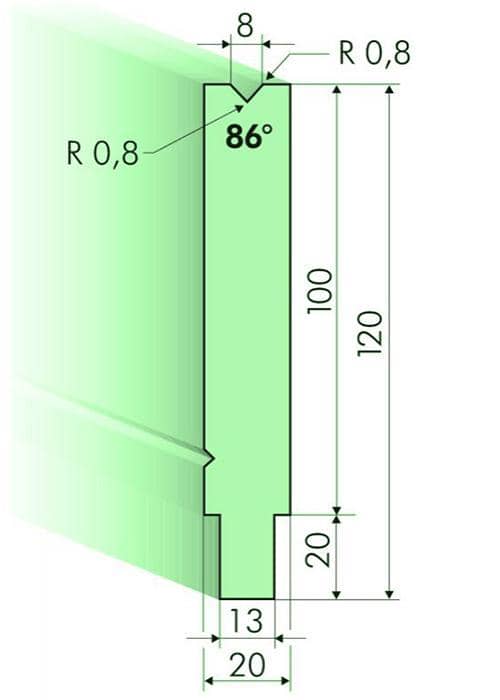

86° Dies, H=120mm, Amada Press Brake Tooling
| F 25.100 (300KN/m Max) |
| Length | Weight |
| 500mm | 4.5KG |
| 300mm | 2.7KG |
| 200mm | 1.8KG |
| 100mm | 0.9KG |
| 550mm sectionalized | 5.0KG |
| F 25.350 (250KN/m Max) |
| Length | Weight |
| 500mm | 4.5KG |
| 300mm | 2.7KG |
| 200mm | 1.8KG |
| 100mm | 0.9KG |
| 550mm sectionalized | 5.0KG |
| F 25.102 (1000KN/m Max) |
| Length | Weight |
| 500mm | 9.0KG |
| 300mm | 5.4KG |
| 200mm | 3.6KG |
| 100mm | 1.8KG |
| 550mm sectionalized | 9.9KG |
| F 25.103 (1000KN/m Max) |
| Length | Weight |
| 500mm | 9.0KG |
| 300mm | 5.4KG |
| 200mm | 3.6KG |
| 100mm | 1.8KG |
| 550mm sectionalized | 9.9KG |
| F 25.104 (1000KN/m Max) |
| Length | Weight |
| 500mm | 10.5KG |
| 300mm | 6.3KG |
| 200mm | 4.2KG |
| 100mm | 2.1KG |
| 550mm sectionalized | 11.6KG |
| F 25.106 (1000KN/m Max) |
| Length | Weight |
| 500mm | 12.5KG |
| 300mm | 7.5KG |
| 200mm | 5.0KG |
| 100mm | 2.5KG |
| 550mm sectionalized | 13.8KG |
