88 Degree Punch, Top Tools | Press Brake Tooling

88°Punches/top-tools, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

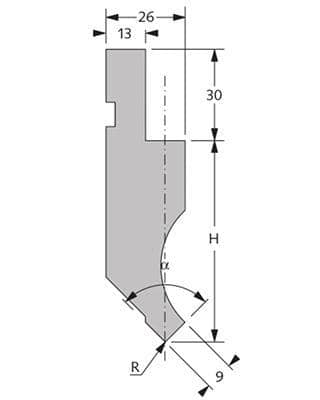

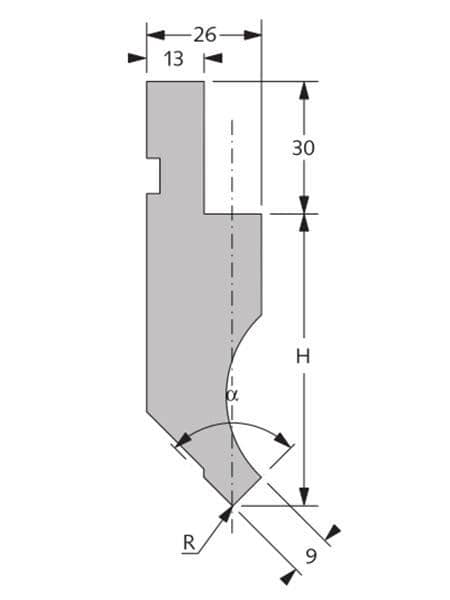

F 10.10(F=600KN/m Max)
Radius	0.2/0.8/3mm
Length	Weight
Width	26mm
Standard Length415mm	5.60KG
Standard Length835mm	11.27KG

Inquiry

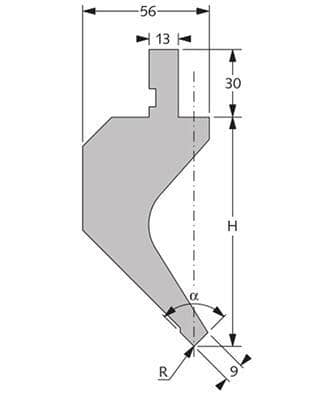

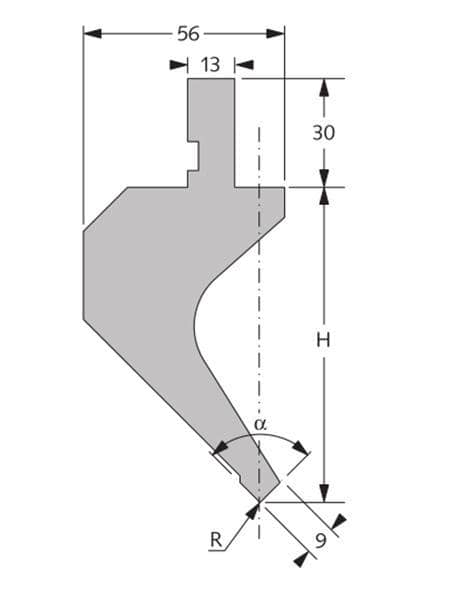

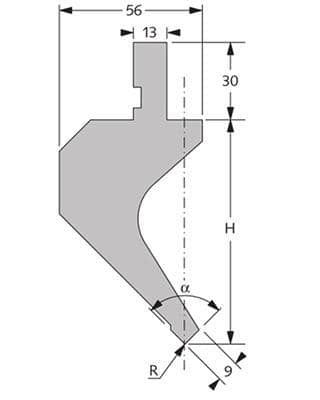

F 10.14(F=500KN/m Max)
Radius	0.2/0.8/3mm
Length	Weight
Width	56mm
Standard Length415mm	10.38KG
Standard Length835mm	20.88KG

Inquiry

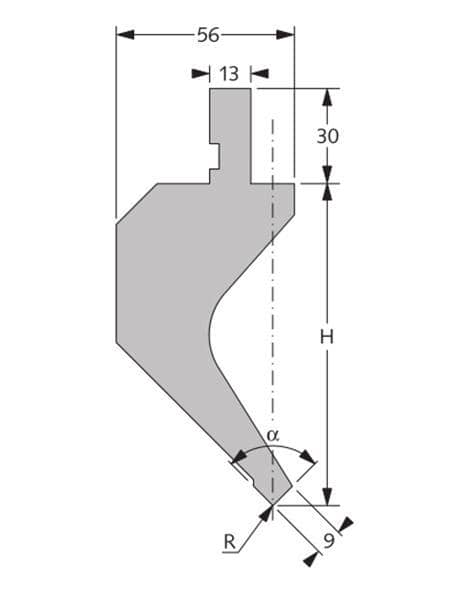

F 10.15(F=500KN/m Max)
Radius	0.2/0.8/3mm
Length	Weight
Width	56mm
Standard Length415mm	11.08KG
Standard Length835mm	22.29KG

Inquiry

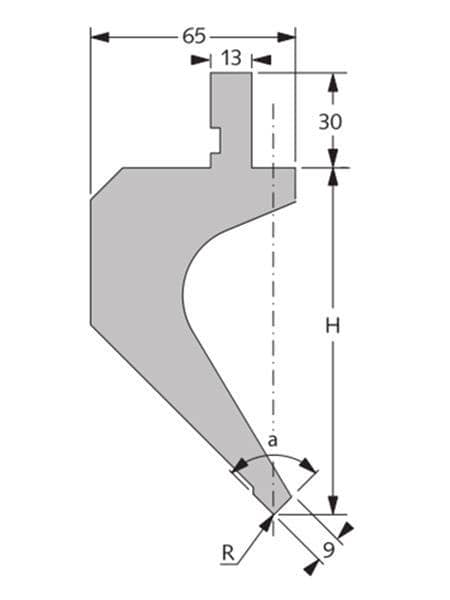

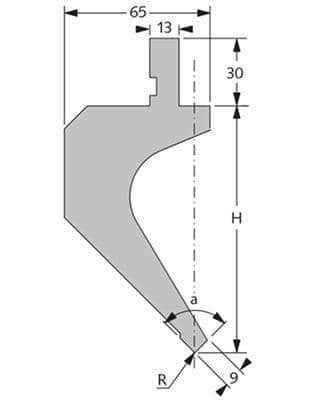

F 10.047(F=500KN/m Max)
Radius	0.2/0.8mm
Length	Weight
Width	65mm
Standard Length415mm	13.07KG
Standard Length835mm	26.30KG

Inquiry

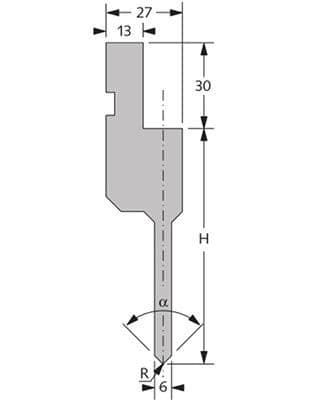

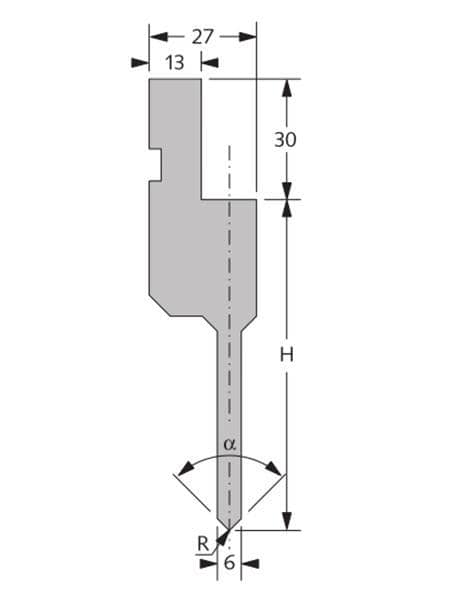

F 10.109(F=500KN/m Max)
Radius	0.2mm
Length	Weight
Width	27mm
Standard Length415mm	4.77KG
Standard Length835mm	9.60KG

Inquiry

F 10.116(F=200KN/m Max)
Radius	0.2mm
Length	Weight
Width	26mm
Standard Length415mm	4.98KG
Standard Length835mm	10.02KG

Inquiry

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
