86° Dies, H=150mm, Amada Press Brake Tooling

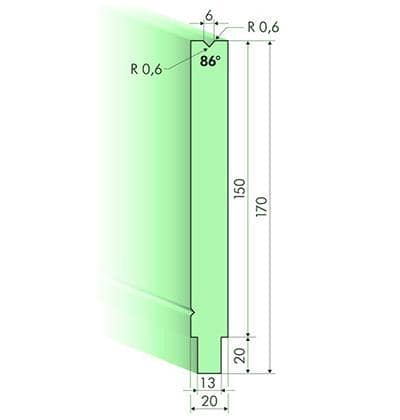

| F 25.601 (1000KN/m Max) |
| Length | Weight |
| 500mm | 12.5KG |
| 300mm | 7.5KG |
| 200mm | 5.0KG |
| 100mm | 2.5KG |
| 550mm sectionalized | 13.8KG |

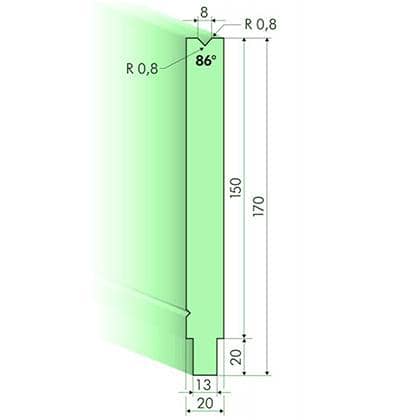

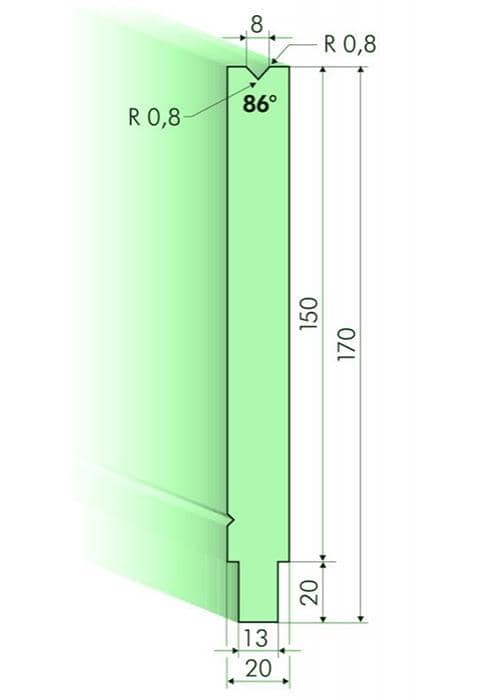

| F 25.602 (1000KN/m Max) |
| Length | Weight |
| 500mm | 12.5KG |
| 300mm | 7.5KG |
| 200mm | 5.0KG |
| 100mm | 2.5KG |
| 550mm sectionalized | 13.8KG |

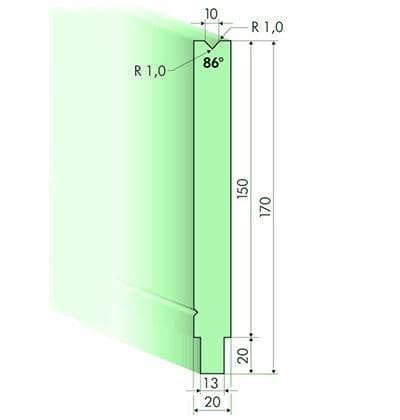

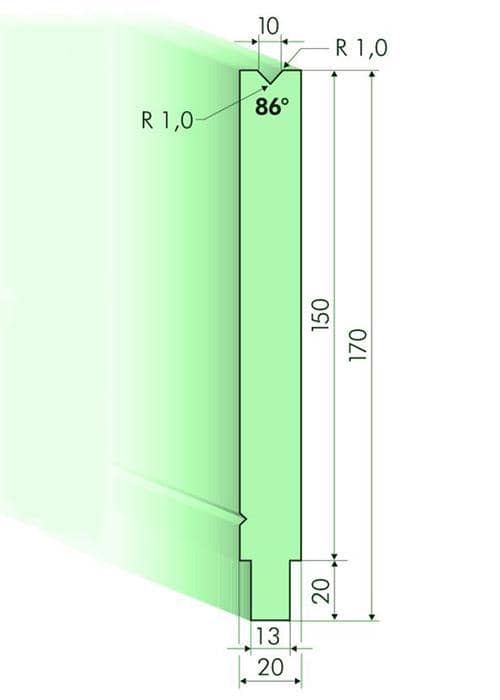

| F 25.603 (1000KN/m Max) |
| Length | Weight |
| 500mm | 12.5KG |
| 300mm | 7.5KG |
| 200mm | 5.0KG |
| 100mm | 2.5KG |
| 550mm sectionalized | 13.8KG |

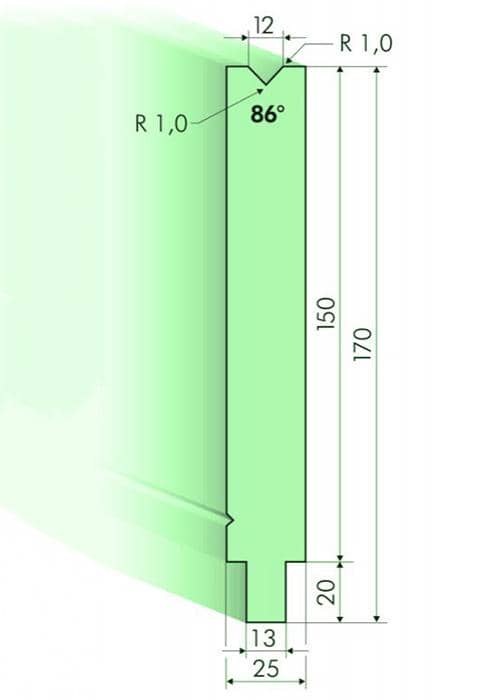

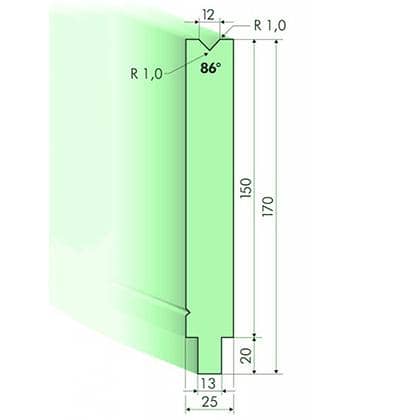

| F 25.604 (1000KN/m Max) |
| Length | Weight |
| 500mm | 15.5KG |
| 300mm | 9.3KG |
| 200mm | 6.2KG |
| 100mm | 3.1KG |
| 550mm sectionalized | 17.0KG |

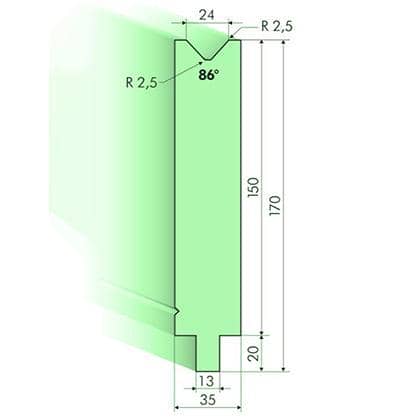

| F 25.607 (1000KN/m Max) |
| Length | Weight |
| 500mm | 21.0KG |
| 300mm | 12.6KG |
| 200mm | 8.4KG |
| 100mm | 4.2KG |
| 550mm sectionalized | 23.1KG |
