Radius Forming Dies, Amada Press Brake Tooling

Inquiry

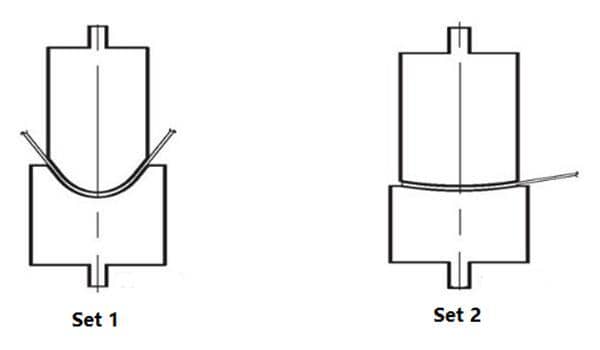

Set 1 is a radius forming die with a built in spring-back compensation, and is designed to form specific shapes with the highest precision.

Die set 2 is used for forming a large radius in multiple hits. This radius forming die may also be used to form a radius at the edge of the sheets prior to a rolling operation.

Inquiry

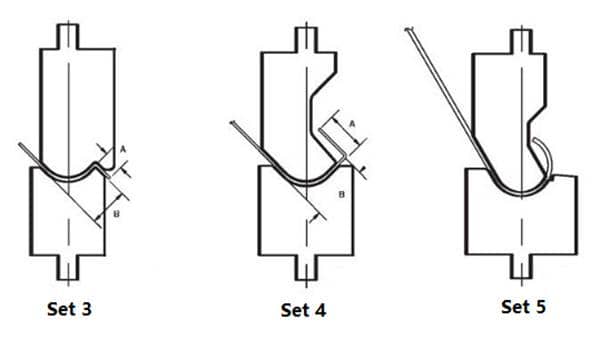

The die set 3 is designed to form a radius where an outside flange is formed in one hit due to the low material spring back.

Set 4 and set 5 feature gooseneck style radii punches. Set 4 is used for forming a radius with a performed return flange. Die set 5 is designed to form a sheet curl and a 200° radius in two hits.

As a press brake tooling solutions provider, Fangwei is committed to providing premium press brake toolings for sheet metal professionals all over the world. We offer an extensive selection of press brake toolings, shear blades, and other special tools used in press brakes and shears from major brands like LVD, Trumpf, Amada, Axial, Baykal, Boschert, Bystronic, Edward Pearson, Ermaksan, Femas, Fratelli Farina, GADE, Hammerle, Hesse, Hezinger, etc. As an experienced press brake tooling manufacturer, we can manufacture standard press brake toolings according to the relevant specifications of your press brake machines and shears. Upon request, custom production service is also available. Our advanced manufacturing equipment guarantees the preciseness of tools production processes from material feeding, forging, forming to polishing. Due to high quality, our products are highly praised by many sheet metal fabricators.
