American Precision Style Amada Press Brake Tooling

Overview

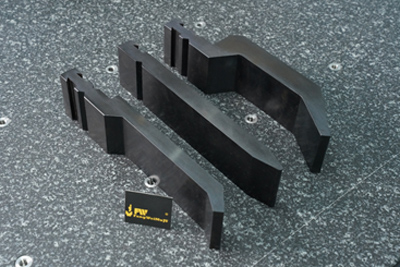

The Bystronic precision press brake tooling is an American style tooling, which is compatible with press brake machines from Bystronic-Beyeler RFA, Bystronic-Beyeler RF, Bystronic-Beyeler R and Bystronic-Beyeler S, etc.

Fangwei has a large number of inventories of Bystronic press brake tooling for customer to choose from. The following are common types of Bystronic press brake tooling. If you don’t find the press brake tools you need, please feel free to contact us.

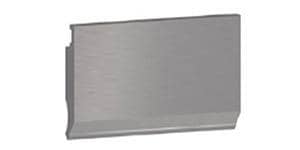

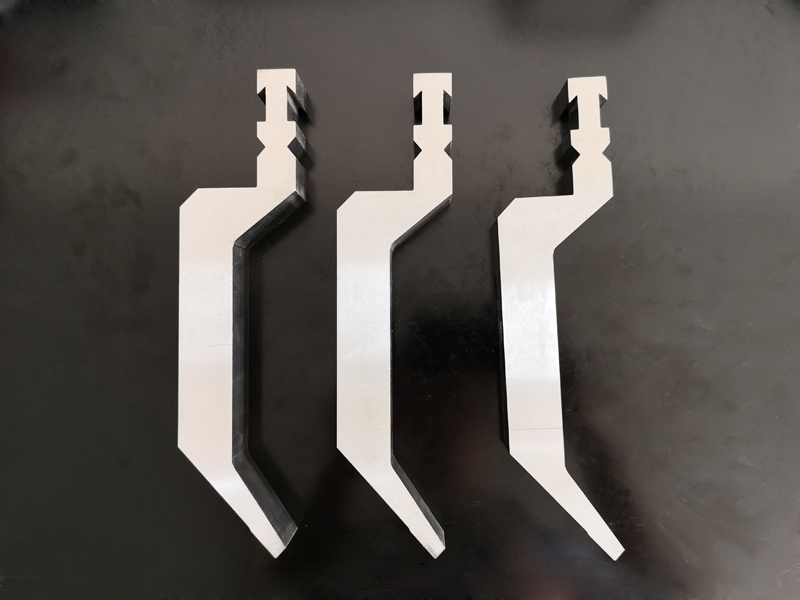

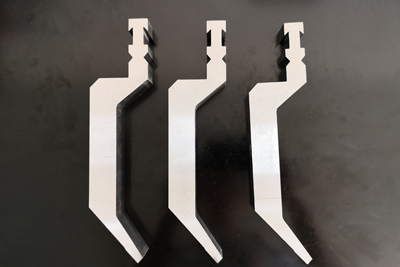

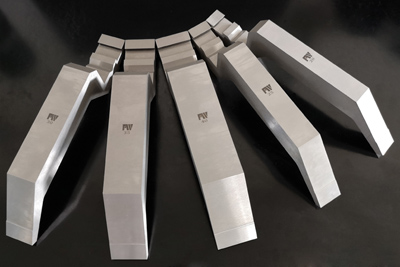

Punches

Dies

Advantages

  • Based on our rich experience in press brake tooling production, the following three optimum materials are recommended to satisfy your high quality requirements. Other materials can also be customized to fit your specific needs.
      42CrMo4, tempered to 1100 - 1200 N / mm2
      1.2312, tempered to 950 - 1100 N / mm2
      C45, tempered to 800 - 850 N / mm2
  • Bending radius and intake radius are hardened up to 45-50RC.
  • The Bystronic press brake tooling features high universality. After the length or bend angle is being adjusted or via the adapters, the press brake tooling is applicable on any other press brake machines.

Tool lengths

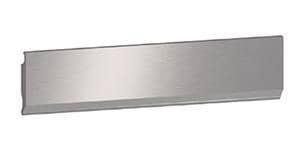

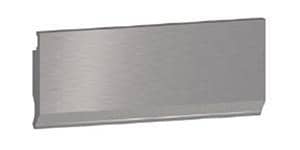

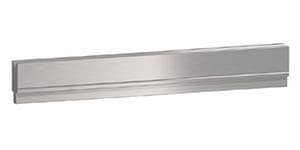

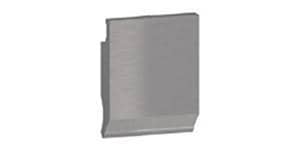

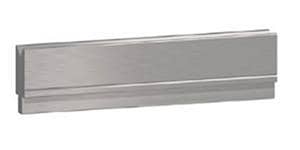

Punches/top-tools
  • Length 500 mm
  • Length 300 mm
  • Length 200 mm
  • Length 100 mm

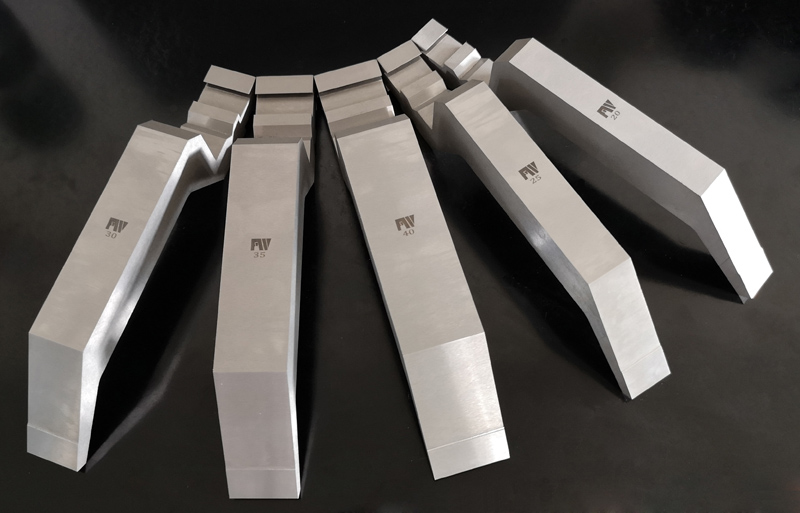

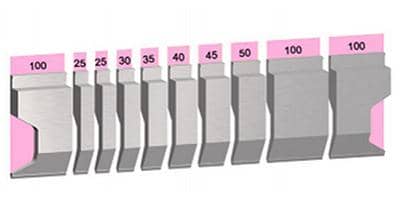

Sectionalized service is available. For example, length 500 mm punches can be sectionalized into 10 segments (100 mm, 25 mm, 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 100 mm, 100 mm). The punches can also be provided as a complete set.

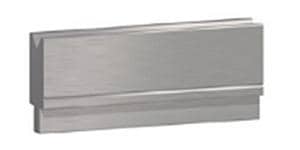

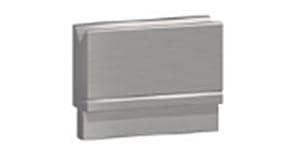

Dies
  • Length 508 mm
  • Length 300 mm
  • Length 200 mm
  • Length 100 mm

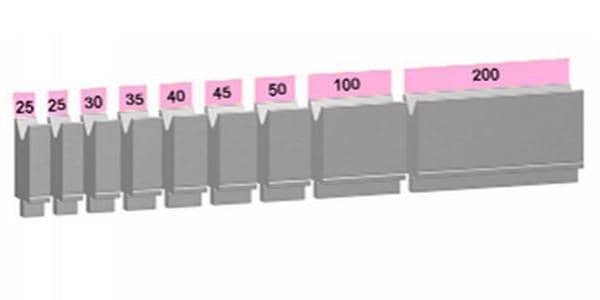

Dies sectionalized service is available. For example, length 550 mm dies can be sectionalized into 9 segments (25 mm, 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 100 mm, 200 mm). The dies can also be delivered as a complete set.

As a press brake tooling solutions provider, Fangwei is committed to providing premium press brake toolings for sheet metal professionals all over the world. We offer an extensive selection of press brake toolings, shear blades, and other special tools used in press brakes and shears from major brands like LVD, Trumpf, Amada, Axial, Baykal, Boschert, Bystronic, Edward Pearson, Ermaksan, Femas, Fratelli Farina, GADE, Hammerle, Hesse, Hezinger, etc. As an experienced press brake tooling manufacturer, we can manufacture standard press brake toolings according to the relevant specifications of your press brake machines and shears. Upon request, custom production service is also available. Our advanced manufacturing equipment guarantees the preciseness of tools production processes from material feeding, forging, forming to polishing. Due to high quality, our products are highly praised by many sheet metal fabricators.
