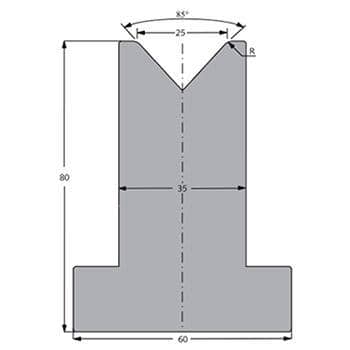

85° Dies, H=80mm, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

F 20.47/85(F=800KN/m Max)
Radius	3mm
Length	Weight
Width	60mm
Standard Length415mm	9.75KG
Standard Length835mm	19.62KG

Inquiry

F 20.11/85(F=800KN/m Max)
Radius	4mm
Length	Weight
Width	60mm
Standard Length415mm	10.75KG
Standard Length835mm	21.63KG

Inquiry

F 20.11/85(F=800KN/m Max)
Radius	4mm
Length	Weight
Width	60mm
Standard Length415mm	10.50KG
Standard Length835mm	21.13KG

Inquiry

F 20.11/85(F=800KN/m Max)
Radius	4mm
Length	Weight
Width	60mm
Standard Length415mm	9.34KG
Standard Length835mm	18.79KG

Inquiry

F 20.11/85(F=500KN/m Max)
Radius	5mm
Length	Weight
Width	80mm
Standard Length415mm	14.44KG
Standard Length835mm	29.06KG

Inquiry

F 20.11/85(F=500KN/m Max)
Radius	5mm
Length	Weight
Width	95mm
Standard Length415mm	16.60KG
Standard Length835mm	33.40KG

Inquiry

F 20.11/85(F=500KN/m Max)
Radius	8mm
Length	Weight
Width	115mm
Standard Length415mm	22.70KG
Standard Length835mm	45.67KG

Inquiry

F 20.11/85(F=500KN/m Max)
Radius	15mm
Length	Weight
Width	154mm
Standard Length415mm	33.62KG
Standard Length835mm	67.64KG

Inquiry

F 20.11/85(F=500KN/m Max)
Radius	15mm
Length	Weight
Width	185mm
Standard Length415mm	61.84KG
Standard Length835mm	124.42KG

Inquiry

F 20.09(F=500KN/m Max)
Radius	2mm
Length	Weight
Width	60mm
Standard Length415mm	7.89KG
Standard Length835mm	15.87KG

Inquiry

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
