90° Dies,H=86mm, Amada Press Brake Tooling

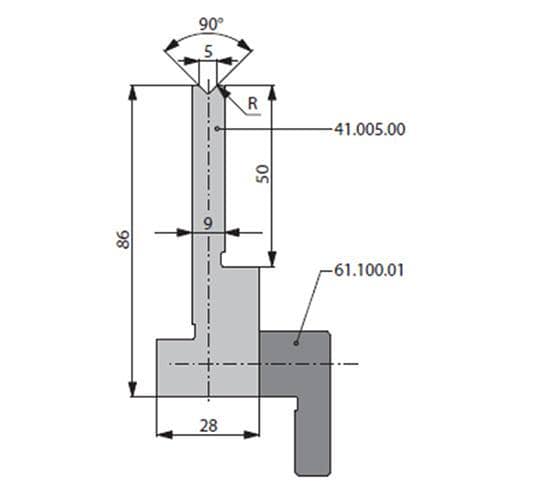

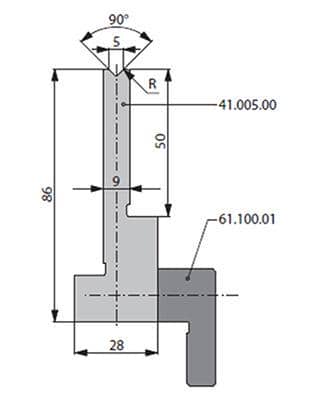

| F41.005.00(F=1000KN/m Max) | |
| Radius | 1mm |
| Length | Weight |
| Width | 28mm |
| Material Thickness | 0.5mm-1.0mm |
| Standard Length100mm | 0.94KG |
| Standard Length500mm | 4.70KG |

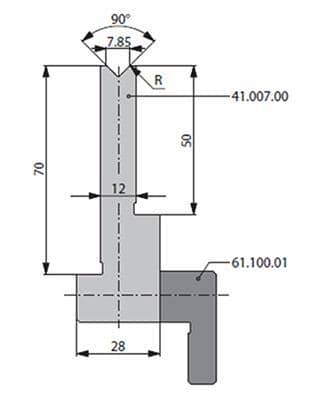

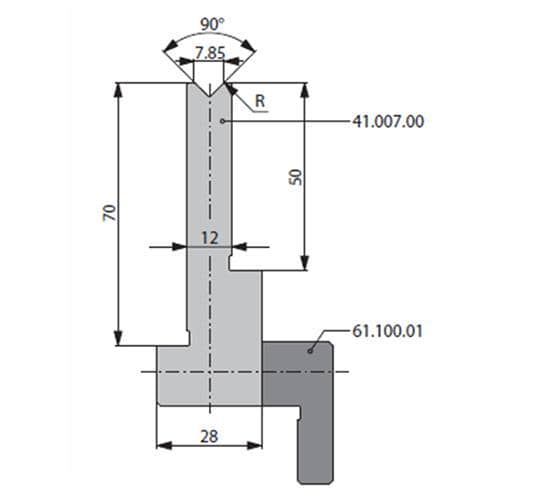

| F 41.007.00(F=1000KN/m Max) | |
| Radius | 1mm |
| Length | Weight |
| Width | 28mm |
| Material Thickness | 0.4mm-1.5mm |
| Standard Length100mm | 1.12KG |
| Standard Length500mm | 5.60KG |

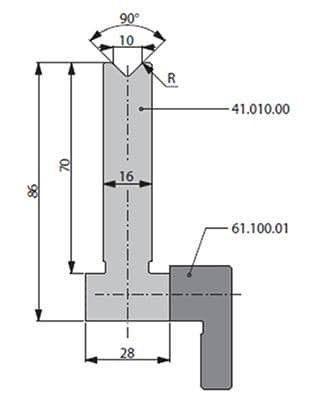

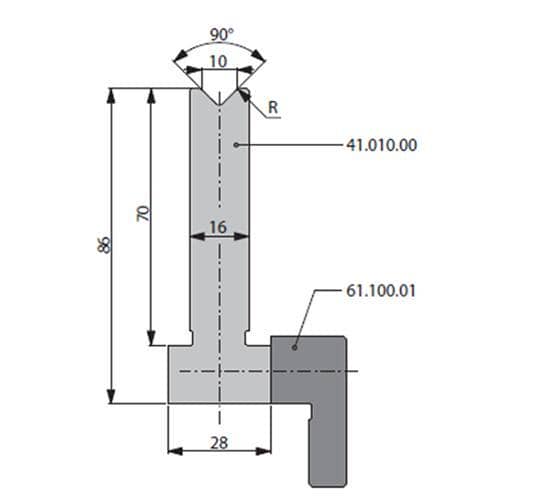

| F 41.010.00(F=1000KN/m Max) | |
| Radius | 1mm |
| Length | Weight |
| Width | 28mm |
| Material Thickness | 1.0mm-2.0mm |
| Standard Length100mm | 1.22KG |
| Standard Length500mm | 6.10KG |

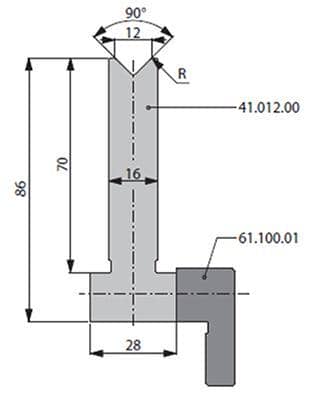

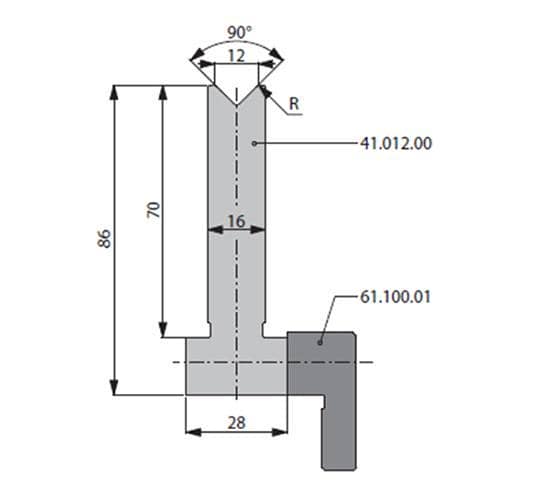

| F 41.012.00(F=1000KN/m Max) | |
| Radius | 2mm |
| Length | Weight |
| Width | 28mm |
| Material Thickness | 1.0mm-2.5mm |
| Standard Length100mm | 1.20KG |
| Standard Length500mm | 6.00KG |
