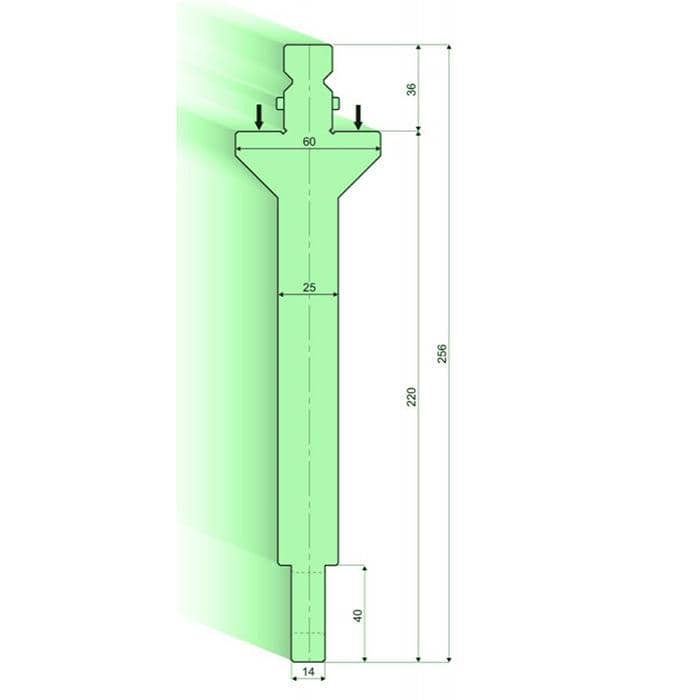

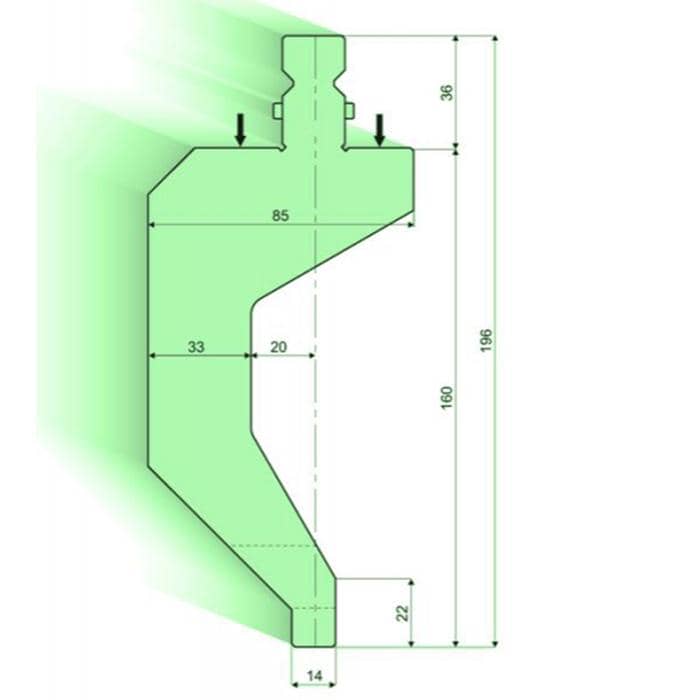

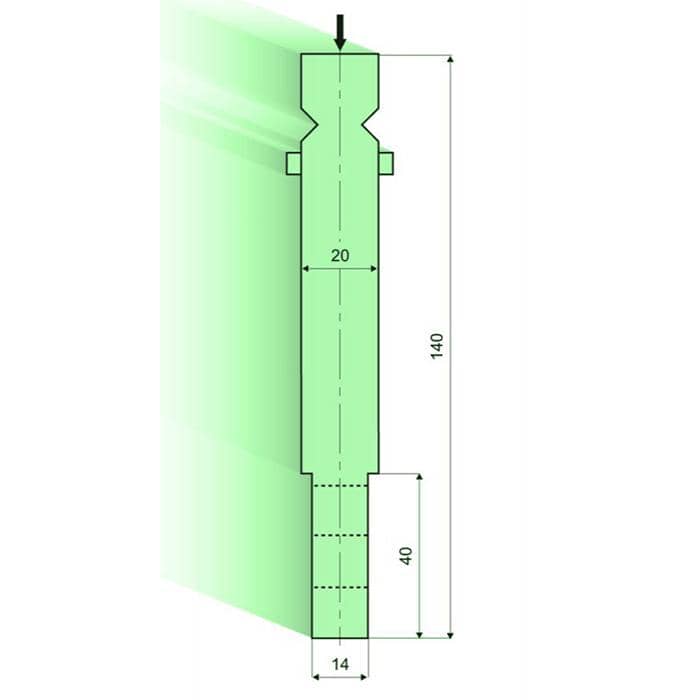

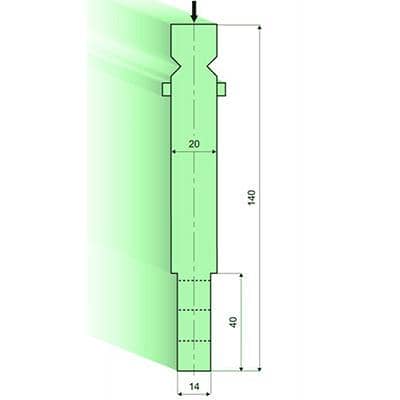

Holder for radius-tools and radius-tools R 7-50, Amada Press Brake Tooling
| F 15.010 (800KN/m Max) |
| Length | Weight |
| 835mm | 16.0KG |
| 412mm | 8.0KG |
| F 15.018 (800KN/m Max) |
| Length | Weight |
| 835mm | 41.0KG |
| 415mm | 20.5KG |
| F 15.014 (800KN/m Max) |
| Length | Weight |
| 835mm | 47.0KG |
| 415mm | 23.5KG |
| Model |
R(mm) |
H(mm) |
835mm |
415mm |

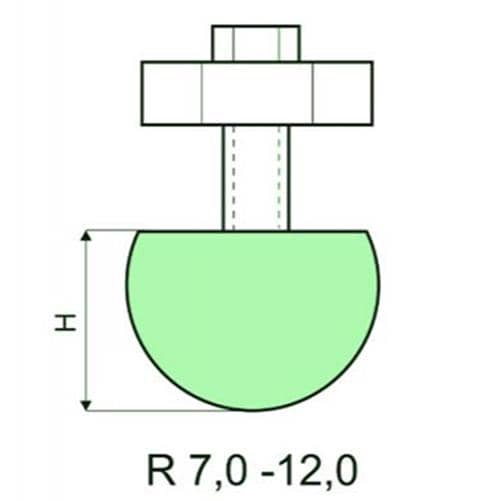

| F10.300 |
7.0 |
11.5 |
0.90kg |
0.45kg |
| F10.301 |
7.5 |
11.5 |
1.00kg |
0.50kg |
| F10.302 |
8.0 |
13.0 |
1.20kg |
0.60kg |
| F10.303 |
9.0 |
16.0 |
1.60kg |
0.80kg |
| F10.304 |
10.0 |
16.0 |
2.00kg |
1.00kg |
| F10.305 |
11.0 |
16.0 |
2.10kg |
1.05kg |
| F10.306 |
11.5 |
19.0 |
2.50kg |
1.25kg |
| F10.307 |
12.0 |
20.0 |
2.70kg |
1.35kg |
| Model |
R(mm) |
H(mm) |
835mm |
415mm |

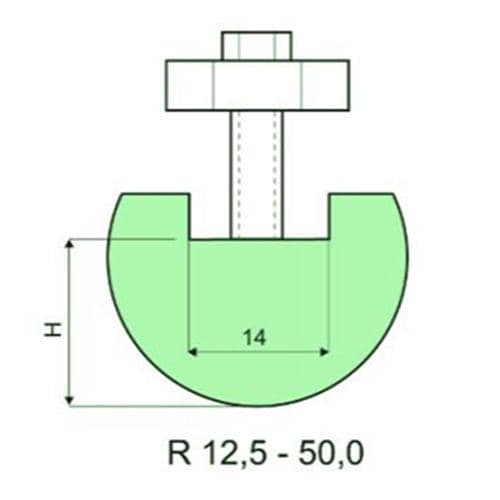

| F10.308 |
12.5 |
16.0 |
3.30Kg |
1.65kg |
| F10.309 |
13.0 |
17.0 |
3.50kg |
1.75kg |
| F10.310 |
14.0 |
19.0 |
3.80kg |
1.90kg |
| F10.311 |
15.0 |
20.0 |
5.00kg |
2.50kg |
| F10.312 |
16.0 |
21.0 |
5.10kg |
2.55kg |
| F10.313 |
17.0 |
21.5 |
5.80kg |
2.90kg |
| F10.314 |
17.5 |
22.0 |
6.00kg |
3.00kg |
| F10.315 |
19.0 |
25.0 |
6.30kg |
3.15kg |
| F10.316 |
20.0 |
24.0 |
6,80kg |
3.40kg |
| F10.317 |
22.5 |
25.0 |
8.00kg |
4.00kg |
| F10.318 |
25,0 |
29.0 |
10.00kg |
5.00kg |
| F10.319 |
27.5 |
34.0 |
12.50kg |
6.25kg |
| F10.320 |
30.0 |
34.0 |
13.50kg |
6.75kg |
| F10.321 |
35.0 |
45.0 |
21.00kg |
10.50kg |
| F10.322 |
40.0 |
45.0 |
24.00kg |
12.00kg |
| F10.323 |
45.0 |
50.0 |
29.50Kg |
14.75kg |
| F10.324 |
50.0 |
54.0 |
34.50kg |
17.25kg |
