Radius Tool Holder | Press Brake Tooling

Holder for radius-tools and radius-tools R 7mm-50mm, Amada Press Brake Tooling

Need specific tooling that’s not listed? Leave your contact details, and our experts will assist you with a customized technical solution, at no additional cost.

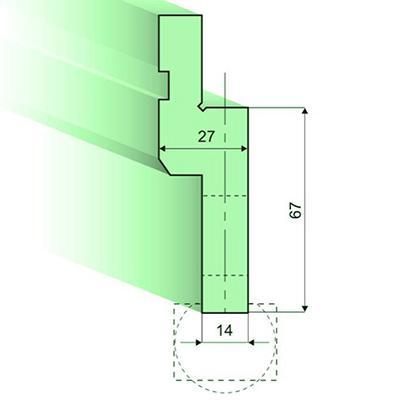

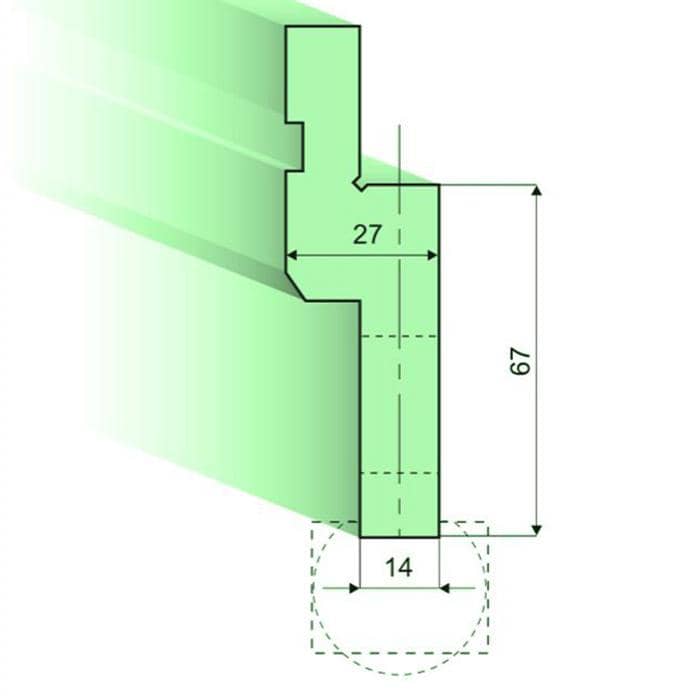

F 10.115(800KN/m Max)
Length	Weight
835mm	10.0KG
415mm	5.0KG

Inquiry

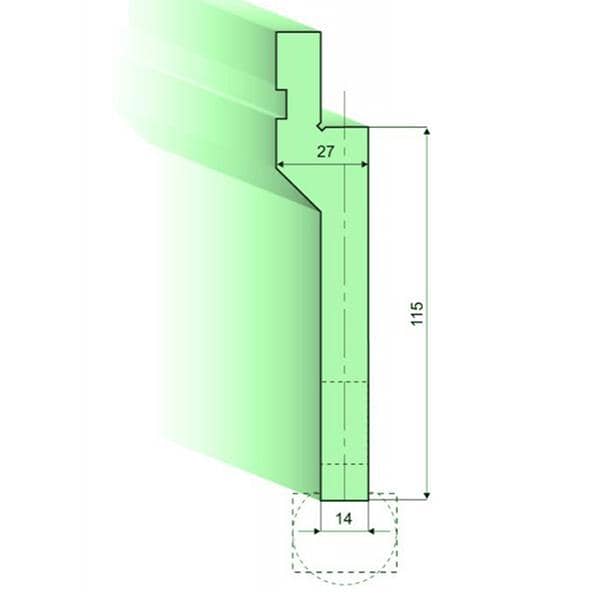

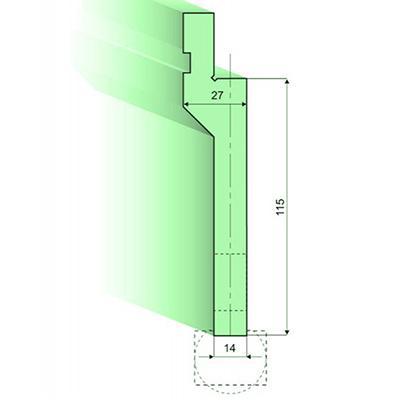

F 10.116(800KN/m Max)
Length	Weight
835mm	14.0KG
415mm	7.0KG

Inquiry

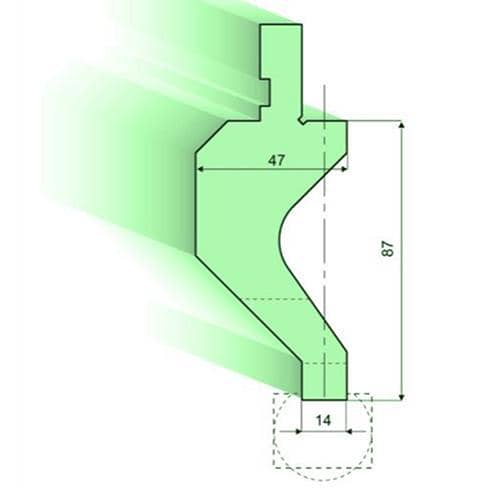

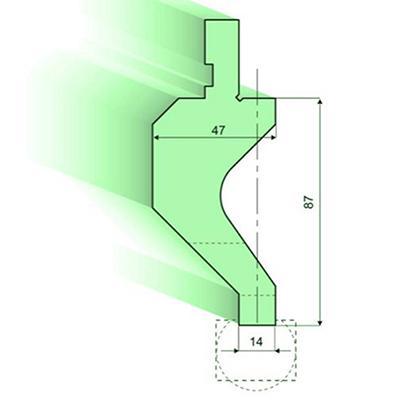

F 10.190(800KN/m Max)
Length	Weight
835mm	16.0KG
415mm	8.0KG

Inquiry

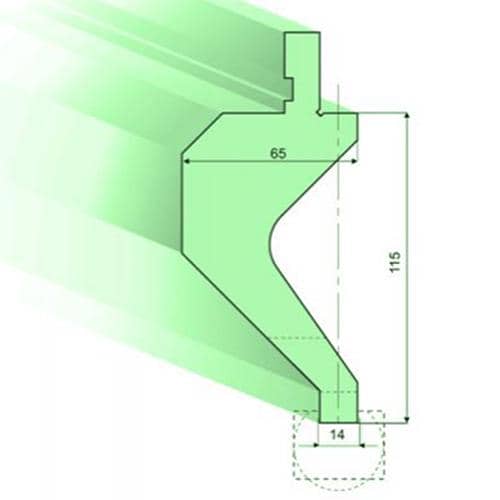

A10.191(800KN/m Max)
Length	Weight
835mm	26.0KG
415mm	13.0KG

Inquiry

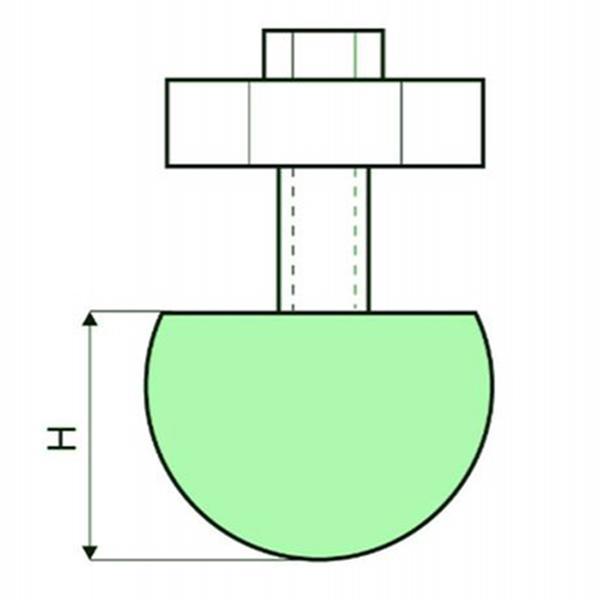

R7.0-12.0
Model	R(mm)	H(mm)	835mm	419mm
F10.300	7	11.5	0.90kg	0.45kg
F10.301	7.5	11.5	1.00kg	0.50kg
F10.302	8	13	1.20kg	0.60kg
F10.303	9	16	1.60kg	0.80kg
F10.304	10	16	2.00kg	1.00Kg
F10.305	11	16	2.10kg	1.05Kg
F10.306	11.5	19	2.50kg	1.25kg
F10.307	12	20	2.70kg	1.35kg

Inquiry

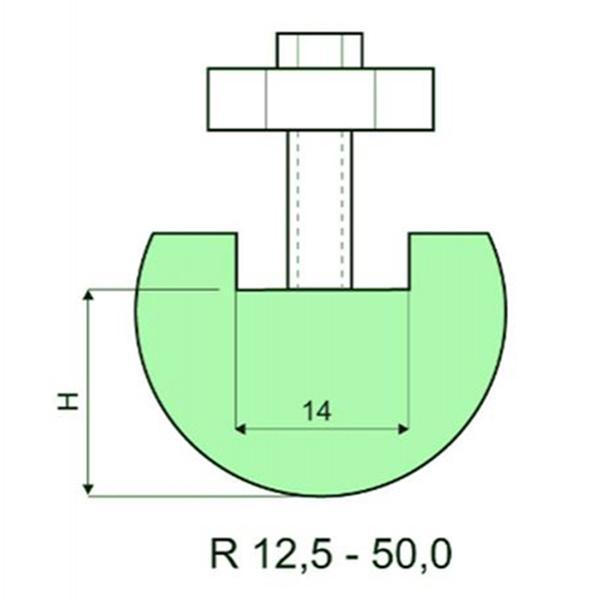

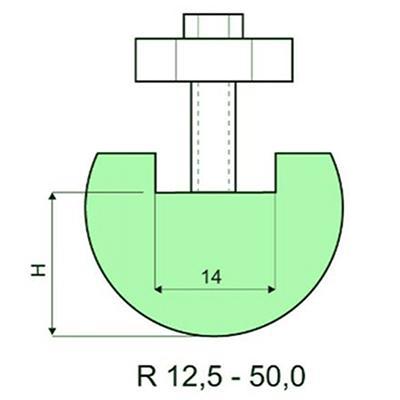

R12.5-50.0
Model	R(mm)	H(mm)	835mm	416mm
F10 308	12.5	16	3.30kg	1.65Kg
F10.309	13	17	3.50kg	1.75Kg
F10.310	14	19	3.80kg	1.90kg
F10.311	15	20	5.00kg	2.50kg
F10.312	16	21	5.10kg	2.55kg
F10.313	17	21.5	5.80kg	2.90Kg
F10.314	17.5	22,0	6.00kg	3.00kg
F10.315	19	25	6.30kg	3.15kg
F10.316	20	24	6.80kg	3.40kg
F10.317	22.5	25	8.00kg	4.00kg
F10.318	25	29	10.00kg	5.00Kg
F10.319	27.5	34	12.50kg	6.25kg
F10.320	30	34	13.50kg	6.75kg
F10.321	35	45	21.00Kg	10.50kg
F10.322	40	45	24.00Kg	12.00kg
F10.323	45	50	29.50kg	14.75kg
F10.324	50	54	34.50kg	17.25kg

Reach out to us to learn more about our press brake tooling, designed for precision and efficiency.
